K-System Parts
Compare K-System
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Rated voltage | Ambient temperature | Mass | Certificate |
|---|---|---|---|---|---|

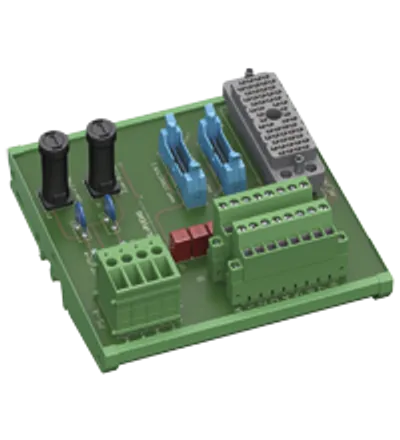

| FI-PFH-TR-AO-380X | 242606 | 25 ... 28 V DC SELV/PELV Ur | 0 ... 50 °C (32 ... 122 °F) | approx. 300 g | PF 11 CERT 1933 X |

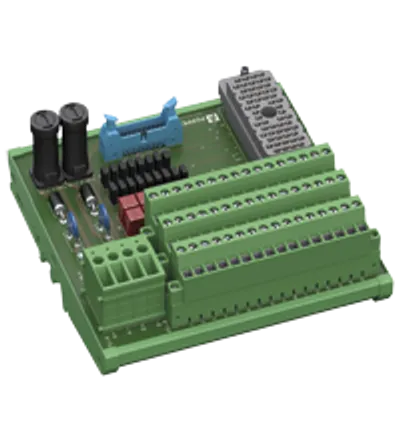

| FI-PFH-TR-AI-370X-GP | 226188 | 20.4 ... 27.6 V DC SELV/PELV Ur | 0 ... 50 °C (32 ... 122 °F) | approx. 415 g | PF 11 CERT 1931 X |

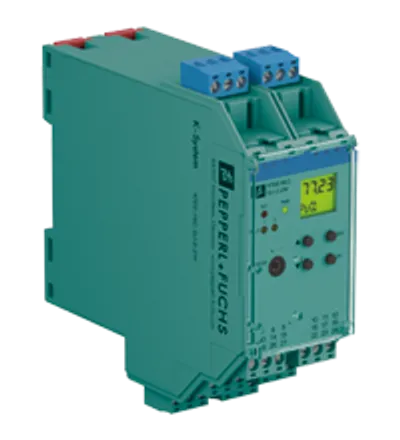

| KFD2-HLC-Ex1.D.2W | 261918 | 19 ... 30 V DC Ur | -20 ... 60 °C (-4 ... 140 °F) | 300 g | PF 07 CERT 1141 X |

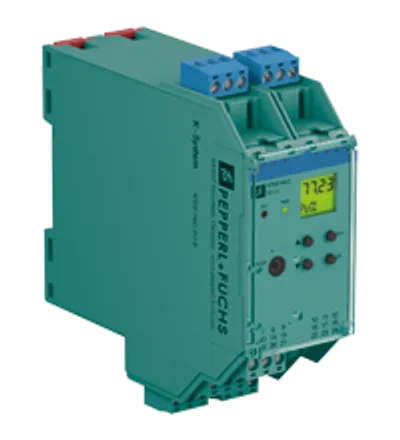

| KFD2-HLC-Ex1.D | 261916 | 19 ... 30 V DC Ur | -20 ... 60 °C (-4 ... 140 °F) | 300 g | PF 07 CERT 1142 X |

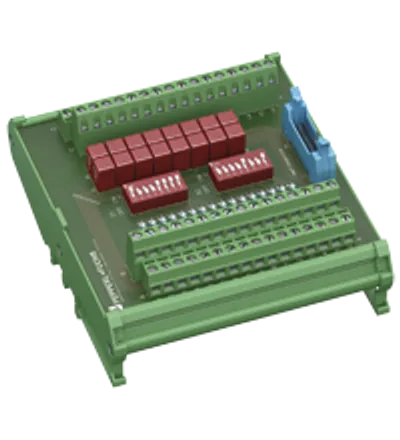

| FI-PFH-NS0137-R | 225293 | — | 0 ... 50 °C (32 ... 122 °F) | approx. 210 g | PF 11 CERT 1930 X |
| KFD0-HMS-16 | 231291 | — | -20 ... 65 °C (-4 ... 149 °F) | approx. 100 g | PF 07 CERT 1143 X |

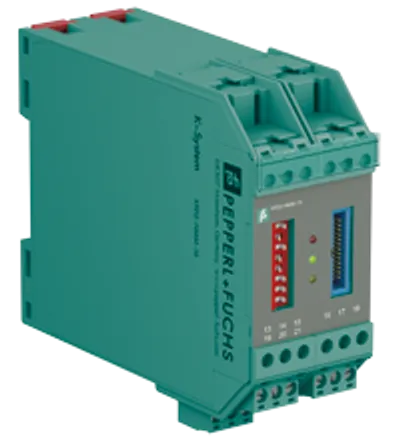

| KFD2-HMM-16 | 231289 | 20 ... 32 V DC typical at 100 mA Ur | -20 ... 60 °C (-4 ... 140 °F) | approx. 250 g | PF 07 CERT 1143 X |
Common to all listed parts
| Lifecycle | Active (current Pepperl+Fuchs product) |
| Electromagnetic compatibility: Directive 2014/30/EU | EN 61326-1:2013 (industrial locations) |
| Degree of protection | IEC 60529:2001 |
| Mounting | on 35 mm DIN mounting rail acc. to EN 60715:2001 |
