MPN	Order code (Pepperl+Fuchs part number)	Detection range	Black-white difference (6 %/90 %)	Diameter of the light spot	MTTFd
RLK23-8-H-500-RT/31/116	419484	50 ... 500 mm	< 5 %	12 mm at 500 mm sensor range	850 a
RL23-8-H-1000-IR/104/116/125	419442	50 ... 1000 mm	< 10 %	25 mm at 1000 mm sensor range	540 a
ML100-8-HGU-100-IR/102/115/162	820040	7 ... 100 mm	—	approx. 7 mm x 50 mm at 100 mm	860 a
OBT150-18GM60-E4	70113328-100129	10 ... 150 mm	< 10 % at 150 mm	approx. 6 mm at detection range 150 mm	1058 a
OBT150-18GK40-E0	70113328-100011	10 ... 150 mm	< 10 % at 150 mm	approx. 6 mm at detection range 150 mm	1734 a
OBD600-18GK40-E0	70113328-100009	0 ... 600 mm	—	approx. 40 mm at 600 mm	1289 a
OBD600-18GM60-E4	70113328-100124	0 ... 600 mm	—	approx. 40 mm at 600 mm	854 a

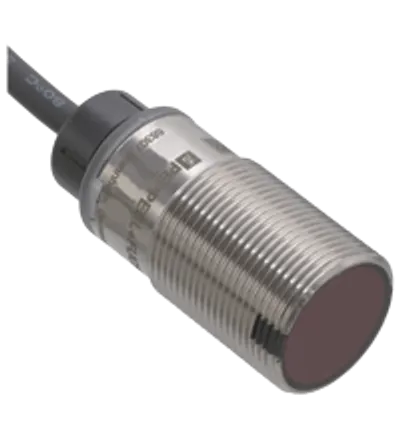

OBD600-18GM40-E0	70113328-100105	0 ... 600 mm	—	approx. 40 mm at 600 mm	1289 a
OBT150-18GM40-E0	70113328-100110	10 ... 150 mm	< 10 % at 150 mm	approx. 6 mm at detection range 150 mm	1734 a
OBT300-18GK40-E0	70113328-100094	10 ... 300 mm	< 40 % at 300 mm	approx. 16 mm at detection range 300 mm	1734 a

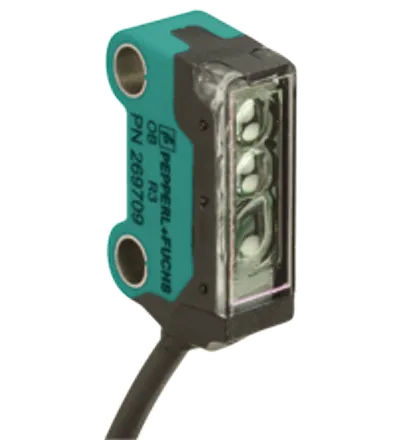

OBT80-R3-E0-P-L	70141927	20 ... 80 mm	< 15 % at 80 mm	approx. 2 mm at a distance of 80 mm	800 a
OBT80-R2-E0-P-L	70141925	20 ... 80 mm	< 15 % at 80 mm	approx. 2 mm at a distance of 80 mm	800 a
OBT80-R3-E0-P	70141917	15 ... 80 mm	< 20 %	approx. 5 mm at a distance of 80 mm	800 a
OBT80-R2-E0-P	70141915	15 ... 80 mm	< 20 %	approx. 5 mm at a distance of 80 mm	800 a
OBT50-R3-E0-P-L	70141907	7 ... 50 mm	< 10 % at 50 mm	approx. 0.8 mm at a distance of 50 mm	800 a
OBT50-R2-E0-P-L	70141905	7 ... 50 mm	< 10 % at 50 mm	approx. 0.8 mm at a distance of 50 mm	800 a
OBT50-R3-E0-P	70141894	3 ... 50 mm	< 15 % at 50 mm	approx. 3.5 mm at a distance of 50 mm	800 a
OBT50-R2-E0-P	70141892	3 ... 50 mm	< 15 % at 50 mm	approx. 3.5 mm at a distance of 50 mm	800 a
OBT30-R3-E0-P-L	70141883	7 ... 30 mm	< 5 % at 30 mm	< 1 mm at a distance of 30 mm	800 a
OBT30-R2-E0-P-L	70141881	7 ... 30 mm	< 5 % at 30 mm	< 1 mm at a distance of 30 mm	800 a
OBT30-R2-E0-P	70141868	1 ... 30 mm	< 7 % at 30 mm	approx. 2 mm at a distance of 30 mm	800 a
OBT15-R2-E0-P-L	70141858	7 ... 15 mm	< 3 % at 15 mm	approx. 1.5 mm at a distance of 15 mm	800 a
OBT15-R3-E0-P	70141851	2 ... 15 mm	< 5 % at 15 mm	approx. 2 mm at a distance of 15 mm	800 a
OBT15-R2-E0-P	70141849	2 ... 15 mm	< 5 % at 15 mm	approx. 2 mm at a distance of 15 mm	800 a

Common to all listed parts

Lifecycle	Active (current Pepperl+Fuchs product)
Product standard	EN 60947-5-2
