Diffuse Mode Sensors Parts
Compare Diffuse Mode Sensors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Detection range | Adjustment range | MTTFd | Response time |
|---|---|---|---|---|---|
| OBT650-R200-2EP-IO-V1 | 295670-100112 | 10 ... 650 mm | 100 ... 650 mm | 600 a | 1 ms |
| OBT600-R200-2EP-IO-V1-L | 295670-100228 | 40 ... 600 mm | 90 ... 600 mm | 560 a | 300 µs |
| ML100-8-H-250-RT/102/115 | 818864 | 5 ... 250 mm | 30 ... 250 mm | 860 a | 500 µs |
| OQD8000-R300-2EP-V1-L | 254269 | 0.03 ... 8 m | 0.05 ... 8 m | 100 a | 5 ms |
| OBT300-R101-2EP-IO-V31-L | 267075-0061 | 7 ... 300 mm | 25 ... 300 mm | 560 a | 300 µs |
| OBT300-R100-2EP-IO-V31-L | 267075-0059 | 7 ... 300 mm | 25 ... 300 mm | 560 a | 300 µs |
| ML100-8-H-100-RT/102/115 | 814649 | 5 ... 100 mm | 25 ... 100 mm | 860 a | 0.5 ms |
| ML100-8-H-100-RT/95/103 | 814648 | 5 ... 100 mm | 25 ... 100 mm | 860 a | 0.5 ms |
| ML100-8-HGU-100-RT/102/115/162 | 815410 | 10 ... 100 mm | 30 ... 100 mm | 860 a | 1 ms |
| OBT350-R100-2EP-IO-V31 | 267075-0058 | 5 ... 350 mm | 25 ... 350 mm | 600 a | 1 ms |

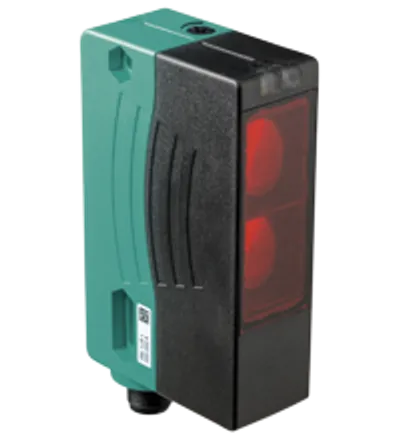

| OBD8000-R300-2PP-V1-L | 254264 | 0.03 ... 8 m | 0.05 ... 8 m | 100 a | 5 ms |
| ML100-8-W-200-RT/95/103 | 235961 | 0 ... 200 mm | 15 ... 200 mm | 860 a | 0.5 ms |
| ML100-8-W-200-RT/102/115 | 232186 | 0 ... 200 mm | 15 ... 200 mm | 860 a | 0.5 ms |
| ML100-8-H-100/115/127/162 | 243928 | 20 ... 100 mm | 25 ... 100 mm | 1100 a | 1 ms |
| ML100-8-H-200-IR/102/115 | 291793 | 5 ... 200 mm | 30 ... 200 mm | 860 a | 1 ms |
| OMT100-R100-2EP-IO-V31-L | 267075-100084 | — | — | 560 a | 2 ms |
| OMT50-R100-2EP-IO-V31-L | 267075-100189 | — | — | 560 a | 2 ms |
| RL29-8-H-1200-RT/73c/136 | 801769 | 30 ... 1200 mm , adjustable | — | 720 a | 4 ms |
| RLK39-8-2000-Z/31/40a/116 | 088828 | 0 ... 2000 mm | 200 ... 2000 mm | 803 a | ≤ 20 ms |
| RLK31-8-1200-RT/31/115 | 183068 | 0 ... 1200 mm adjustable | — | 790 a | ≤ 25 ms |
| RL31-8-1200-RT/73c/136 | 186473 | 0 ... 1200 mm adjustable | — | 920 a | ≤ 1 ms |
| RL31-8-2500-IR/73c/136 | 207544 | 0 ... 2500 mm adjustable | — | 920 a | ≤ 1 ms |
| RLK31-8-2500-IR/31/115 | 205234 | 0 ... 2500 mm adjustable | — | 790 a | ≤ 25 ms |
| ML100-8-H-350-RT/103/115b | 225030 | 5 ... 350 mm | 30 ... 350 mm | 860 a | 1 ms |
Common to all listed parts
| Lifecycle | Active (current Pepperl+Fuchs product) |
| Diagnostic Coverage (DC) | 0 % |
| Product standard | EN 60947-5-2 |
