Diffuse Mode Sensors Parts
Compare Diffuse Mode Sensors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Detection range | Detection range max. | Diameter of the light spot | Response time |
|---|---|---|---|---|---|
| RLK23-8-H-2000-IR/31/116 | 419492 | 50 ... 2000 mm | 50 ... 3000 mm | 50 mm at 2000 mm sensor range | 20 ms |

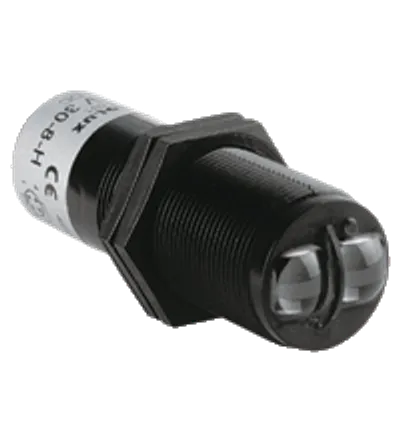

| GLV30-8-2500/47/73c | 419128 | 100 ... 2500 mm | — | approx. 450 mm at a distance of 2000 mm | 10 ms |
| GLV30-8-H-150-IR/47/73c | 419287 | 20 ... 150 mm | 0 ... 170 mm | 4 mm at a distance of 150 mm | 10 ms |

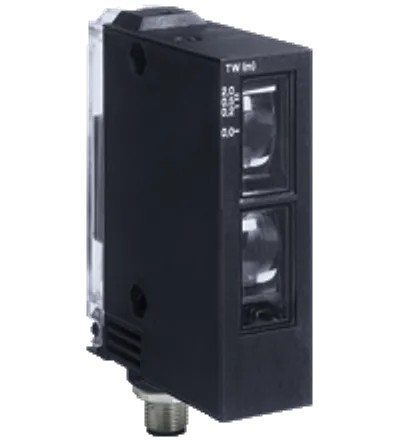

| RL23-8-H-500-RT/49/92 | 419477 | 50 ... 500 mm | 50 ... 500 mm | 12 mm at 500 mm sensor range | 5 ms |
| RL23-8-H-500-RT/47/92/104 | 419471 | 50 ... 500 mm | 50 ... 500 mm | 12 mm at 500 mm sensor range | 50 ms |
| RL28-8-H-700-RT/49/105 | 419620 | 20 ... 700 mm | 20 ... 700 mm | approx. 15 mm at a distance of 700 mm | 2 ms |
| RL28-8-H-2000-IR/110/115 | 421174 | 20 ... 2000 mm | 20 ... 2000 mm | approx. 70 mm at a distance of 2000 mm | 2 ms |
| RL28-8-H-2000-IR/47/115 | 421171 | 20 ... 2000 mm | 20 ... 2000 mm | approx. 70 mm at a distance of 2000 mm | 2 ms |
| RL28-8-H-400-IR/47/105 | 421202 | 20 ... 400 mm | 20 ... 400 mm | approx. 14 mm at a distance of 400 mm | 2 ms |
| RL28-8-H-400-RT/49/105 | 421208 | 20 ... 400 mm | 20 ... 400 mm | approx. 12 mm at a distance of 400 mm | 2 ms |
| RL23-8-H-2000-IR/47/92/104 | 419464 | 50 ... 2000 mm | 50 ... 3000 mm | 50 mm at 2000 mm sensor range | 50 ms |

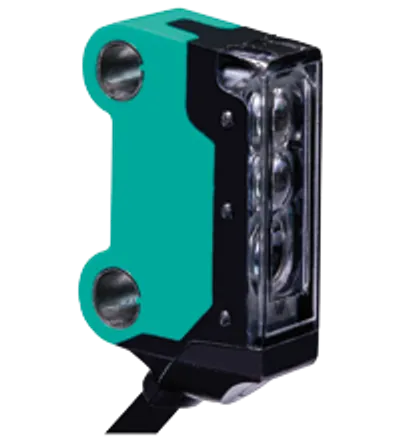

| OBT120-R3-E0-P | 70134005 | 1 ... 120 mm | 1 ... 120 mm | approx. 10 mm at a distance of 120 mm | 1000 µs |
| OBT60-R3-E0-P | 70134010 | 1 ... 60 mm | 1 ... 60 mm | approx. 6 mm at a distance of 60 mm | 1000 µs |
| OBT30-R3-E0-P | 70141870 | 1 ... 30 mm | — | approx. 2 mm at a distance of 30 mm | 600 µs |

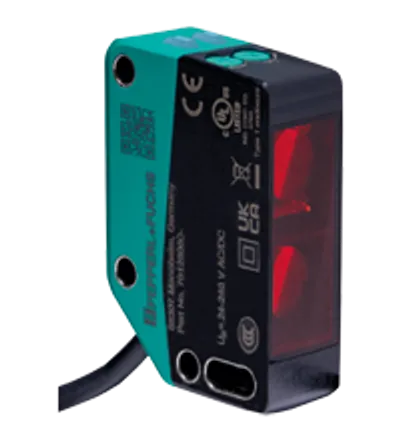

| OBT1250-R202-K2 | 70128080-100023 | 0 ... 1250 mm | 0 ... 1250 mm | approx. 50 mm at a distance of 1250 mm | ≤ 20 ms |

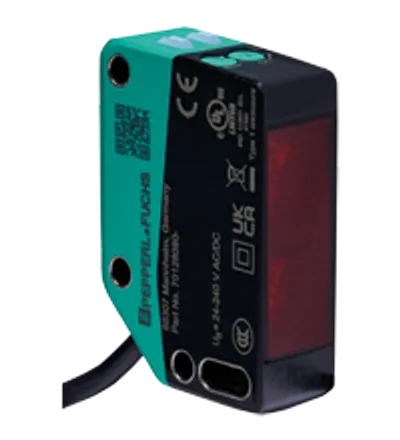

| OBD2000-R202-K2 | 70128080-100017 | 2 ... 2000 mm | 2 ... 2000 mm | approx. 60 mm at a distance of 2 m | ≤ 20 ms |
| OBT15-R3-E0-P-L | 70141860 | 7 ... 15 mm | — | approx. 1.5 mm at a distance of 15 mm | 250 µs |
| OBD2000-R202-E5-V1 | 70128080-100016 | 2 ... 2000 mm | 2 ... 2000 mm | approx. 60 mm at a distance of 2 m | 0.5 ms |
| OBD2000-R202-E4-V1 | 70128080-100015 | 2 ... 2000 mm | 2 ... 2000 mm | approx. 60 mm at a distance of 2 m | 0.5 ms |

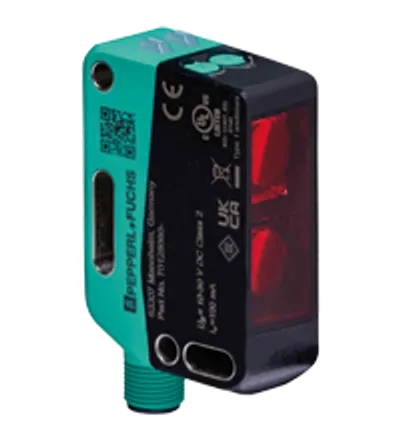

| OBT1250-R202-E5-V1 | 70128080-100022 | 0 ... 1250 mm | 0 ... 1250 mm | approx. 50 mm at a distance of 1250 mm | 0.5 ms |
| OBT1250-R202-E4-V1 | 70128080-100021 | 0 ... 1250 mm | 0 ... 1250 mm | approx. 50 mm at a distance of 1250 mm | 0.5 ms |
| ML17-8-450/115/136 | 905783 | 10 ... 450 mm | — | — | ≤ 1 ms |

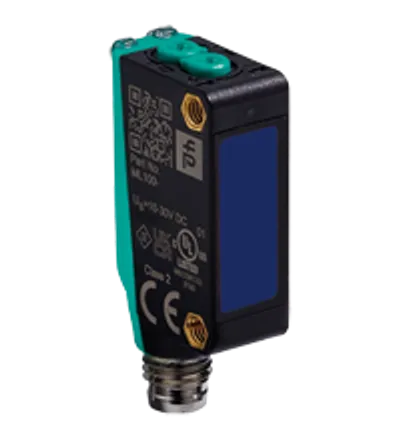

| ML100-8-H-250-BU/95/103 | 70114686 | 5 ... 250 mm | 5 ... 250 mm | approx. 14 mm at a distance of 250 mm | 1 ms |

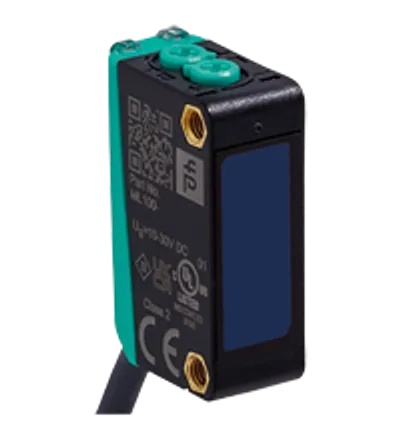

| ML100-8-H-250-BU/102/115 | 70114682 | 5 ... 250 mm | 5 ... 250 mm | approx. 14 mm at a distance of 250 mm | 1 ms |
Common to all listed parts
| Lifecycle | Active (current Pepperl+Fuchs product) |
