MPN	Order code (Pepperl+Fuchs part number)	Detection range max.	Diameter of the light spot	Switching current	Material: Housing
RL23-8-H-2000-IR/47/92	419449	50 ... 3000 mm	50 mm at 2000 mm sensor range	max. 200 mA	Terluran® GV15
RL23-8-H-1000-IR/49/92/104	419451	50 ... 1000 mm	25 mm at 1000 mm sensor range	max. 200 mA	Terluran® GV15
RL23-8-H-1000-IR/47/92	419445	50 ... 1000 mm	25 mm at 1000 mm sensor range	max. 200 mA	Terluran® GV15

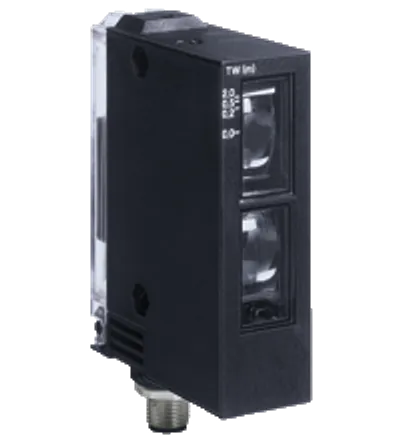

RL23-8-H-2000-IR/47/74a/104	419454	50 ... 3000 mm	50 mm at 2000 mm sensor range	max. 200 mA	Terluran® GV15
RL23-8-H-2000-IR/47/74a	419452	50 ... 3000 mm	50 mm at 2000 mm sensor range	max. 200 mA	Terluran® GV15
RLK23-8-H-2000-IR/31/104/116	419482	50 ... 3000 mm	50 mm at 2000 mm sensor range	max. 2 A	Terluran® GV15
RLK23-8-H-1000-IR/31/116	419481	50 ... 1000 mm	25 mm at 1000 mm sensor range	max. 2 A	Terluran® GV15
RL28-8-H-400-RT/105/110	421209	20 ... 400 mm	approx. 12 mm at a distance of 400 mm	max. 100 mA	plastic
RL23-8-H-2000-IR/49/92	419456	50 ... 3000 mm	50 mm at 2000 mm sensor range	max. 200 mA	Terluran® GV15
RL23-8-H-500-RT/47/92	419472	50 ... 500 mm	12 mm at 500 mm sensor range	max. 200 mA	Terluran® GV15
RLK39-8-800/31/40a/116	088833	—	—	max. 3 A	PBT
RL28-8-H-700-RT/47/105	419618	20 ... 700 mm	approx. 15 mm at a distance of 700 mm	max. 200 mA	plastic
RL28-8-H-2000-IR/49/105	419612	20 ... 2000 mm	approx. 70 mm at a distance of 2000 mm	max. 200 mA	plastic
RL23-8-H-1000-IR/47/92/104	419448	50 ... 1000 mm	25 mm at 1000 mm sensor range	max. 200 mA	Terluran® GV15
RL23-8-H-2000-IR/116/125	419434	50 ... 3000 mm	50 mm at 2000 mm sensor range	max. 200 mA	Terluran® GV15
RL23-8-H-1000-IR/116/125	419433	50 ... 1000 mm	25 mm at 1000 mm sensor range	max. 200 mA	Terluran® GV15
RL23-8-H-500-RT/116/125	419435	50 ... 500 mm	12 mm at 500 mm sensor range	max. 200 mA	Terluran® GV15
RLK39-8-800-Z/31/40a/116	088834	—	—	max. 3 A	PBT
RL28-8-H-700-IR/49/105	419616	20 ... 700 mm	approx. 24 mm at a distance of 700 mm	max. 200 mA	plastic
RL28-8-H-2000-IR/105/110	419613	20 ... 2000 mm	approx. 70 mm at a distance of 2000 mm	max. 100 mA	plastic
RL28-8-H-2000-IR/49/115	421173	20 ... 2000 mm	approx. 70 mm at a distance of 2000 mm	max. 200 mA	Plastic ABS
RL23-8-H-1000-IR/49/92	419450	50 ... 1000 mm	25 mm at 1000 mm sensor range	max. 200 mA	Terluran® GV15
RL23-8-H-2000-IR/104/116/125	419447	50 ... 3000 mm	50 mm at 2000 mm sensor range	max. 200 mA	Terluran® GV15

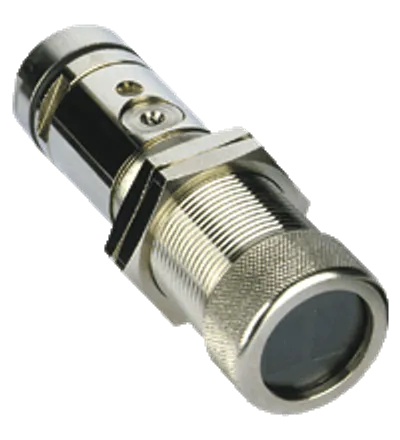

GLV30-LL-1227/40a/53/92	419648	—	approx. 400 mm at 1700 mm sensor range	max. 500 mA	brass, nickel-plated

Common to all listed parts

Lifecycle	Active (current Pepperl+Fuchs product)
Product standard	EN 60947-5-2
