Diffuse Mode Sensors Parts

Showing 769–792 of 939 parts

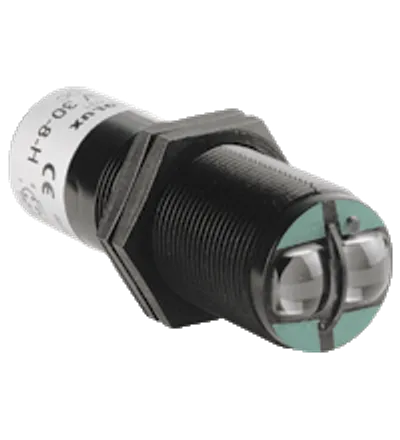

Pepperl Fuchs GLV30-8-H-2371 – Background suppression sensor
Pepperl Fuchs
GLV30-8-H-2371

Background suppression sensor

Pepperl Fuchs RLK23-1482 – Background suppression sensor
Pepperl Fuchs
RLK23-1482

Background suppression sensor

Compare Diffuse Mode Sensors

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNOrder code (Pepperl+Fuchs part number)Diameter of the light spotSwitching frequencyMassBlack-white difference (6 %/90 %)
RLK31-8-2500-IR/31/59/115205236approx. 50 mm at a distance of 2.5 m≤ 20 Hz f155 g—
ML17-8-H-50-RT/115b/136910650≤ 3 mm at 50 mm500 Hz fapprox. 23 g≤ 10 %
ML17-8-H-50-RT/73/136910652≤ 3 mm at 50 mm500 Hz fapprox. 9 g≤ 10 %
ML17-8-H-50-RT/136/143910651≤ 3 mm at 50 mm500 Hz fapprox. 9 g≤ 10 %
ML17-8-H-50-RT/115/136905786≤ 3 mm at 50 mm500 Hz fapprox. 40 g≤ 10 %
RL28-8-H-2000-IR-3974/47/112205804approx. 70 mm at a distance of 2000 mm250 Hz fapprox. 100 g< 40 %
GLV30-8-H-23714192854 mm at a distance of 150 mm35 Hz fapprox. 70 g< 10 mm

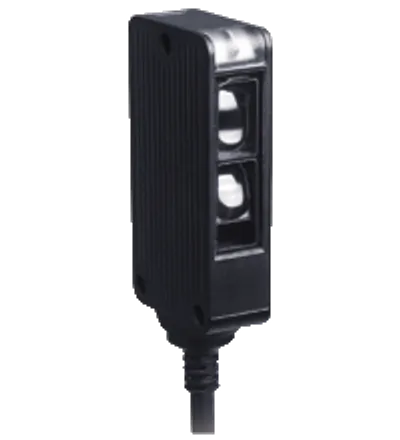

MLV41-8-H-350-IR/59/115/136183444approx. 18 mm at 350 mm sensor range1000 Hz f100 g< 10 % at 350 mm

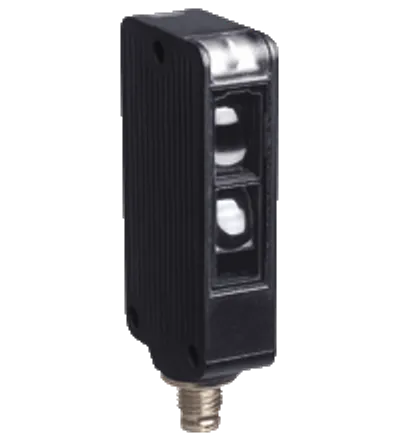

MLV41-8-H-350-IR/59/95/136183443approx. 18 mm at 350 mm sensor range1000 Hz f50 g< 10 % at 350 mm
MLV41-8-H-350-IR/59/92/136183442approx. 18 mm at 350 mm sensor range1000 Hz f50 g< 10 % at 350 mm
MLV41-8-H-350-RT/59/115/136183441approx. 8 mm at 350 mm sensor range1000 Hz f100 g< 15 % at 350 mm
MLV41-8-H-350-RT/59/95/136183440approx. 8 mm at 350 mm sensor range1000 Hz f50 g< 15 % at 350 mm
MLV41-8-H-350-RT/59/92/136183439approx. 8 mm at 350 mm sensor range1000 Hz f50 g< 15 % at 350 mm
RL28-8-H-2000-IR/47/105/106183415approx. 70 mm at a distance of 2000 mm250 Hz f70 g< 40 %
RL28-8-H-700-IR/47/105/106132449approx. 24 mm at a distance of 700 mm250 Hz f70 g< 8 %
RLK23-148241948350 mm at 2000 mm sensor range10 Hz f180 g< 20 %
RL28-8-H-2000-IR-3019/47/115b180713approx. 70 mm at a distance of 2000 mm250 Hz f70 g< 40 %
RL28-8-H-700-RT-3019/47/115b180710approx. 15 mm at a distance of 700 mm250 Hz f70 g< 20 %
RL28-8-H-400-FFP-3019/47/115b1807114 mm x 4 mm at a distance of 250 mm250 Hz f70 g< 15 %
RLK28-8-H-400-IR-Z/31/116134131approx. 14 mm at a distance of 400 mm25 Hz f112 g< 5 %
RLK28-8-H-700-IR-Z/31/116134134approx. 24 mm at a distance of 700 mm25 Hz f112 g< 8 %
RLK28-8-H-700-RT-Z/31/116134135approx. 15 mm at a distance of 700 mm25 Hz f112 g< 20 %
RLK28-8-H-400-RT-Z/31/116134132approx. 12 mm at a distance of 400 mm25 Hz f112 g< 10 %
RL39-8-2000/32/40a/73c/82a088826—≤ 300 Hz fapprox. 100 g—

Common to all listed parts

LifecycleActive (current Pepperl+Fuchs product)
Product standardEN 60947-5-2
