Diffuse Mode Sensors Parts

Showing 745–768 of 939 parts
Pepperl Fuchs GLV30-8-H-2407 – Background suppression sensor
Pepperl Fuchs
GLV30-8-H-2407

Background suppression sensor

Compare Diffuse Mode Sensors

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNOrder code (Pepperl+Fuchs part number)Detection rangeDiameter of the light spotSwitching frequencyMass

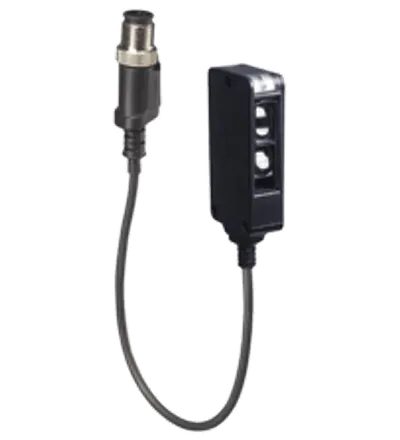

MLV41-8-H-350-IR/59/115b/13620215950 ... 350 mm , adjustableapprox. 18 mm at 350 mm sensor range1000 Hz f100 g
GLV30-8-2000-2372419126100 ... 2500 mmapprox. 450 mm at a distance of 2000 mm35 Hz fapprox. 70 g
RL29-8-H-1200-RT/115b/13619018330 ... 1200 mm , adjustableapprox. 25 mm at a distance of 1200 mm125 Hz f90 g
WTS10-12/20/1052009582 ... 12 mm—100 Hz f80 g

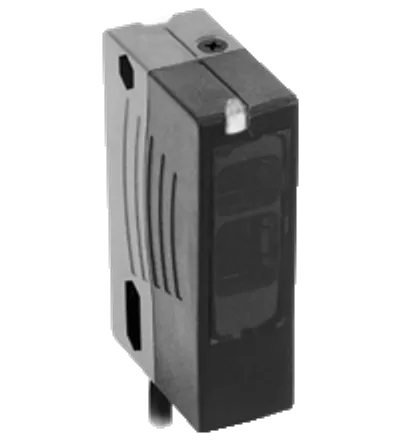

RL29-8-H-1200-RT/115/13619438730 ... 1200 mm , adjustableapprox. 25 mm at a distance of 1200 mm125 Hz f180 g
RL28-8-H-1500-LAS/47/115b194926100 ... 1500 mm—140 Hz fapprox. 70 g
RL28-8-H-1500-LAS/105/110196304100 ... 1500 mm—140 Hz fapprox. 70 g
MLV41-8-H-350-RT/59/115b/13619470050 ... 350 mm , adjustableapprox. 8 mm at 350 mm sensor range1000 Hz f100 g
GLV30-8-H-240741928650 ... 1000 mm30 mm at a distance of 1000 mm25 Hz fapprox. 70 g
MLV41-8-H-350-RT/40a/98/11018963850 ... 350 mm , adjustableapprox. 8 mm at 350 mm sensor range1000 Hz f50 g
RLK31-8-1200-RT/31/59/1151830630 ... 1200 mm adjustableapprox. 25 mm at a distance of 1.2 m20 Hz f155 g
ML100-8-1000-RT/98/1032105380 ... 1000 mmapprox. 75 mm at a distance of 1000 mm1000 Hz fapprox. 10 g
ML100-8-1000-RT/98/1022105400 ... 1000 mmapprox. 75 mm at a distance of 1000 mm1000 Hz fapprox. 10 g
ML100-8-1000-RT/95/1022105390 ... 1000 mmapprox. 75 mm at a distance of 1000 mm1000 Hz fapprox. 10 g
ML100-8-1000-RT/103/1152105430 ... 1000 mmapprox. 75 mm at a distance of 1000 mm1000 Hz fapprox. 50 g
RL31-8-2500-IR/115/1362075450 ... 2500 mm adjustableapprox. 50 mm at a distance of 2.5 m≤ 500 Hz f133 g
RLK31-8-2500-IR/31/33/115-5M2102160 ... 2500 mm adjustableapprox. 50 mm at a distance of 2.5 m≤ 20 Hz f350 g
ML17-8-H-100-RT/136/14391112610 ... 100 mm≤ 6 mm at 100 mm500 Hz fapprox. 9 g
ML17-8-H-100-RT/73/13691112510 ... 100 mm≤ 6 mm at 100 mm500 Hz fapprox. 9 g
ML17-8-H-100-RT/115b/13691112410 ... 100 mm≤ 6 mm at 100 mm500 Hz fapprox. 23 g
ML17-8-H-100-RT/115/13690578710 ... 100 mm≤ 6 mm at 100 mm500 Hz fapprox. 40 g
MLV41-8-H-350-RT/25/115/13620936250 ... 350 mm , adjustableapprox. 8 mm at 350 mm sensor range1000 Hz f100 g
MLV41-8-H-350-RT/25/92/13620936150 ... 350 mm , adjustableapprox. 8 mm at 350 mm sensor range1000 Hz f50 g
WTS10-12-4016/103/1052070572 ... 12 mm—100 Hz f80 g

Common to all listed parts

LifecycleActive (current Pepperl+Fuchs product)
Product standardEN 60947-5-2
