Sensor-Actuator Cables Parts
Compare Sensor-Actuator Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Degree of protection | Sheath diameter | Length | Mass |
|---|---|---|---|---|---|
| V1-WV4A-10M-PP-H1 | 295178 | IP67 / IP68 / IP69 | ∅ 4.7 mm | 10 m L | 270 g |
| V1-WV4A-5M-PP-H1 | 295199 | IP67 / IP68 / IP69 | ∅ 4.7 mm | 5 m L | 152 g |
| V1-GV4A-10M-PP-H1 | 295176 | IP67 / IP68 / IP69 | ∅ 4.7 mm | 10 m L | 281 g |
| V1-GV4A-5M-PP-H1 | 295174 | IP67 / IP68 / IP69 | ∅ 4.7 mm | 5 m L | 151.88 g |
| V1-G-BK10M-PUR-O1 | 239998-100014 | EN 60529 | 4.8 mm | 10 m L | 357 g |
| V1-G-BK10M-PUR-O1S | 240004-100014 | EN 60529 | 6 mm | 10 m L | 548.17 g |
| V1-W-BK1,5M-PUR-O1S-V1-W | 240789-100002 | EN 60529 | 6 mm | 1.5 m L | 109.7 g |
| V1-G-BK0,75M-PVC-U-V1-W-Y30643 | 306432 | IP67 / IP68 / IP69k | — | — | 47 g |
| V1-G-GN-BK15M-PUR-A-V1-G | 306208 | EN 60529 | 4.3 mm | 15 m L | 420.5 g |
| V11-G-GY-BK5M-PUR-A-V11-G | 306201 | EN 60529 | 4.3 mm | 5 m L | 150.44 g |
| V11-G-GY-BK1M-PUR-A-V11-G | 306199 | EN 60529 | 4.3 mm | 1 m L | 44.81 g |

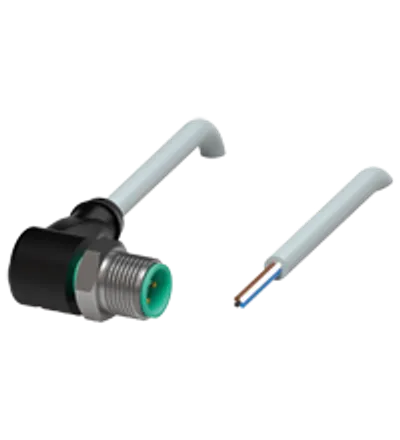

| V1S-WV4A-20M-PVC | 306146 | EN 60529 | 4.8 mm | 20 m L | 702 g |
| V1S-WV4A-10M-PVC | 306145 | EN 60529 | 4.8 mm | 10 m L | 352.2 g |
| V1-GV4A-10M-PP-W1 | 294463 | IP67 / IP68 / IP69 | ∅ 4.7 mm | 10 m L | 272 g |

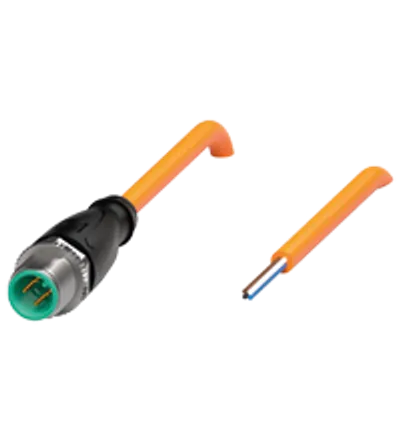

| V1S-G-OR5M-POC | 240771-100011 | EN 60529 | 4.8 mm | 5 m L | 196.25 g |
| V1-G-GN-BK5M-PUR-A-V1-G | 306206 | EN 60529 | 4.3 mm | 5 m L | 148.51 g |
| V19-G-BK30M-PUR-U/ABG-V19-G | 240787-100005 | EN 60529 | 6 mm | 30 m L | 1600 g |
| V1-G-0,55M-PUR-ABG-Y306041 | 306041 | IP67 | ∅ 4.8 mm | 0.55 m L | 31.6 g |
| V1-W-0,1M-PUR-V1-W | 305872 | EN 60529 | 4.8 mm | 0.13 m L | 22.65 g |
| V1-W-0,2M-PUR-V1-W | 305874 | EN 60529 | 4.8 mm | 0.2 m L | 30 g |
| V1S-W-15M-PUR-ABG0 | 305414 | EN 60529 | 4.8 mm | 15 m L | 540 g |
| V31-WMV4A-2M-PP-W1 | 302278 | IP67 / IP68 / IP69 | ∅ 4.7 mm | 2 m L | 58.31 g |

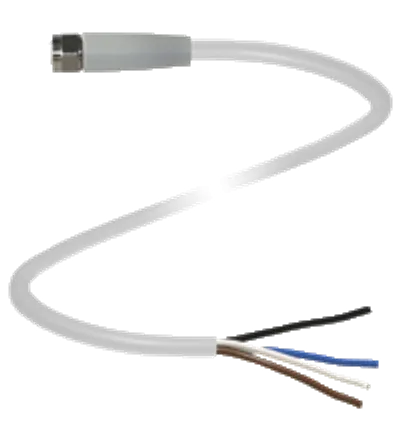

| V31-GMV4A-2M-PP-W1 | 295198 | IP67 / IP68 / IP69 | ∅ 4.7 mm | 2 m L | 59 g |

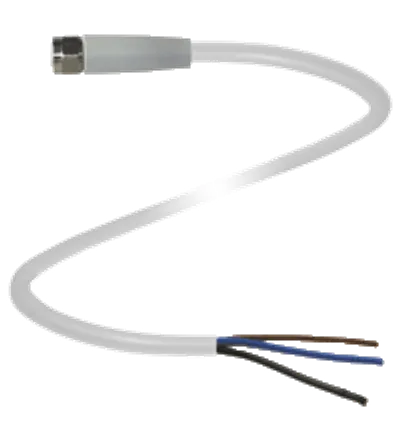

| V3-GMV4A-2M-PP-W1 | 295197 | IP67 / IP68 / IP69 | ∅ 4.7 mm | 2 m L | 48.13 g |
Common to all listed parts
| Pollution degree | 3 |
