Compare Sensor-Actuator Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Operating voltage | Length | Cable code | Mass |
|---|
| V31-GM-BK20M-PUR-U | 239453 | max. 30 V AC/DC UB | 20 m L | Li 9Y 11Y 4 x 0.34 | 520 g |
| V1-G-E2-1M-PUR-V1-G | 220791 | max. 24 V DC -20 % / +25 % UB | 1 m L | Li 9Y 11YM 3 x 0.34 | 47.71 g |

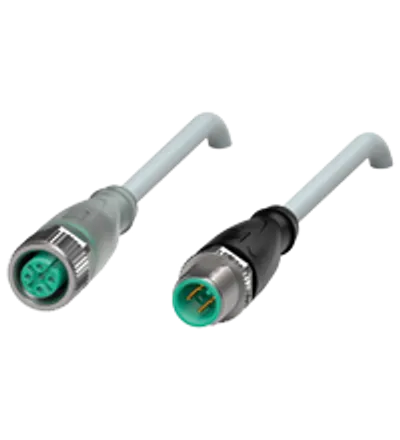

| V1-G-A2-2M-PVC-V1-G | 241645 | max. 24 V DC -20 % / +25 % UB | 2 m L | Li Y YM 4 x 0,34 | 90.8 g |

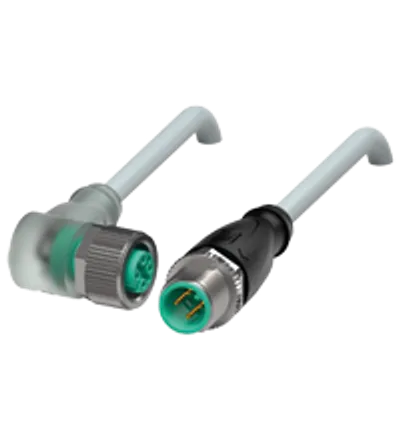

| V1-W-A2-2M-PVC-V1-G | 241644 | max. 24 V DC -20 % / +25 % UB | 2 m L | Li Y YM 4 x 0,34 | 91.15 g |
| V1-W-A2-10M-PUR-V1-G | 235777 | max. 24 V DC -20 % / +25 % UB | 10 m L | Li 9Y 11YM 4 x 0.34 | 304 g |
| V1-W-A2-3M-PUR-V1-G | 235776 | max. 24 V DC -20 % / +25 % UB | 3 m L | Li 9Y 11YM 4 x 0.34 | 83.13 g |
| V11-W-BK5M-PUR-U-V11-G | 456600 | max. 250 V AC/DC UB | 5 m L | Li F 9Y 11Y 3 x 0,34 | 140.77 g |
| V11-W-BK2M-PUR-U-V11-G | 456596 | max. 250 V AC/DC UB | 2 m L | Li F 9Y 11Y 3 x 0,34 | 69.66 g |
| V11-W-BK1M-PUR-U-V11-G | 456595 | max. 250 V AC/DC UB | 1 m L | Li F 9Y 11Y 3 x 0,34 | 45.21 g |
| V1-W-BK2M-PUR-U-V1-G | 456594 | max. 250 V AC/DC UB | 2 m L | Li 9Y 11Y 4 x 0.34 | 74 g |
| V1-W-BK1M-PUR-U-V1-G | 456593 | max. 250 V AC/DC UB | 1 m L | Li 9Y 11Y 4 x 0.34 | 46.6 g |
| V1-W-BK3M-PUR-U-V1-W | 242422 | max. 250 V AC/DC UB | 3 m L | Li 9Y 11Y 4 x 0.34 | 99.84 g |

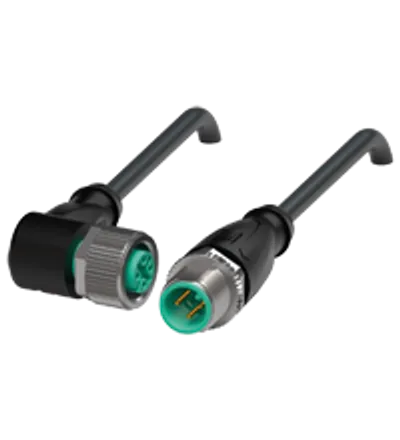

| V11-W-BK2M-PVC-U-V11-G | 242162 | max. 250 V AC/DC UB | 2 m L | Li YY 3 x 0,34 | 77 g |
| V1-W-5M-PVC-V1-W | 240930 | max. 250 V AC/DC UB | 5 m L | Li Y YM 4 x 0,34 | 198.4 g |
| V1-W-2M-PVC-V1-W | 240929 | max. 250 V AC/DC UB | 2 m L | Li Y YM 4 x 0,34 | 91 g |
| V1-W-30M-PUR-V1-G | 215500 | max. 250 V AC/DC UB | 30 m L | Li 9Y 11YM 4 x 0.34 | 923.33 g |
| V1-W-20M-PUR-V1-G | 215499 | max. 250 V AC/DC UB | 20 m L | Li 9Y 11YM 4 x 0.34 | 614 g |
| V1-W-1M-PUR-V1-W | 127416 | max. 250 V AC/DC UB | 1 m L | Li 9Y 11YM 4 x 0.34 | 50.73 g |
| V15-G-BK0,6M-PUR-U/0,75 | 239998-0008 | max. 48 V AC / 60 V DC UB | 0.6 m L | Li F 9Y 11Y 5 x 0,75 | 45 g |
| V11-W-BK3M-PUR-U-V11-G | 219118 | max. 250 V AC/DC UB | 3 m L | Li F 9Y 11Y 3 x 0,34 | 95.43 g |
| V11-W-BK1,5M-PUR-U-V11-G | 219117 | max. 250 V AC/DC UB | 1.5 m L | Li F 9Y 11Y 3 x 0,34 | 59 g |
| V1-G-BK3M-PVC-U-V1-G | 242989 | max. 250 V AC/DC UB | 3 m L | Li YY 4 x 0,34 | 108.98 g |
| V15-G-1M-PVC-V15-G | 241465 | max. 48 V AC / 60 V DC UB | 1 m L | Li Y YM 5 x 0,34 | 58.5 g |
| V11-G-3,5M-PUR-V11-G | 238974 | max. 250 V AC/DC UB | 3.5 m L | Li 9Y 11YM 3 x 0.34 | 100.22 g |
Common to all listed parts
| Connector 1: Connection | socket |
| Connector 1: Locking | screw connection |
| Connector 1: Coding | A-coded |
| Lifecycle | Active (current Pepperl+Fuchs product) |
| Operating current | max. 4 A IB |
| Degree of protection | EN 60529 |
| Lead-free | RoHS directive 2011/65/EU |
| Ambient temperature: Plug connector | -40 ... 90 °C (-40 ... 194 °F) |
