Sensor-Actuator Cables Parts
Compare Sensor-Actuator Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Operating current | Sheath diameter | Length | Mass |
|---|---|---|---|---|---|
| V11-G-0,8M-PVC | 239998-100036 | max. 4 A IB | 4.8 mm | 0.8 m L | 36.35 g |

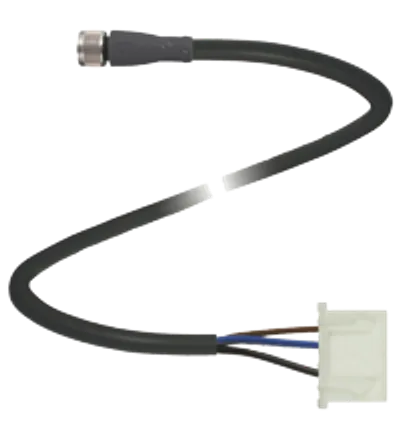

| V31-GM-0,27M-PUR-YJSTXHP4 | 325503 | max. 3 A IB | ∅ 4.3 mm | 0.27 m L | 9 g |
| V19-G-2M-PVC-TP | 324330 | max. 2 A IB | ∅ 6.2 mm | 2 m L | 87.3 g |
| V19-G-5M-PVC-TP | 324331 | max. 2 A IB | ∅ 6.2 mm | 5 m L | 272.5 g |
| V19-G-10M-PVC-TP | 324332 | max. 2 A IB | ∅ 6.2 mm | 10 m L | 542.42 g |
| V15S-G-0,5M-CGR-TC | 305767 | max. 500 mA at 24 V DC IB | ∅ 4.6 mm | 0.5 m L | 103 g |
| V15S-G-0,5M-CGR-AB | 305763 | max. 500 mA at 24 V DC IB | ∅ 4.6 mm | 0.5 m L | 100 g |
| V15S-G-0,5M-CGR-AA | 305762 | max. 500 mA at 24 V DC IB | ∅ 4.6 mm | 0.5 m L | 106.7 g |
| V15S-G-0,5M-CGR-BD | 306933 | max. 500 mA at 24 V DC IB | ∅ 4.6 mm | 0.5 m L | 59.8 g |
| V15S-G-0,5M-CGR-BE | 305761 | max. 500 mA at 24 V DC IB | ∅ 4.6 mm | 0.5 m L | 62 g |
| V19-G-BK2M-PVC-U/ABG | 294934 | max. 2 A IB | 6 mm | 2 m L | 131.8 g |
| V1-G-BK3M-PUR-O1S-V1-W | 240790-100011 | max. 4 A IB | 6 mm | 3 m L | 186.96 g |

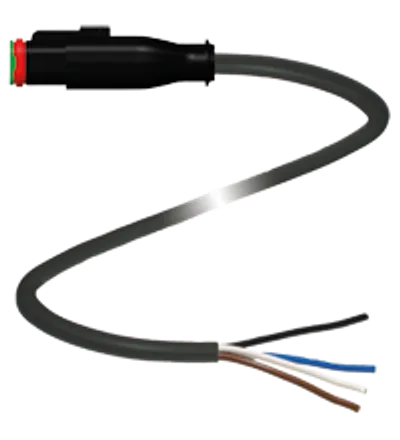

| DT4S-G-BK1,5M-PUR-O1 | 305289 | max. 8 A per contact IB | 4.8 mm | 1.5 m L | 70 g |
| V15-G-BK10M-PUR-U | 239998-100020 | max. 4 A IB | 4.8 mm | 10 m L | 340 g |
| V3-GM-BK0,6M-PVC-U-V3-GM | 240813-100005 | max. 4 A IB | 4.3 mm | 0.6 m L | 31 g |
| V3-GM-BK1M-PVC-U-V3-GM | 240813-100006 | max. 4 A IB | 4.3 mm | 1 m L | 41 g |
| V15-G-BK3M-PUR-U | 239998-100018 | max. 4 A IB | 4.8 mm | 3 m L | 109 g |
| V31-GM-BK0,6M-PUR-U-V31-GM-Y32 | 324329 | max. 3 A IB | ∅ 4.3 mm | 0.6 m L | 23.95 g |

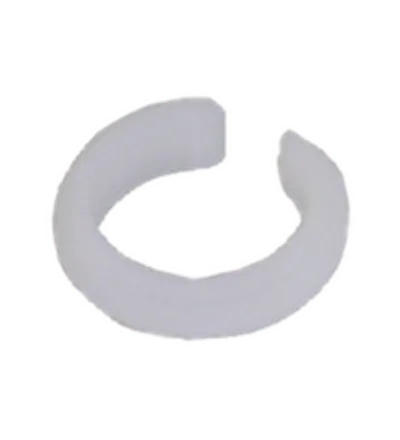

| V1-MARKING-RING-WHITE | 322157 | — | — | — | — |

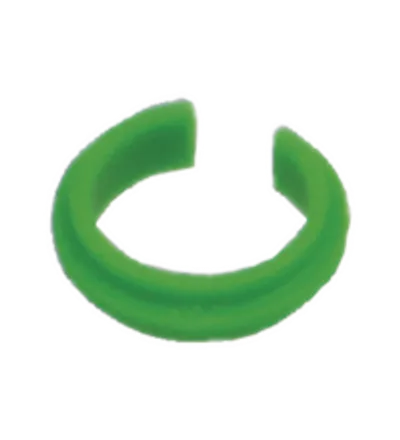

| V1-MARKING-RING-GREEN | 322159 | — | — | — | — |
| V1-MARKING-RING-BLUE | 322158 | — | — | — | — |

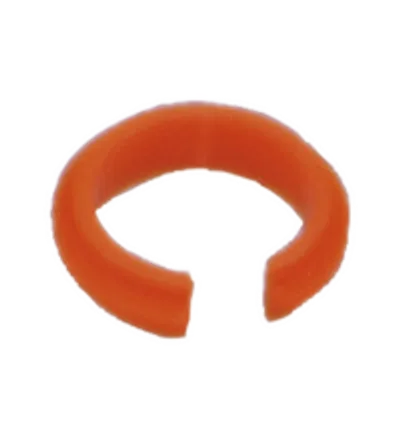

| V1-MARKING-RING-ORANGE | 322160 | — | — | — | — |

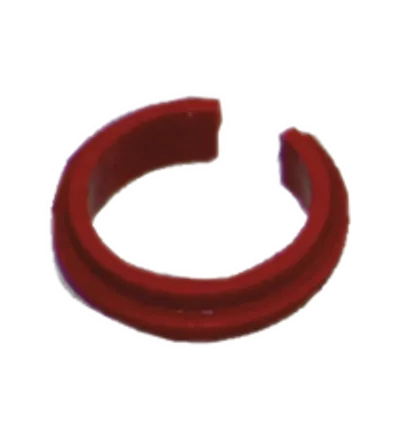

| V1-MARKING-RING-RED | 322156 | — | — | — | — |
| V1-MARKING-RING-YELLOW | 322155 | — | — | — | — |
Common to all listed parts
| Lifecycle | Active (current Pepperl+Fuchs product) |
