Sensor-Actuator Cables Parts
Compare Sensor-Actuator Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Operating voltage | Length | Cable code | Mass |
|---|---|---|---|---|---|
| V1-G-BK5M-PUR-U/ABG0 | 70155404 | max. 250 V AC/DC UB | 5 m L | Li F 9Y C11Y 4 x 0,34 | 203.33 g |

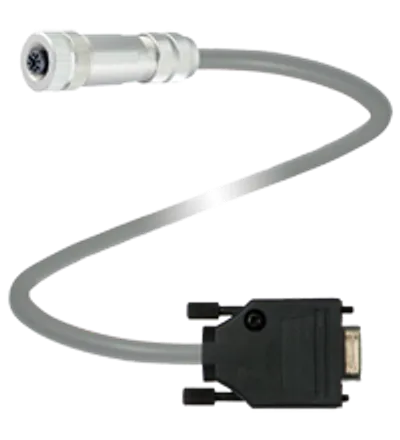

| V15B-G-10M-PUR-ABG-SUBD9 | 70155721 | max. 36 V DC UB | 10 m L | Li 9Y 11YM 4 x 0.34 | 479 g |
| V1-G-BK6M-PUR-U/ABG-V1-G | 240787-100019 | max. 250 V AC/DC UB | 6 m L | Li F 9Y C11Y 4 x 0,34 | 250 g |
| V1-G-BK5M-PUR-U/ABG-V1-G | 240787-100020 | max. 250 V AC/DC UB | 5 m L | Li F 9Y C11Y 4 x 0,34 | 210.29 g |
| V1-G-BK3,5M-PUR-U/ABG-V1-G | 240787-100018 | max. 250 V AC/DC UB | 3.5 m L | Li F 9Y C11Y 4 x 0,34 | 140.8 g |
| V1-G-YE6M-PUR-U-V1-G | 240775-100074 | max. 250 V AC/DC UB | 6 m L | Li F 9Y 11Y 4 x 0,34 | 177 g |
| V31-WM-10M-PUR-V31-GM | 240815-100007 | max. 30 V AC/DC UB | 10 m L | Li 9Y 11Y 4 x 0,25 | 237.5 g |
| V1-G-S-BK0,3M-PUR-A-V1-G | 70154211 | max. 250 V AC/DC UB | 0.3 m L | Li F 9Y 11Y 4 x 0,34 | 31.11 g |
| V1-W-YE3M-PUR-U-V1-G | 240776-100041 | max. 250 V AC/DC UB | 3 m L | Li F 9Y 11Y 4 x 0,34 | 98 g |
| V1-W-YE2M-PUR-U-V1-G | 240776-100040 | max. 250 V AC/DC UB | 2 m L | Li F 9Y 11Y 4 x 0,34 | 74.04 g |
| V19-G-3M-PUR-ABG-V15B-G | 70152434 | max. 30 V AC/DC UB | 3 m L | Li 9Y 11YM 4 x 0.34 | 172 g |
| V19-G-1,5M-PUR-ABG-V15B-G | 70152433 | max. 30 V AC/DC UB | 1.5 m L | Li 9Y 11YM 4 x 0.34 | 118 g |

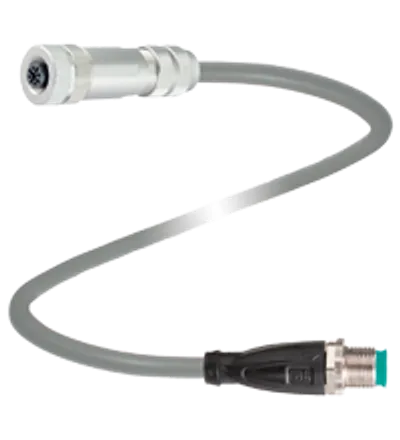

| V15B-G-2M-PUR-ABG-V15-G | 70152439 | max. 48 V AC / 60 V DC UB | 2 m L | Li 9Y 11YM 5 x 0.34 | 140.17 g |
| V15B-G-1M-PUR-ABG-V15-G | 70152436 | max. 48 V AC / 60 V DC UB | 1 m L | Li 9Y 11YM 5 x 0.34 | 102.36 g |

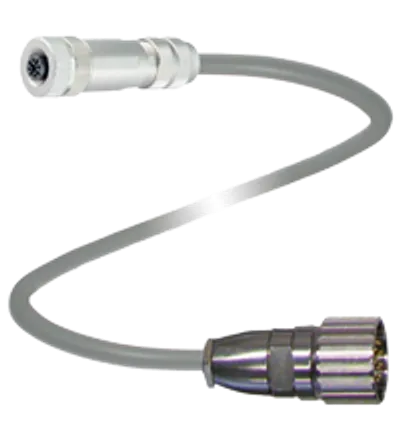

| V15B-G-1M-PUR-ABG-V23-G | 70152438 | max. 30 V AC/DC UB | 1 m L | Li 9Y 11YM 4 x 0.34 | 172 g |
| 42306A-15M-05P-RVI50/78 | 70152430 | 250 V UB | 15 m L | Li Y 5 x 0,38 | — |
| 42306A-05M-05P-RVI50/78 | 116882 | 250 V UB | 5 m L | Li Y 5 x 0,38 | 349 g |

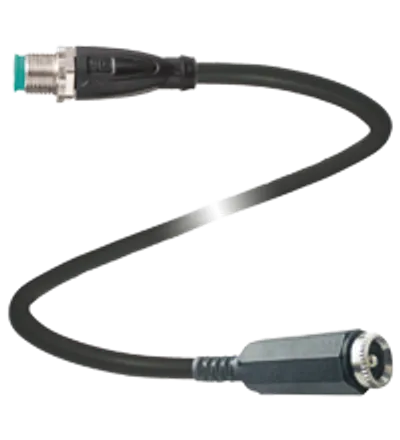

| V1S-G-BK0,5M-PUR-U-YDCJACK | 70148252 | max. 24 V DC UB | 0.5 m L | Li 9Y 11Y 4 x 0.34 | 178 g |
| V1-G-BK8M-PVC-U-V1-W | 240778-100043 | max. 250 V AC/DC UB | 8 m L | Li YY 4 x 0,34 | 253.8 g |
| V1-G-YE20M-PVC-U-V1-G | 240775-100040 | max. 250 V AC/DC UB | 20 m L | Li YY 4 x 0,34 | 615 g |
| V1-G-BK20M-PVC-U | 239998-100026 | max. 250 V AC/DC UB | 20 m L | Li YY 4 x 0,34 | 606 g |
| V1-G-BK6M-PVC-U | 239998-100042 | max. 250 V AC/DC UB | 6 m L | Li YY 4 x 0,34 | 185 g |
| V1-G-25M-PVC | 239998-100055 | max. 250 V AC/DC UB | 25 m L | Li Y YM 4 x 0,34 | 875 g |
| V15-G-0,4M-PVC | 239998-100034 | max. 48 V AC / 60 V DC UB | 0.4 m L | Li Y YM 5 x 0,34 | 26.29 g |
Common to all listed parts
| Connector 1: Locking | screw connection |
| Lifecycle | Active (current Pepperl+Fuchs product) |
| Degree of protection | EN 60529 |
