Sensor-Actuator Cables Parts
Compare Sensor-Actuator Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Halogen-free | Length | Cable code | Mass |
|---|---|---|---|---|---|
| V15-W-N4-5M-PUR-N4S5 | 70156042 | DIN VDE 0472-815 , IEC 60754-1 | 5 m L | Li 9Y C11Y 4 x 0,50 | 183.33 g |
| V1-W-N4-25M-PUR-N4S | 70152671 | DIN VDE 0472-815 , IEC 60754-1 | 25 m L | Li 9Y C11Y 4 x 0,50 | 1323.33 g |
| V1-W-N-15M-PUR-N4S | 70152670 | DIN VDE 0472-815 , IEC 60754-1 | 15 m L | Li 9Y C11Y 2 x 0,50 | 696.38 g |
| V31-GM-BK3M-PUR-U-V31-GM | 240813-100012 | IEC 60754-1 | 3 m L | Li 9Y 11Y 4 x 0.34 | 88.45 g |
| V31-GM-3M-PUR-V31-GM-UDB/UDC | 70155622 | IEC 60754-2 | 3 m L | Li 9Y C11Y 3 x 0,14 | 84 g |
| V1-G-BK35M-PUR-U-V1-G | 240775-100054 | IEC 60754-1 | 35 m L | Li 9Y 11Y 4 x 0.34 | 848.33 g |
| V1-G-BK25M-PUR-U-V1-G | 240775-100027 | IEC 60754-1 | 25 m L | Li 9Y 11Y 4 x 0.34 | 680 g |
| V15-G-BK25M-PUR-U/ABG5 | 70164712 | DIN VDE 0472-815 | 25 m L | Li F 9Y C11Y 4 x 0,34 | 940.29 g |
| V3-GR-BK20M-PUR-U | 70127484-100004 | IEC 60754-1 | 20 m L | Li F 9Y 11Y 3 x 0,34 | 450.13 g |
| V3-GR-BK5M-PUR-U | 70101492 | IEC 60754-1 | 5 m L | Li F 9Y 11Y 3 x 0,34 | — |
| V1-G-N4-5M-PUR-N4S | 70159373 | DIN VDE 0472-815 , IEC 60754-1 | 5 m L | Li 9Y C11Y 4 x 0,50 | 270 g |
| V3-GR-BK2M-PUR-U | 70101491 | IEC 60754-1 | 2 m L | Li F 9Y 11Y 3 x 0,34 | 52 g |

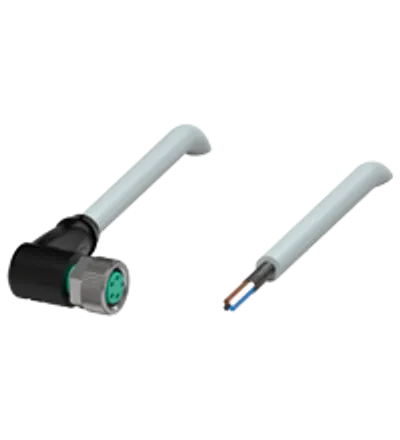

| V31-WM-BK5M-PUR-ABG | 911816 | DIN VDE 0472-815 DIN EN 50267-2-1 | 5 m L | Li 9Y 11YM 4 x 0.34 | 96.25 g |
| V11-G-20M-PVC-V11-G | 70128170-100182 | — | 20 m L | Li Y YM 3 x 0,34 | 638 g |
| V3-WM-BK1M-PUR-U | 70124952-100048 | IEC 60754-1 | 1 m L | Li F 9Y 11Y 3 x 0,34 | — |

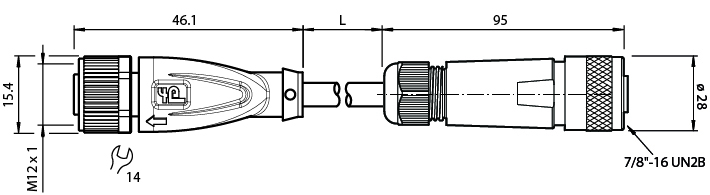

| V1-G-BK5M-PVC-U-YV96 | 70194150 | — | 5 m L | Li YY 4 x 0,34 | — |

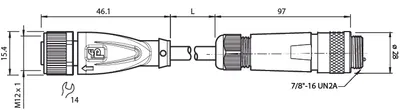

| V1-G-BK5M-PVC-U-YV96S | 70194148 | — | 5 m L | Li YY 4 x 0,34 | — |
| V3-GM-BK5M-PUR-R1-V3-GM | 70152980 | DIN VDE 0472-815 DIN EN 50267-2-1 | 5 m L | Li 9Y 11YM 4 x 0.34 | 150 g |
| V31-GM-BK1,5M-PUR-U-V1-W | 70158275 | IEC 60754-1 | 1.5 m L | Li 9Y 11Y 4 x 0.34 | 55.9 g |
| V11-G-BK1,8M-PUR-U | 70128170-100052 | IEC 60754-1 | 1.8 m L | Li F 9Y 11Y 3 x 0,34 | 55.46 g |
| V11-G-BK9,5M-PUR-U-V11-G | 70128170-100051 | IEC 60754-1 | 9.5 m L | Li F 9Y 11Y 3 x 0,34 | — |
| V11-G-BK9M-PUR-U-V11-G | 70128170-100050 | IEC 60754-1 | 9 m L | Li F 9Y 11Y 3 x 0,34 | — |
| V11-G-BK8,5M-PUR-U-V11-G | 70128170-100049 | IEC 60754-1 | 8.5 m L | Li F 9Y 11Y 3 x 0,34 | — |
| V11-G-BK7,5M-PUR-U-V11-G | 70128170-100048 | IEC 60754-1 | 7.5 m L | Li F 9Y 11Y 3 x 0,34 | 207.5 g |
Common to all listed parts
| Connector 1: Connection | socket |
| Connector 1: Coding | A-coded |
| Operating current | max. 4 A IB |
| Degree of protection | EN 60529 |
