Compare Sensor-Actuator Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Sheath stripping force | Length | Cable code | Mass |
|---|
| V15-G-15M-PUR-ABG | 240004-0001 | max. 100 N / 300 mm | 15 m L | Li 9Y 11YM 5 x 0.34 | 583 g |

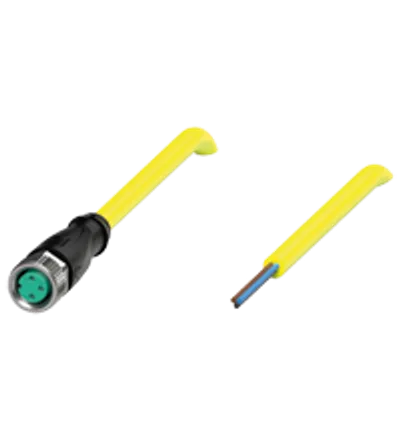

| V3-GM-YE2M-PVC-U | 226380 | max. 50 N / 300 mm | 2 m L | Li YY 3 x 0,34 | 58 g |
| V15-G-0,3M-PUR | 196486 | max. 60 N / 500 mm | 0.3 m L | Li 9Y 11YM 5 x 0.34 | 20.79 g |
| V3S-GM-BK0,6M-PUR-U | 243378 | max. 80 N / 300 mm | 0.6 m L | Li F 9Y 11Y 3 x 0,34 | 19.86 g |
| V11-G-BK0,6M-PUR-U-V11-G | 219116 | max. 80 N / 300 mm | 0.6 m L | Li F 9Y 11Y 3 x 0,34 | 34.18 g |
| V11-G-BK0,3M-PUR-U-V11-G | 219114 | max. 80 N / 300 mm | 0.3 m L | Li F 9Y 11Y 3 x 0,34 | 28.34 g |
| V1-W-BK0,6M-PUR-U-V1-G | 456592 | max. 80 N / 300 mm | 0.6 m L | Li 9Y 11Y 4 x 0.34 | 37.59 g |
| V11-W-BK0,6M-PUR-U-V11-G | 219115 | max. 80 N / 300 mm | 0.6 m L | Li F 9Y 11Y 3 x 0,34 | 38 g |

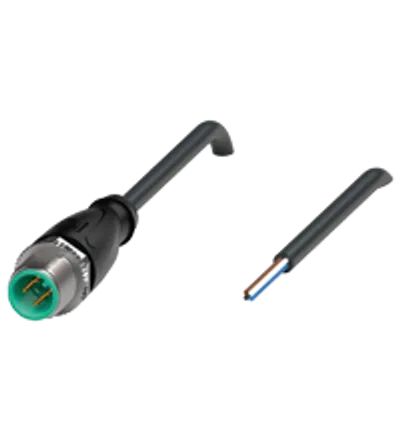

| V1S-G-BK5M-PVC-U | 244182 | max. 50 N / 300 mm | 5 m L | Li YY 4 x 0,34 | 151.94 g |
| V1-G-0,3M-PUR-V1-G | 216466 | max. 60 N / 500 mm | 0.3 m L | Li 9Y 11YM 4 x 0.34 | 29.05 g |

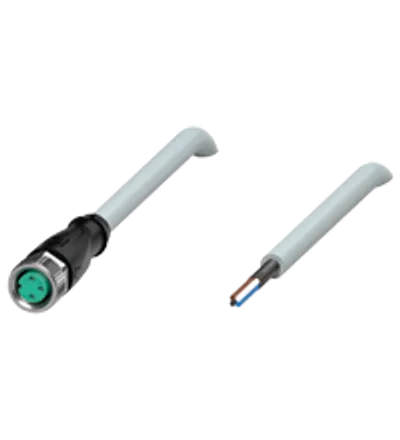

| V3-GM-10M-PUR-ABG | 244380 | max. 100 N / 300 mm | 10 m L | Li 9Y 11YM 4 x 0.34 | 368.02 g |

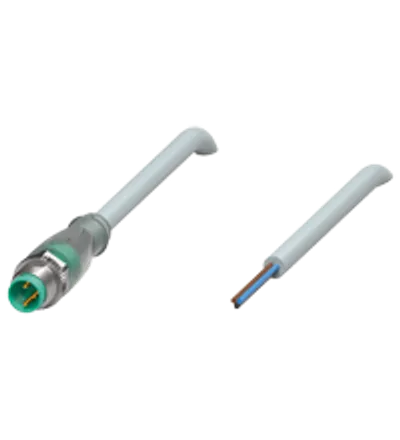

| V3S-GM-E2-2M-PVC | 241647 | max. 80 N / 300 mm | 2 m L | Li YY 3 x 0,25 | 60 g |
| V1-G-BK10M-PVC-U-V1-G | 240775-0034 | max. 50 N / 300 mm | 10 m L | Li YY 4 x 0,34 | 287 g |
| V1-G-BK8M-PUR-U | 239998-0037 | max. 80 N / 300 mm | 8 m L | Li 9Y 11Y 4 x 0.34 | 219 g |
| V1-G-BK4M-PUR-U | 239998-0036 | max. 80 N / 300 mm | 4 m L | Li 9Y 11Y 4 x 0.34 | 114.08 g |
| V1-G-BK11M-PUR-U | 239998-0035 | max. 80 N / 300 mm | 11 m L | Li 9Y 11Y 4 x 0.34 | 199.96 g |
| V3S-WM-E2-10M-PUR | 240810-0001 | max. 80 N / 500 mm | 10 m L | Li 9Y 11Y 3 x 0,25 | 214 g |

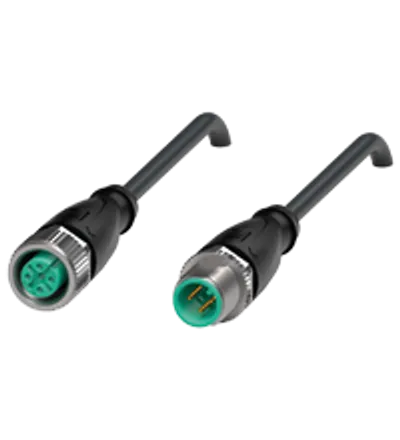

| V11-G-BK10M-PVC-U-V11-G | 240775-0033 | max. 50 N / 300 mm | 10 m L | Li YY 3 x 0,34 | 288 g |
| V1-G-3M-PUR-V1-G | 108459 | max. 60 N / 500 mm | 3 m L | Li 9Y 11YM 4 x 0.34 | 112.2 g |
| V1-G-20M-PUR-V1-G | 108463 | max. 60 N / 500 mm | 20 m L | Li 9Y 11YM 4 x 0.34 | 585.2 g |
| V1-G-15M-PUR-V1-G | 108462 | max. 60 N / 500 mm | 15 m L | Li 9Y 11YM 4 x 0.34 | 438 g |
| V1-W-10M-PUR-V1-G | 115357 | max. 60 N / 500 mm | 10 m L | Li 9Y 11YM 4 x 0.34 | 303.2 g |
| V3-GM-BK5M-PVC-U | 215922 | max. 50 N / 300 mm | 5 m L | Li YY 3 x 0,34 | 140 g |
| V3-GM-BK2M-PUR-U-V3-GM | 223230 | max. 80 N / 300 mm | 2 m L | Li F 9Y 11Y 3 x 0,34 | 60.31 g |
Common to all listed parts
| Connector 1: Locking | screw connection |
| Connector 1: Coding | A-coded |
| Operating current | max. 4 A IB |
| Degree of protection | EN 60529 |
| Ambient temperature: Plug connector | -40 ... 90 °C (-40 ... 194 °F) |
| Pollution degree | 3 |
| Plug connector: Loosening protection | integrated |
| Plug connector: Mating cycles | min. 100 |
