Sensor-Actuator Cables Parts
Compare Sensor-Actuator Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Operating voltage | Sheath diameter | Length | Mass |
|---|---|---|---|---|---|
| V1-G-BK3M-PUR-U | 218519 | max. 250 V AC/DC UB | 4.3 mm | 3 m L | 89.55 g |

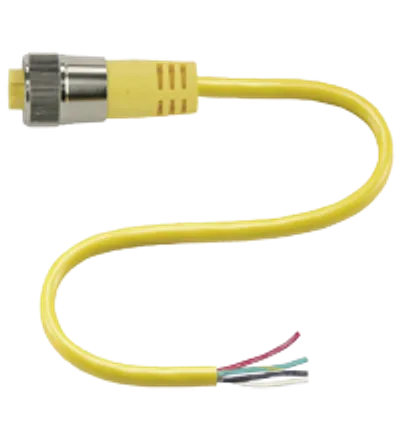

| V94-G-YE2M-STOOW | 912587 | max. 600 V UB | ∅ 10.7 mm | 2 m L | 376.2 g |
| V3-GR-YE2M-PUR | 909017 | max. 125 V DC UB | ∅ 4.4 mm | 2 m L | 70 g |
| V3-GR-YE5M-PUR | 909018 | max. 125 V DC UB | ∅ 4.4 mm | 5 m L | 147 g |

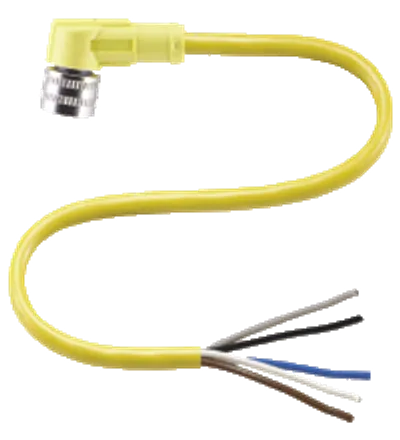

| V15-W-YE5M-PVC | 908969 | max. 125 V DC UB | 5.9 mm | 5 m L | 269 g |

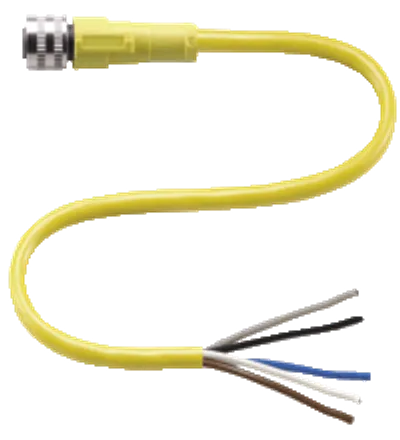

| V15-G-YE5M-PVC | 908967 | max. 125 V DC UB | 5.9 mm | 5 m L | 266 g |

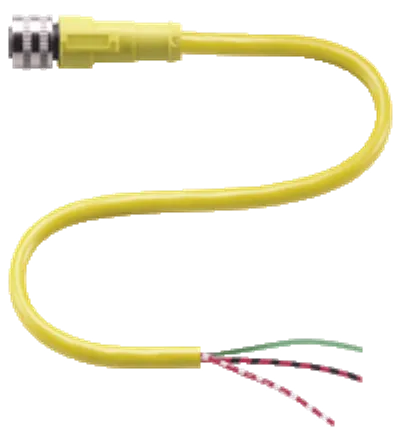

| V12-G-YE5M-PUR-H/S | 908952 | max. 300 V DC UB | ∅ 5.8 mm | 5 m L | 252.5 g |
| V12-G-YE2M-PUR-H/S | 908950 | max. 300 V DC UB | ∅ 5.8 mm | 2 m L | 111.25 g |
| V12-G-YE10M-PVC | 908948 | max. 300 V AC/DC UB | ∅5.2 mm | 10 m L | 410 g |

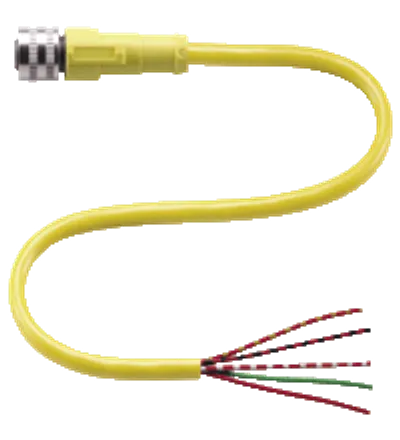

| V125-G-YE5M-PVC | 908916 | max. 125 V AC/DC UB | ∅ 5.9 mm | 5 m L | 273 g |
| V125-G-YE2M-PVC | 910407 | max. 125 V AC/DC UB | ∅ 5.9 mm | 2 m L | 120 g |
| V1-GV4A-BK5M-PUR-U | 219632 | max. 250 V AC/DC UB | 4.3 mm | 5 m L | 98.69 g |
| V1-GV4A-BK5M-PVC-U | 219385 | max. 250 V AC/DC UB | 4.3 mm | 5 m L | 157 g |
| V11-G-BK1,5M-PUR-U-V11-G | 217476 | max. 250 V AC/DC UB | 4.3 mm | 1.5 m L | 55 g |
| V11-G-BK3M-PUR-U-V11-G | 217477 | max. 250 V AC/DC UB | 4.3 mm | 3 m L | 93.65 g |
| V11-G-BK10M-PUR-U-V11-G | 217478 | max. 250 V AC/DC UB | 4.3 mm | 10 m L | 249 g |
| V3-GM-BK5M-PUR-U | 217480 | max. 48 V AC / 60 V DC UB | 4.3 mm | 5 m L | 112.88 g |
| V1-W-BK5M-PUR-U | 217482 | max. 250 V AC/DC UB | 4.3 mm | 5 m L | 143.14 g |

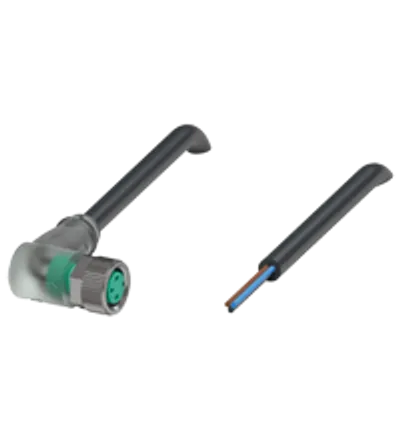

| V3-WM-E2-BK5M-PUR-U | 217493 | max. 24 V DC -20 % / +25 % UB | 4.3 mm | 5 m L | 131.16 g |
| V3-WM-E2-BK10M-PUR-U | 217494 | max. 24 V DC -20 % / +25 % UB | 4.3 mm | 10 m L | 250 g |
| V1-W-A2-BK10M-PUR-U | 217488 | max. 24 V DC -20 % / +25 % UB | 4.3 mm | 10 m L | 274.88 g |
| V1-W-A2-BK5M-PUR-U | 217487 | max. 24 V DC -20 % / +25 % UB | 4.3 mm | 5 m L | 127.87 g |
| V1-W-A2-BK2M-PUR-U | 217486 | max. 24 V DC -20 % / +25 % UB | 4.3 mm | 2 m L | 65.4 g |
| V1-G-A2-BK10M-PUR-U | 217485 | max. 24 V DC -20 % / +25 % UB | 4.3 mm | 10 m L | 273.76 g |
Common to all listed parts
| Lifecycle | Active (current Pepperl+Fuchs product) |
