Sensor-Actuator Cables Parts
Compare Sensor-Actuator Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Sheath stripping force | Length | Cable code | Mass |
|---|---|---|---|---|---|
| V19-G-BK50M-PUR-U | 239998-0058 | max. 50 N / 300 mm | 50 m L | Li 9Y 11Y 8 x 0,25 | 2189 g |
| V1S-G-30M-PUR | 240771-0026 | max. 60 N / 500 mm | 30 m L | Li 9Y 11YM 4 x 0.34 | 847 g |
| V11-W-20M-PUR-V11-G | 240776-0029 | max. 10 N / 50 mm | 20 m L | Li 9Y 11YM 3 x 0.34 | 541 g |
| V11-W-12M-PUR-V11-G | 240776-0028 | max. 10 N / 50 mm | 12 m L | Li 9Y 11YM 3 x 0.34 | 312.17 g |
| V11-W-8M-PUR-V11-G | 240776-0027 | max. 10 N / 50 mm | 8 m L | Li 9Y 11YM 3 x 0.34 | 229 g |

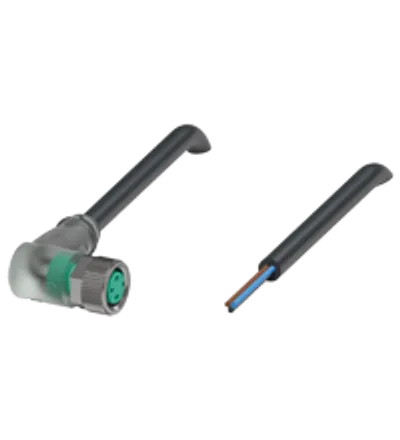

| V3-WM-E2-BK2M-PVC-U | 240802-0004 | max. 50 N / 300 mm | 2 m L | Li YY 3 x 0,34 | 60 g |

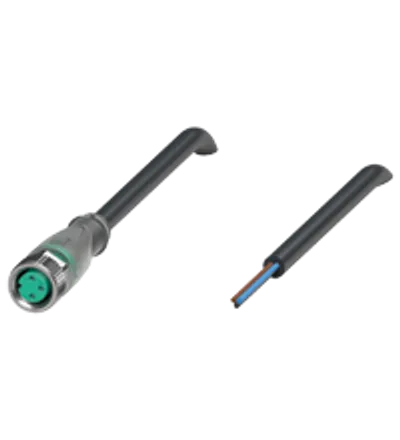

| V3-GM-E2-BK2M-PVC-U | 240801-0006 | max. 50 N / 300 mm | 2 m L | Li YY 3 x 0,34 | 59 g |
| V3-GM-BK2M-PVC-U-V11-G | 240797-0009 | max. 50 N / 300 mm | 2 m L | Li YY 3 x 0,34 | 68.6 g |
| V19-G-BK15M-PUR-U-V19-G | 240775-0050 | max. 50 N / 300 mm | 15 m L | Li 9Y 11Y 8 x 0,25 | 723.05 g |
| V1-W-A2-0,6M-PUR-V1-G | 240780-0020 | max. 60 N / 500 mm | 0.6 m L | Li 9Y 11YM 4 x 0.34 | 39.2 g |
| V1-W-A2-0,6M-PUR | 240001-0003 | max. 60 N / 500 mm | 0.6 m L | Li 9Y 11YM 4 x 0.34 | 32.08 g |
| V15-W-0,3M-PUR | 239999-0041 | max. 60 N / 500 mm | 0.3 m L | Li 9Y 11YM 5 x 0.34 | 20.62 g |

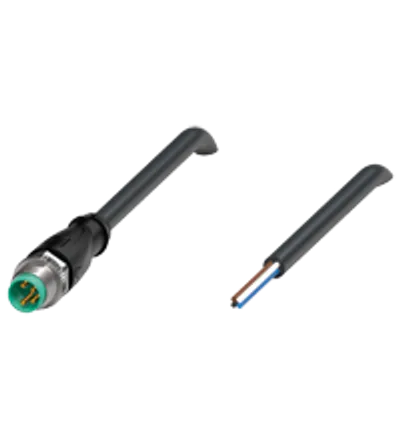

| V31S-GM-BK10M-PUR-U | 240807-0009 | max. 80 N / 300 mm | 10 m L | Li 9Y 11Y 4 x 0.34 | 267 g |

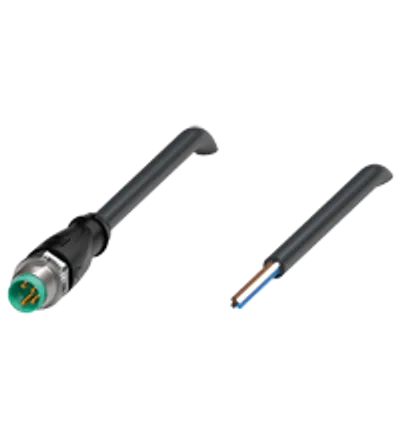

| V31S-GM-BK2M-PVC-U | 240807-0008 | max. 50 N / 300 mm | 2 m L | Li YY 4 x 0,34 | 64 g |

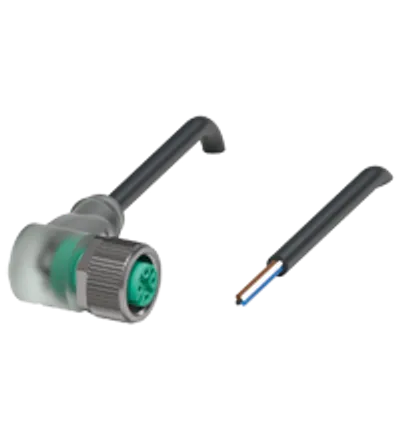

| V1-W-E8W-BK5M-PUR-A | 240003-0004 | max. 80 N / 300 mm | 5 m L | Li F 9Y 11Y 4 x 0,34 | 144 g |
| V19-G-BK60M-PVC-U | 239998-0057 | max. 50 N / 300 mm | 60 m L | Li Y YM 8 x 0,34 | 3692 g |
| V19-G-BK50M-PVC-U | 239998-0056 | max. 50 N / 300 mm | 50 m L | Li Y YM 8 x 0,34 | 3101 g |
| V31-WM-0,15M-PUR-V3-GM | 275666 | max. 80 N / 500 mm | 0.15 m L | Li 9Y 11Y 3 x 0,25 | 10.92 g |
| V19-G-BK5M-PVC-U | 239998-0055 | max. 50 N / 300 mm | 5 m L | Li Y YM 8 x 0,34 | 320.4 g |
| V19-G-BK30M-PVC-U | 239998-0054 | max. 50 N / 300 mm | 30 m L | Li Y YM 8 x 0,34 | 1662 g |
| V19-G-BK20M-PVC-U | 239998-0053 | max. 50 N / 300 mm | 20 m L | Li Y YM 8 x 0,34 | 1260.33 g |
| V19-G-BK15M-PVC-U | 239998-0052 | max. 50 N / 300 mm | 15 m L | Li Y YM 8 x 0,34 | 932 g |
| V19-G-BK10M-PVC-U | 239998-0051 | max. 50 N / 300 mm | 10 m L | Li Y YM 8 x 0,34 | 629.33 g |
| V19-G-BK1M-PUR-U | 239998-100019 | max. 50 N / 300 mm | 1 m L | Li 9Y 11Y 8 x 0,25 | 62 g |
Common to all listed parts
| Connector 1: Locking | screw connection |
| Connector 1: Coding | A-coded |
| Lifecycle | Active (current Pepperl+Fuchs product) |
| Degree of protection | EN 60529 |
| Ambient temperature: Plug connector | -40 ... 90 °C (-40 ... 194 °F) |
| Pollution degree | 3 |
| Plug connector: Screw connection | Zinc diecast, nickel-plated |
| Plug connector: Contact surface | gold plated (Au) |
