Hydraulic cylinders Parts
Compare Hydraulic cylinders
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Bore Diameter | Mounting style | First rod end type | Model Code 1 | Model Code 2 |
|---|---|---|---|---|---|
| HB101WJ | 2.00 inch | Head rectangular flange | — | — | — |

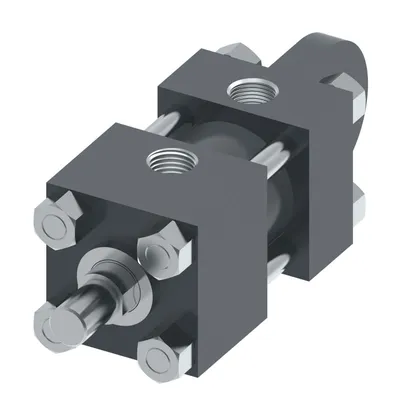

| HB00A1 | 4.00 inch | Cap spherical bearing | Short female UN thread | NZ11HL2N1KW130RS-HB00A1 | — |

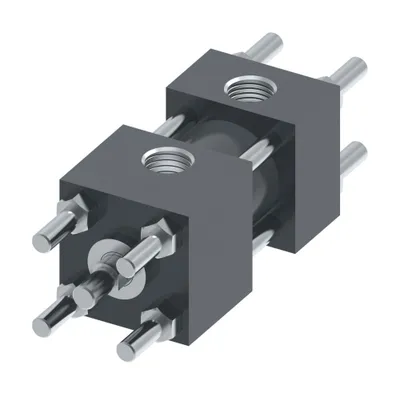

| HA0CEH | 2.00 inch | Both ends extended tie rod | Male modified | R5L-2.00X1.56-B-0.63-2M-N-N-N- | 1-1-HA0CEH |

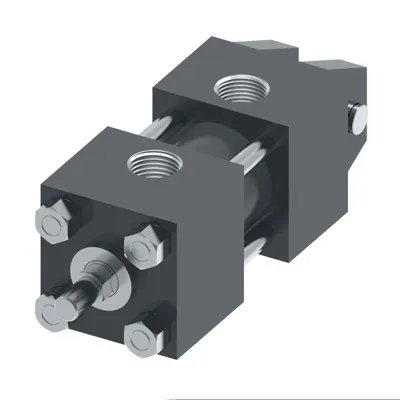

| HA02LK | 2.50 inch | Detachable clevis | Male, small (standard) | N5DC-2.50X10.50-B-1.75-2M-S-J- | R-4-4-HA02LK |

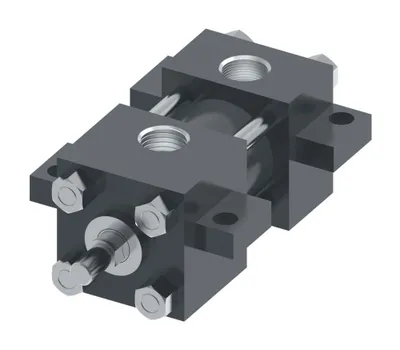

| HA01K4 | 2.50 inch | Centerline lug | Male, small (standard) | N5H-2.50X2.00-N-1.00-2-S-H-R-3 | -3-HA01K4 |

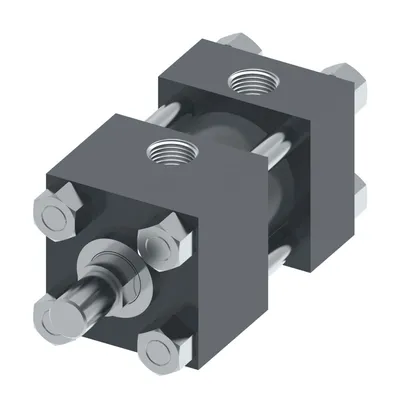

| HA00SY | 1.50 inch | Side tapped | Female | N5B-1.50X1.50-N-0.63-4-S-H-N-1 | -1-HA00SY |
