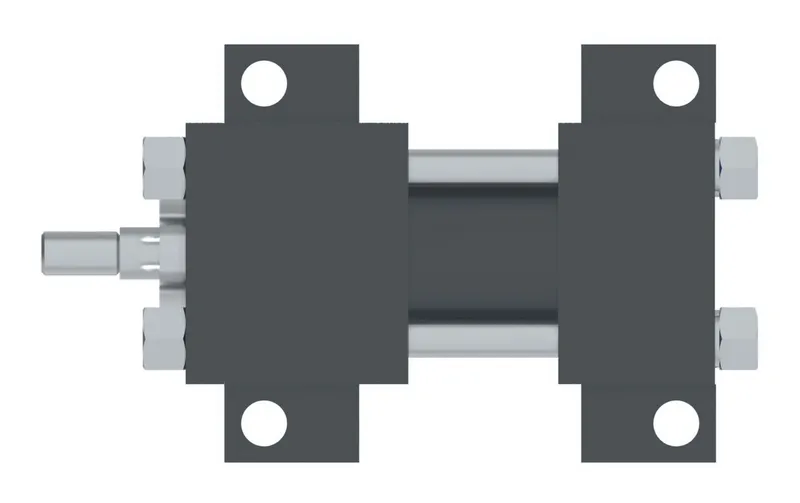

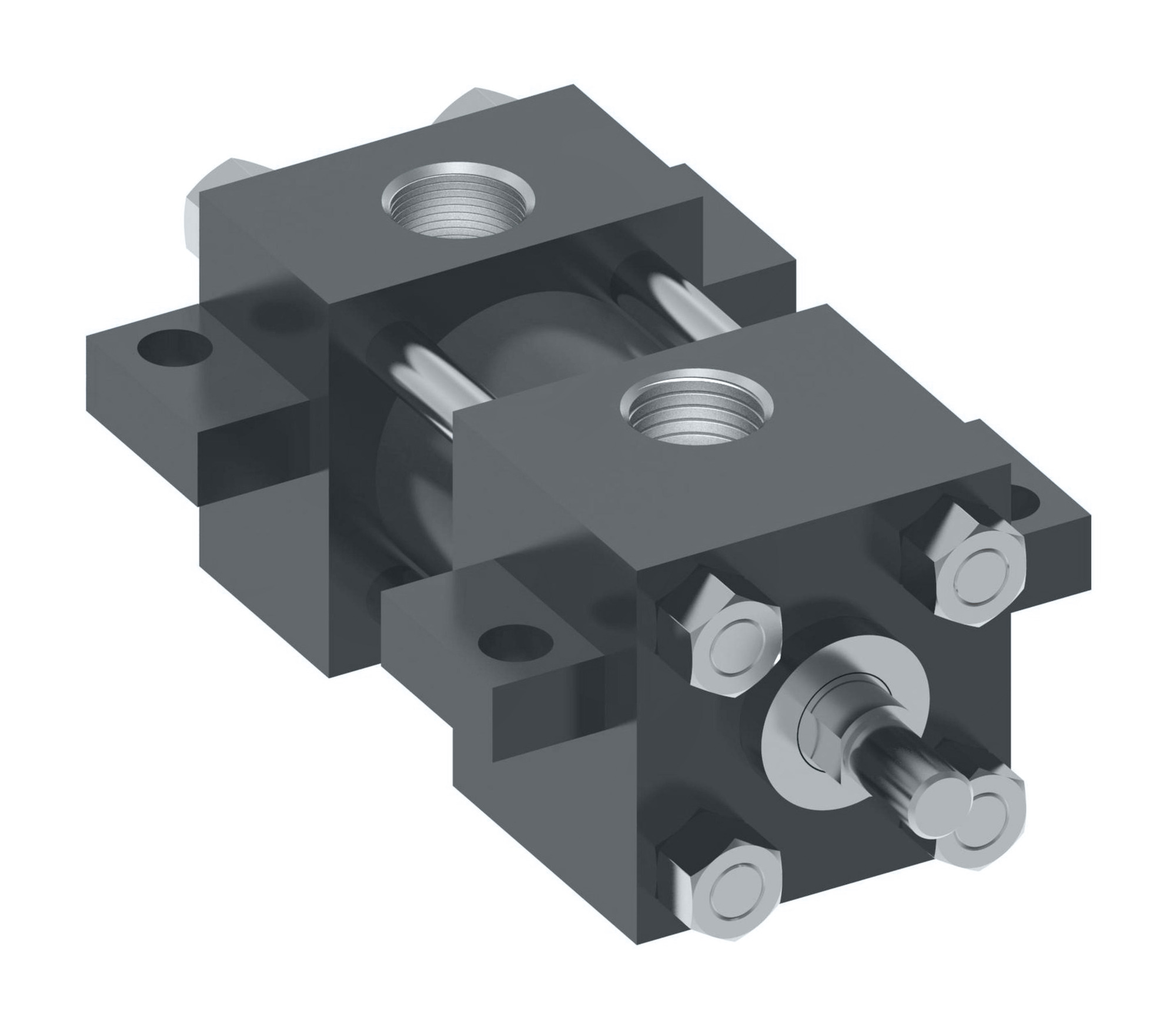

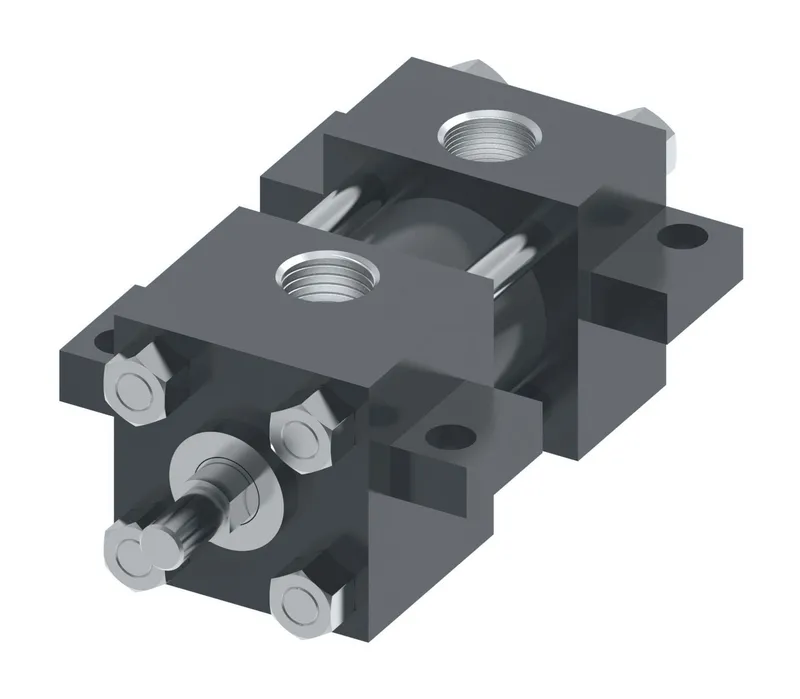

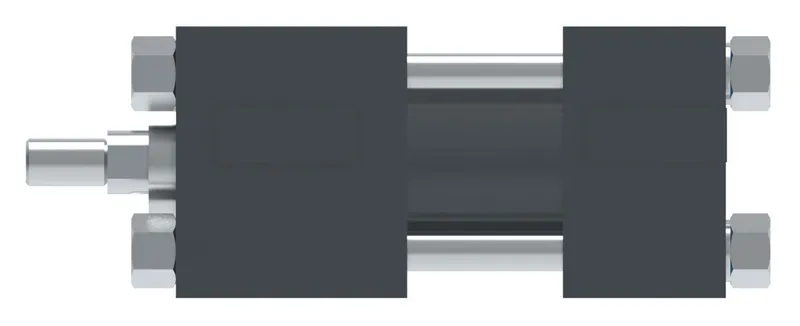

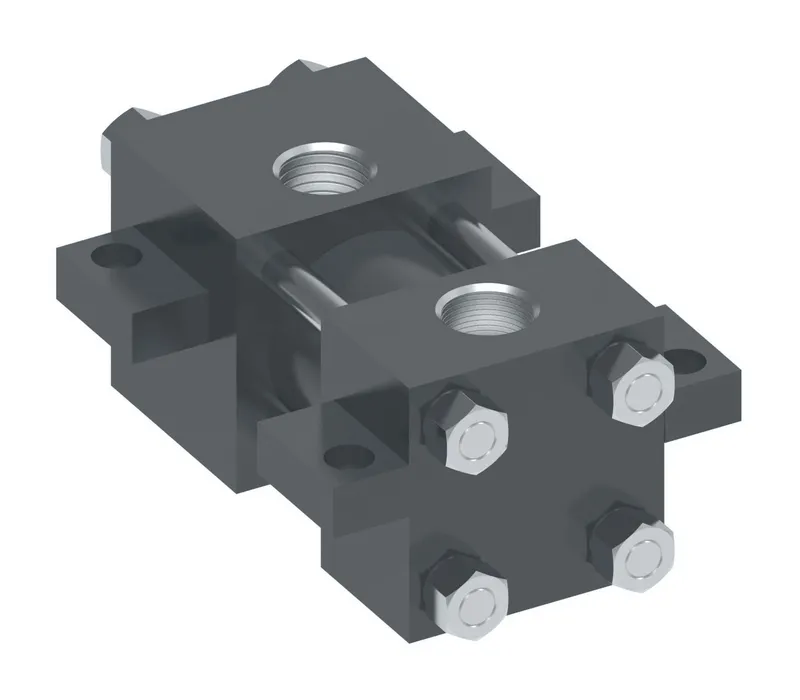

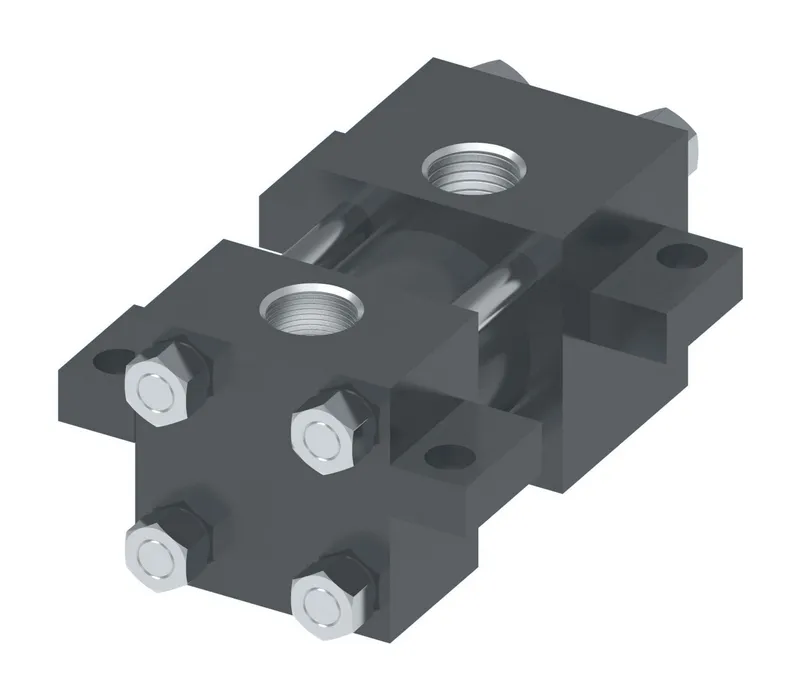

CYLINDER N5 B2.50 R1.00 S2.00 IN M19, N5H-2.50X2.00-N-1.00-2-S-H-R-3-3-HA01K4
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Hydraulic cylinders |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can HA01K4 be shipped?
HA01K4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up HA01K4 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for HA01K4 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for HA01K4, subject to availability and destination.
Danfoss CYLINDER N5 B2.50 R1.00 S2.00 IN M19, N5H-2.50X2.00-N-1.00-2-S-H-R-3-3-HA01K4, manufacturer part number HA01K4. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Brand | Vickers by Danfoss |
| Bore Diameter | 2.50 inch |
| Mounting style | Centerline lug |
| Rod seal | Urethane Ultra-Seal |
| Piston seal | Cast Iron Rings |
| Port Type | SAE port |
| Port Size | SAE#10 |
| Head Port Location | Head port location 3 |
| Cap Port Location | Cap port location 4 |
| Cushion location | Non-cushioned |
| Customer part number | 5249078 |
| First rod end type | Male, small (standard) |
| Model Code 1 | N5H-2.50X2.00-N-1.00-2-S-H-R-3 |
| Model Code 2 | -3-HA01K4 |
| Net stroke length | 2.00 inch |
| Paint specification | Black paint |
| Rod flats | 2 flats |
| Series | N5 Series-Hydraulic |
| Stop tube IN | 0.00 |
| Sub brand | Hydro-Line |
| Test pressure PSI | 3000 |
| Working pressure PSI | 3000.00 |
