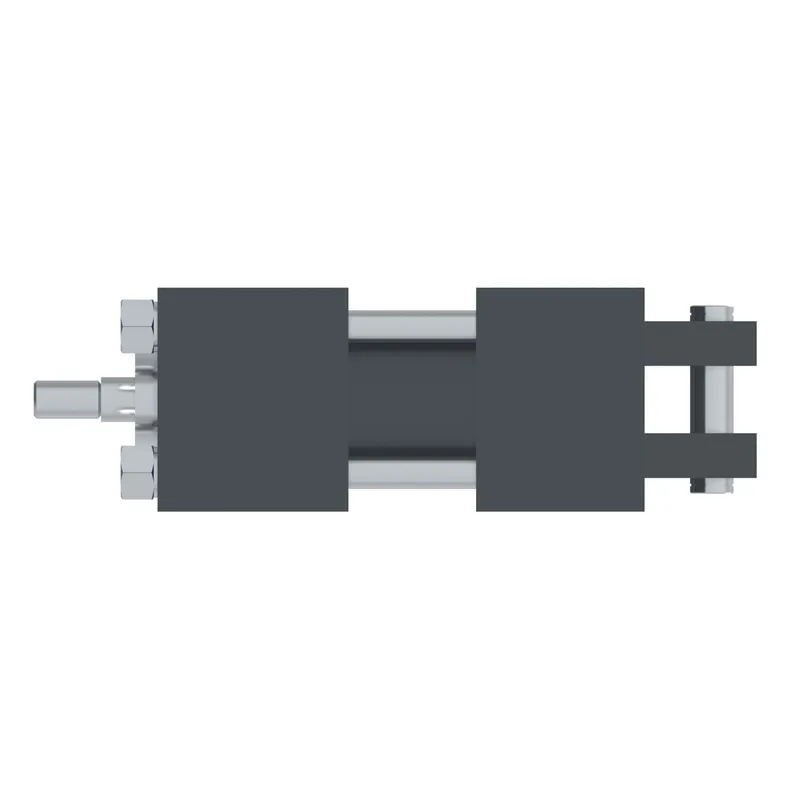

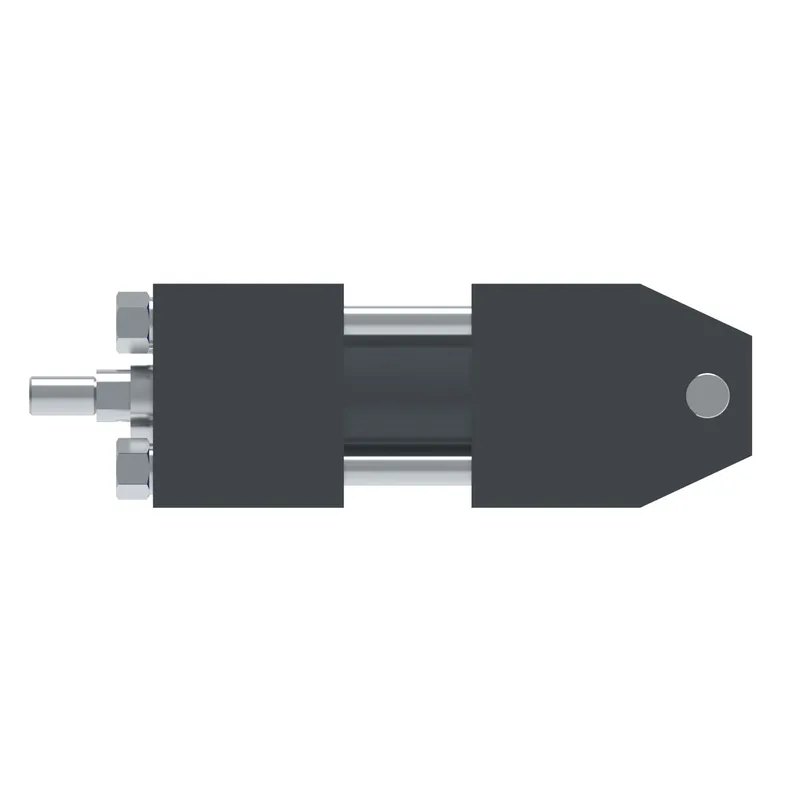

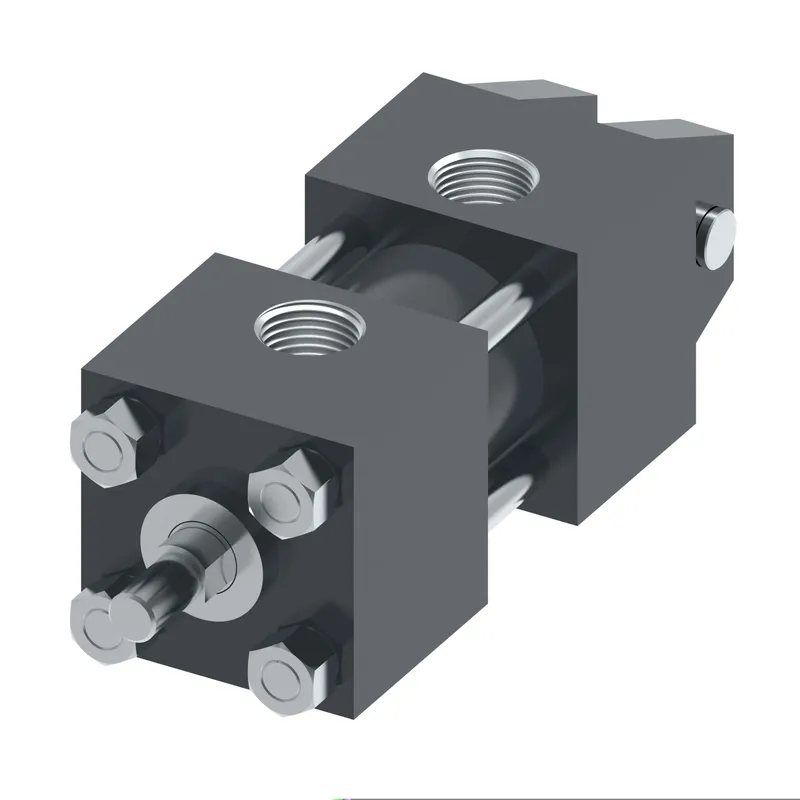

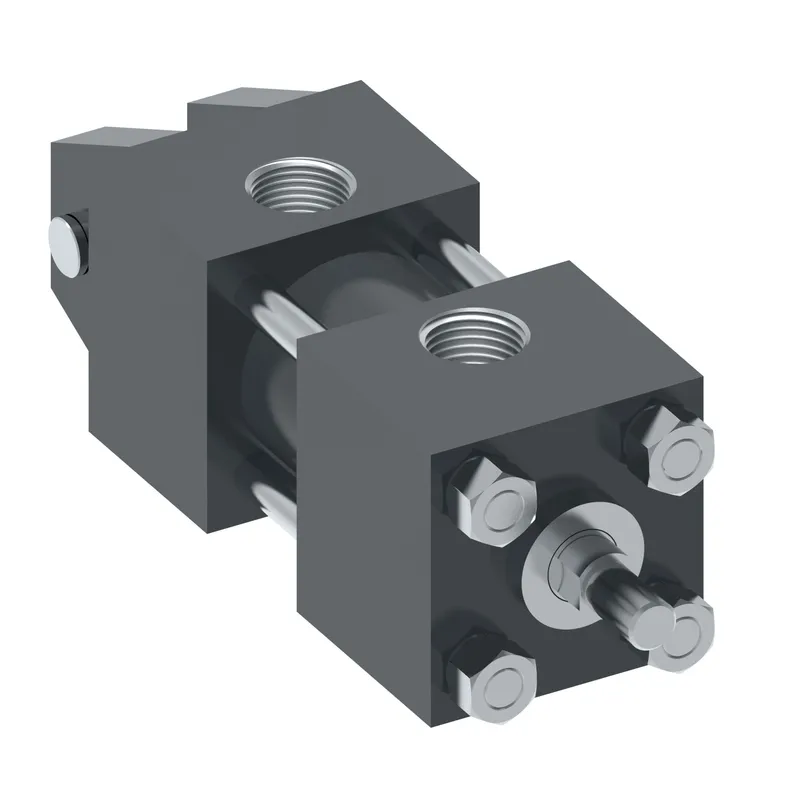

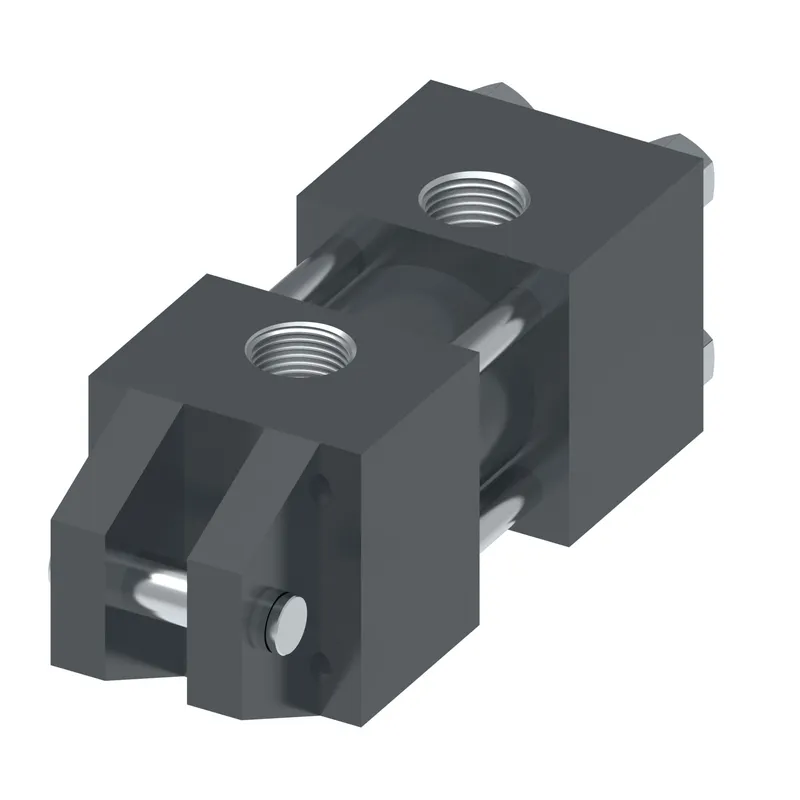

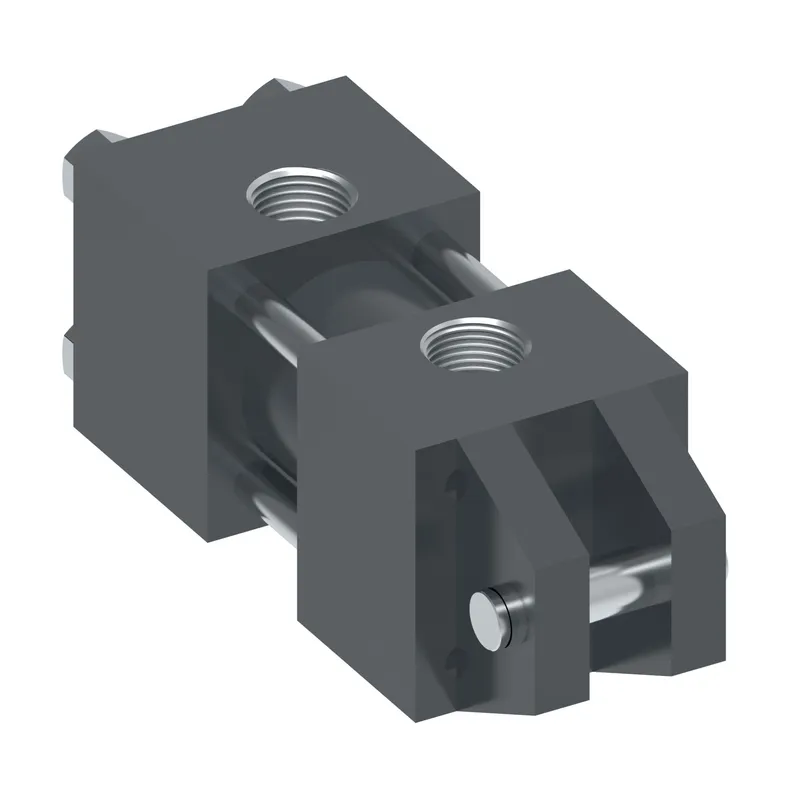

CYLINDER N5 B2.50 R1.75 S10.50 IN M50, N5DC-2.50X10.50-B-1.75-2M-S-J-R-4-4-HA02LK

Name: CYLINDER N5 B2.50 R1.75 S10.50 IN M50, N5DC-2.50X10.50-B-1.75-2M-S-J-R-4-4-HA02LK
Brand: Danfoss (Drives)
SKU: HA02LK

MPN: HA02LK · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Hydraulic cylinders
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can HA02LK be shipped?

HA02LK is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up HA02LK in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for HA02LK and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for HA02LK, subject to availability and destination.

Danfoss CYLINDER N5 B2.50 R1.75 S10.50 IN M50, N5DC-2.50X10.50-B-1.75-2M-S-J-R-4-4-HA02LK, manufacturer part number HA02LK. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Brand	Vickers by Danfoss
Bore Diameter	2.50 inch
Mounting style	Detachable clevis
Rod seal	Ultra-Seal with scraper
Piston seal	Cast Iron Rings
Port Type	SAE port
Port Size	SAE#10
Head Port Location	Head port location 4
Cap Port Location	Cap port location 3
Cushion location	Cushioned both ends
Customer end thread length	1.625
Customer end thread size	1.000-14
Customer part number	HDV-10-B50
First rod end type	Male, small (standard)
Model Code 1	N5DC-2.50X10.50-B-1.75-2M-S-J-
Model Code 2	R-4-4-HA02LK
Net stroke length	10.50 inch
Paint specification	Black paint
Rod flats	2 flats
Series	N5 Series-Hydraulic
Stop tube IN	0.00
Sub brand	Hydro-Line
Test pressure PSI	3000
Working pressure PSI	3000.00
