Actuators and indicators, 22 mm, metal, shiny Parts
Compare Actuators and indicators, 22 mm, metal, shiny
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | outer diameter of the actuating element | mechanical service life (operating cycles) typical | Net Weight | mounting height | installation width |
|---|---|---|---|---|---|
| 3SU1152-0AB20-1CA0-Z Y10 | 29.45 mm | 3 000 000 | 73.5 g | 11 mm | 29.5 mm |
| 3SU1152-0AB20-1CA0-Z X90 | 29.45 mm | 3 000 000 | 73.5 g | 11 mm | 29.5 mm |
| 3SU1152-0AB20-1CA0 | 29.45 mm | 3 000 000 | 73.5 g | 11 mm | 29.5 mm |
| 3SU1152-0AB00-1FA0-Z Y19 | 29.45 mm | 3 000 000 | 80.5 g | 11 mm | 29.5 mm |
| 3SU1152-0AB00-1FA0-Z Y15 | 29.45 mm | 3 000 000 | 80.5 g | 11 mm | 29.5 mm |
| 3SU1152-0AB00-1FA0-Z Y13 | 29.45 mm | 3 000 000 | 80.5 g | 11 mm | 29.5 mm |
| 3SU1050-1HK20-0AA0-Z X90 | 40 mm | 300 000 | 152.5 g | 81.3 mm | 40 mm |
| 3SU1050-1HK20-0AA0 | 40 mm | 300 000 | 152.5 g | 81.3 mm | 40 mm |
| 3SU1050-1HH20-0AA0-Z X90 | 40 mm | 300 000 | 113.5 g | 67.1 mm | 40 mm |
| 3SU1050-1HH20-0AA0 | 40 mm | 300 000 | 113.5 g | 67.1 mm | 40 mm |
| 3SU1050-1HG20-0AA0-Z X90 | 40 mm | 300 000 | 114.5 g | 67.1 mm | 40 mm |
| 3SU1050-1HG20-0AA0 | 40 mm | 300 000 | 114.5 g | 67.1 mm | 40 mm |
| 3SU1050-1HB20-0AA0-Z Y19 | 40 mm | 300 000 | 92 g | 45.3 mm | 40 mm |
| 3SU1050-1HB20-0AA0-Z Y15 | 40 mm | 300 000 | 92 g | 45.3 mm | 40 mm |
| 3SU1050-1HB20-0AA0-Z Y13 | 40 mm | 300 000 | 92 g | 45.3 mm | 40 mm |
| 3SU1050-1HB20-0AA0-Z Y12 | 40 mm | 300 000 | 92 g | 45.3 mm | 40 mm |
| 3SU1050-1HB20-0AA0-Z Y11 | 40 mm | 300 000 | 92 g | 45.3 mm | 40 mm |
| 3SU1050-1HB20-0AA0-Z Y10 | 40 mm | 300 000 | 92 g | 45.3 mm | 40 mm |
| 3SU1150-4BF01-3PA0-Z Y12 | 29.5 mm | 300 000 | 113.5 g | 49.4 mm | 29.5 mm |
| 3SU1150-4BF01-3PA0-Z Y11 | 29.5 mm | 300 000 | 113.5 g | 49.4 mm | 29.5 mm |

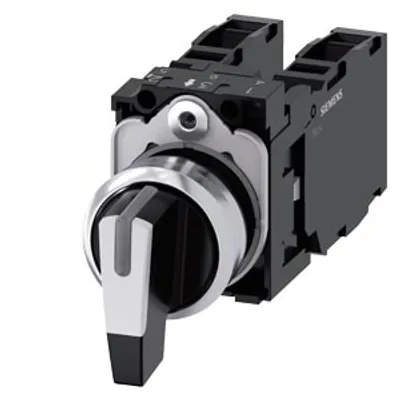

| 3SU1150-2CM60-1NA0 | 32.3 mm | 1 000 000 | 86.5 g | 28.8 mm | 32.3 mm |
| 3SU1051-1CA40-0AA0-Z Y19 | 60 mm | 500 000 | 66.8 g | 27.5 mm | 60 mm |
| 3SU1051-1CA40-0AA0-Z Y15 | 60 mm | 500 000 | 66.8 g | 27.5 mm | 60 mm |
| 3SU1051-1CA40-0AA0-Z Y13 | 60 mm | 500 000 | 66.8 g | 27.5 mm | 60 mm |
Common to all listed parts
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| reference code according to IEC 81346-2 | S |
| Substance Prohibitance (day/month/year) | 10/01/2014 |
| shape of the installation opening | round |
| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
| Environmental Product Declaration(EPD) | Yes |
