Actuators and indicators, 22 mm, metal, shiny Parts
Compare Actuators and indicators, 22 mm, metal, shiny
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | color of the actuating element | mechanical service life (operating cycles) typical | Net Weight | mounting height | installation depth |
|---|---|---|---|---|---|
| 3SU1251-0EB70-0AA0-Z Y11 | clear | 5 000 000 | 102.5 g | 20.3 mm | 30.9 mm |
| 3SU1156-6AA70-1AA0-Z Y19 | — | — | 55.5 g | 11.8 mm | 49.7 mm |
| 3SU1156-6AA70-1AA0-Z Y15 | — | — | 55.5 g | 11.8 mm | 49.7 mm |
| 3SU1156-6AA70-1AA0-Z Y13 | — | — | 55.5 g | 11.8 mm | 49.7 mm |
| 3SU1156-6AA70-1AA0-Z Y12 | — | — | 55.5 g | 11.8 mm | 49.7 mm |
| 3SU1156-6AA70-1AA0-Z Y11 | — | — | 55.5 g | 11.8 mm | 49.7 mm |
| 3SU1156-6AA70-1AA0-Z Y10 | — | — | 55.5 g | 11.8 mm | 49.7 mm |
| 3SU1156-6AA70-1AA0-Z X90 | — | — | 55.5 g | 11.8 mm | 49.7 mm |
| 3SU1051-0BB70-0AA0-Z Y15 | clear | 3 000 000 | 0.037 kg | 16.2 mm | 24.3 mm |
| 3SU1051-0BB70-0AA0-Z Y13 | clear | 3 000 000 | 0.037 kg | 16.2 mm | 24.3 mm |
| 3SU1051-0BB70-0AA0-Z Y12 | clear | 3 000 000 | 0.037 kg | 16.2 mm | 24.3 mm |
| 3SU1051-0BB70-0AA0-Z Y11 | clear | 3 000 000 | 0.037 kg | 16.2 mm | 24.3 mm |

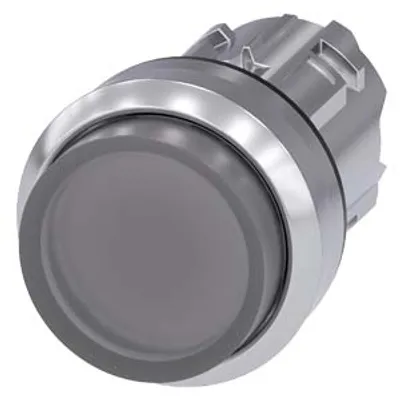

| 3SU1051-0BB70-0AA0-Z Y10 | clear | 3 000 000 | 0.037 kg | 16.2 mm | 24.3 mm |
| 3SU1051-0BB70-0AA0-Z X90 | clear | 3 000 000 | 0.037 kg | 16.2 mm | 24.3 mm |
| 3SU1051-0BB70-0AA0 | clear | 3 000 000 | 0.037 kg | 16.2 mm | 24.3 mm |
| 3SU1052-2BL10-0AA0-Z X90 | black | 1 000 000 | 44.5 g | 28.8 mm | 25.4 mm |
| 3SU1050-3EC10-0AA0-Z X90 | — | 1 000 000 | 35 g | 22.3 mm | 26.3 mm |
| 3SU1050-3BB61-0AK0 | white / black | 2 000 000 | 70 g | 18.7 mm | 25.5 mm |
| 3SU1050-3BB61-0AA0-Z Y19 | white / black | 2 000 000 | 64.5 g | 18.7 mm | 25.5 mm |
| 3SU1051-0AA60-0AA0-Z X90 | white | 500 000 | 0.035 kg | 11 mm | 24.3 mm |
| 3SU1051-0AA60-0AA0 | white | 500 000 | 0.035 kg | 11 mm | 24.3 mm |
| 3SU1051-0AA50-0AA0-Z Y19 | blue | 500 000 | 0.037 kg | 11 mm | 24.3 mm |
| 3SU1050-0AB40-0AC0 | green | 10 000 000 | 35 g | 11 mm | 24.3 mm |
| 3SU1050-0AB40-0AA0-Z Y11 | green | 10 000 000 | 36 g | 11 mm | 24.3 mm |
Common to all listed parts
| number of command points | 1 |
| material of the actuating element | plastic |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shape of the installation opening | round |
| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
| global warming potential [CO2 eq] total | 0.593 kg |
