Actuators and indicators, 22 mm, metal, shiny Parts
Compare Actuators and indicators, 22 mm, metal, shiny
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | color of the actuating element | shape of the actuating element | Net Weight | height | mounting height |
|---|---|---|---|---|---|

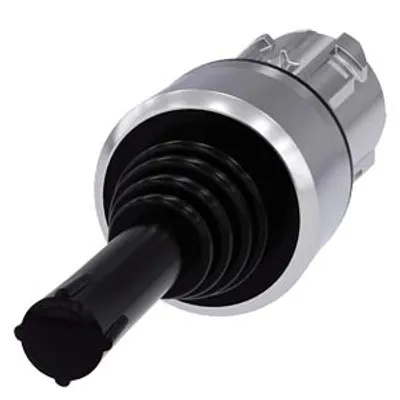

| 3SU1050-7AC88-0AA0-Z Y19 | black | Extended handle | 77.5 g | 30.5 mm | 71.3 mm |
| 3SU1050-7AA88-0AA0-Z X90 | black | Extended handle | 82.5 g | 30.5 mm | 71.3 mm |
| 3SU1050-5PL21-0AA0-Z Y10 | — | Key | 150.5 g | 29.5 mm | 56.3 mm |
| 3SU1050-5PL11-0AA0-Z Y10 | — | Key | 147.5 g | 29.5 mm | 56.3 mm |
| 3SU1051-0BB30-0AA0-Z X90 | yellow | round | 0.037 kg | 29.5 mm | 16.2 mm |
| 3SU1051-0BB30-0AA0 | yellow | round | 0.037 kg | 29.5 mm | 16.2 mm |
| 3SU1051-0BB20-0AA0-Z Y19 | red | round | 0.037 kg | 29.5 mm | 16.2 mm |

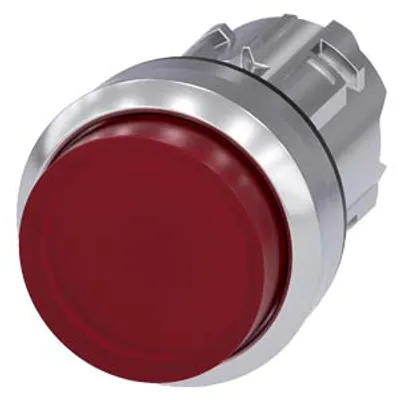

| 3SU1051-0BB20-0AA0-Z Y15 | red | round | 0.037 kg | 29.5 mm | 16.2 mm |
| 3SU1051-0BB20-0AA0-Z Y13 | red | round | 0.037 kg | 29.5 mm | 16.2 mm |
| 3SU1051-0BB20-0AA0-Z Y12 | red | round | 0.037 kg | 29.5 mm | 16.2 mm |
| 3SU1052-2CC60-0AA0 | white | Handle | 46.5 g | 44.8 mm | 28.8 mm |
| 3SU1052-2CC10-0AA0-Z X90 | black | Handle | 46.5 g | 44.8 mm | 28.8 mm |
| 3SU1051-0AB20-0AA0-Z Y13 | red | round | 35 g | 29.5 mm | 11 mm |
| 3SU1051-0AB20-0AA0-Z Y12 | red | round | 35 g | 29.5 mm | 11 mm |
| 3SU1051-0AA70-0AA0-Z X90 | clear | round | 0.035 kg | 29.5 mm | 11 mm |
| 3SU1051-0AA70-0AA0 | clear | round | 0.035 kg | 29.5 mm | 11 mm |
| 3SU1051-0AA60-0AA0-Z Y19 | white | round | 0.035 kg | 29.5 mm | 11 mm |
| 3SU1051-0AA60-0AA0-Z Y15 | white | round | 0.035 kg | 29.5 mm | 11 mm |
| 3SU1051-0AA60-0AA0-Z Y13 | white | round | 0.035 kg | 29.5 mm | 11 mm |
| 3SU1150-4BF11-1BA0-Z Y11 | silver | Key | 107.5 g | 40 mm | 49.4 mm |

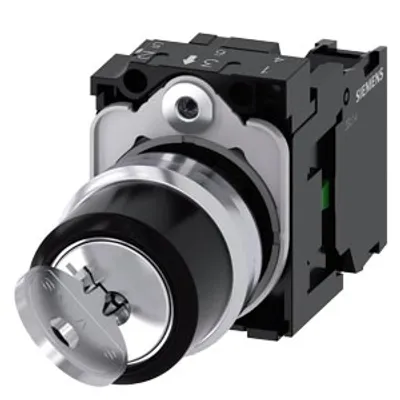

| 3SU1150-4BF11-1BA0-Z Y10 | silver | Key | 107.5 g | 40 mm | 49.4 mm |
| 3SU1150-4BF11-1BA0-Z X90 | silver | Key | 107.5 g | 40 mm | 49.4 mm |
| 3SU1150-4BF01-3PA0-Z X90 | silver | Key | 113.5 g | 40 mm | 49.4 mm |
| 3SU1150-4BF01-3PA0 | silver | Key | 113.5 g | 40 mm | 49.4 mm |
Common to all listed parts
| product component front ring | Yes |
| material of the front ring | Metal, high gloss |
| color of the front ring | silver |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| reference code according to IEC 81346-2 | S |
| shape of the installation opening | round |
| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
