Motor controllers Parts

B&R

I/O module, 1 full bridge for controlling stepper motors

B&R

I/O module, 4-channel PWM motor bridge

B&R

I/O module, 1 full bridge for controlling stepper motors

B&R

I/O module, 1 full bridge for controlling stepper motors

B&R

I/O module, 2-channel PWM motor bridge

B&R

I/O module, 3 full bridge outputs

B&R

I/O module, 4 half bridge outputs

B&R

I/O module, 4-channel PWM motor bridge

B&R

I/O module, 1 full bridge for controlling stepper motors

B&R

I/O module, 1 full bridge for controlling stepper motors

Compare Motor controllers

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Quantity	Nominal current	DC bus capacitance	Input resistance	Temperature – Vertical mounting orientation

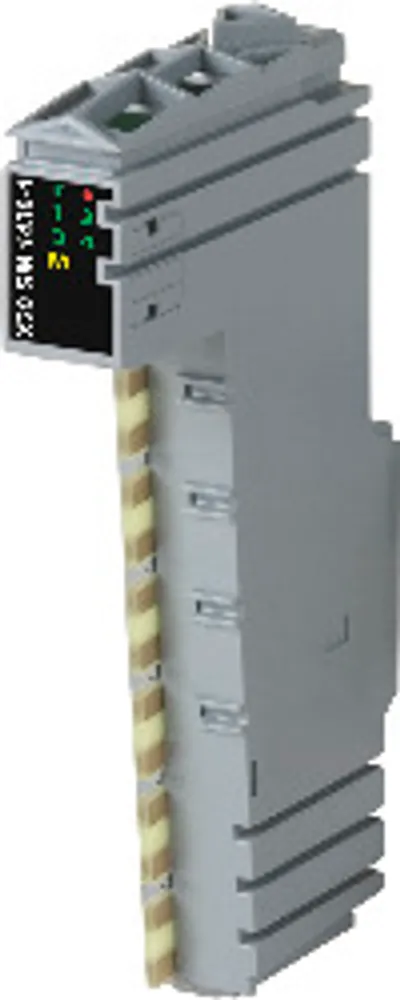

X20SM1436-1	1	2.5 A	100 µF	Typ. 10 kΩ	-25 to 50°C

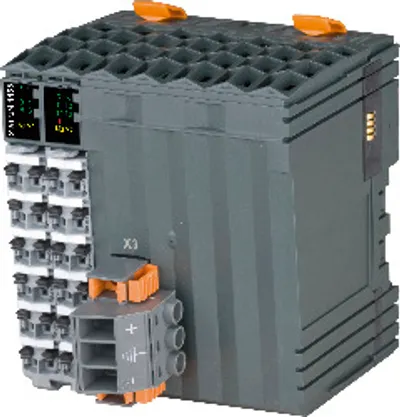

X20MM4455	2	6 A	680 μF	Typ. 2.7 kΩ	Not permitted
X20SM1446-1	1	5 A	100 µF	Typ. 10 kΩ	-25 to 40°C

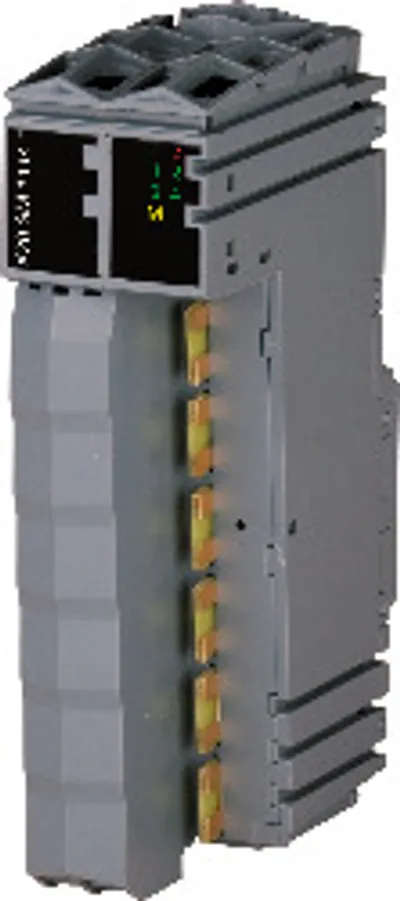

X20SM1444-1	1	5 A	300 µF	Typ. 8.2 kΩ	-20 to +40°C

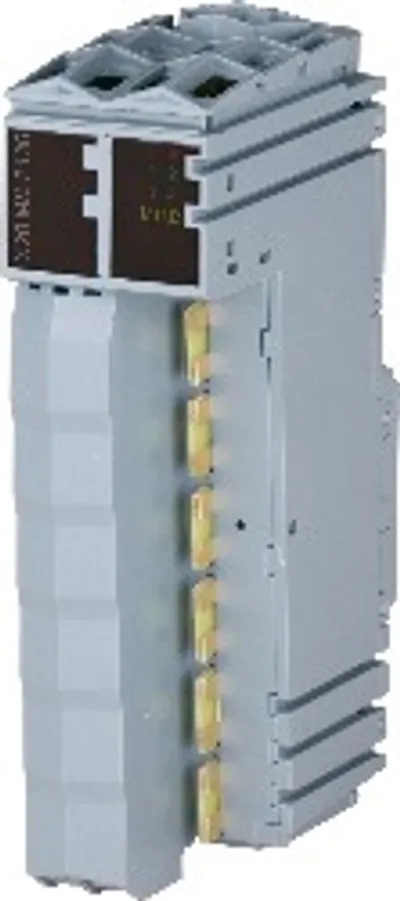

X20MM2436	4	3 A	100 μF	Typ. 18 kΩ	Not permitted
X20MM3332	3	3 A	—	—	Not permitted
X20MM4331	4	3 A	—	—	Not permitted
X20MM4456	16	6 A	680 μF	Typ. 6 kΩ	Not permitted
X20SM1426	1	1 A	57 µF	Typ. 18.2 kΩ	Not permitted
X20SM1436	1	3 A	100 µF	Typ. 18.2 kΩ	Not permitted

Diagnostics – Module run/error	Yes, using LED status indicator and software
Diagnostics – Output	Yes, using LED status indicator and software
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Status indicators	I/O function per channel, operating state, module status
Mounting orientation – Horizontal	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
