Actuators and indicators, 22 mm, round, plastic, black Parts
Compare Actuators and indicators, 22 mm, round, plastic, black
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | principle of operation of the actuating element | shape of the actuating element | Net Weight | mounting height | installation depth |
|---|---|---|---|---|---|
| 3SU1001-0DB50-0AA0-Z Y12 | momentary contact type | round | 20 g | 18.1 mm | 24.3 mm |
| 3SU1001-0DB50-0AA0-Z Y11 | momentary contact type | round | 20 g | 18.1 mm | 24.3 mm |

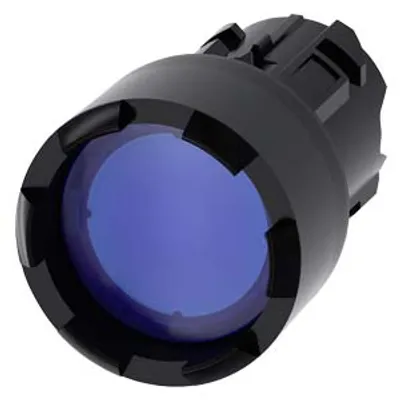

| 3SU1001-0DB50-0AA0-Z Y10 | momentary contact type | round | 20 g | 18.1 mm | 24.3 mm |
| 3SU1001-0DB50-0AA0-Z X90 | momentary contact type | round | 20 g | 18.1 mm | 24.3 mm |
| 3SU1000-4BF11-0AA0-Z Y19 | latching, 90° (10:30 h/13:30 h) | Key | 50.5 g | 49.4 mm | 25.4 mm |
| 3SU1000-4BF11-0AA0-Z Y15 | latching, 90° (10:30 h/13:30 h) | Key | 50.5 g | 49.4 mm | 25.4 mm |
| 3SU1000-4BF11-0AA0-Z Y12 | latching, 90° (10:30 h/13:30 h) | Key | 50.5 g | 49.4 mm | 25.4 mm |
| 3SU1000-4FL51-0AA0-Z Y11 | latching, 2x45° (10:30 h/12 h/13:30 h) | Key | 84.5 g | 51.7 mm | 25.4 mm |
| 3SU1000-4FL51-0AA0-Z Y10 | latching, 2x45° (10:30 h/12 h/13:30 h) | Key | 84.5 g | 51.7 mm | 25.4 mm |
| 3SU1000-4FL51-0AA0-Z X90 | latching, 2x45° (10:30 h/12 h/13:30 h) | Key | 84.5 g | 51.7 mm | 25.4 mm |
| 3SU1000-3AB42-0AA0-Z Y19 | momentary contact type | oval | 0.022 kg | 14.4 mm | 25.7 mm |
| 3SU1000-3AB42-0AA0-Z Y15 | momentary contact type | oval | 0.022 kg | 14.4 mm | 25.7 mm |
| 3SU1000-3AB42-0AA0-Z Y13 | momentary contact type | oval | 0.022 kg | 14.4 mm | 25.7 mm |
| 3SU1100-7AE10-1QA0-Z Y15 | latching | Extended handle | 98.5 g | 71.3 mm | 53.7 mm |
| 3SU1100-7AE10-1QA0-Z Y12 | latching | Extended handle | 98.5 g | 71.3 mm | 53.7 mm |
| 3SU1100-7AE10-1QA0-Z Y11 | latching | Extended handle | 98.5 g | 71.3 mm | 53.7 mm |
| 3SU1100-7AE10-1QA0-Z Y10 | latching | Extended handle | 98.5 g | 71.3 mm | 53.7 mm |
| 3SU1100-7AE10-1QA0-Z X90 | latching | Extended handle | 98.5 g | 71.3 mm | 53.7 mm |
| 3SU1100-7AE10-1QA0 | latching | Extended handle | 98.5 g | 71.3 mm | 53.7 mm |
| 3SU1100-7AD10-1NA0-Z Y19 | momentary contact type | Extended handle | 81.5 g | 71.3 mm | 53.7 mm |
| 3SU1000-3BB61-0AK0-Z X90 | momentary contact type | oval | 27 g | 18.7 mm | 25.5 mm |
| 3SU1000-3BB61-0AK0 | momentary contact type | oval | 27 g | 18.7 mm | 25.5 mm |
| 3SU1000-3BB61-0AA0-Z Y19 | momentary contact type | oval | 26 g | 18.7 mm | 25.5 mm |
| 3SU1000-3BB61-0AA0-Z Y15 | momentary contact type | oval | 26 g | 18.7 mm | 25.5 mm |
Common to all listed parts
| product component front ring | Yes |
| material of the front ring | plastic |
| color of the front ring | black |
| reference code according to IEC 81346-2 | S |
| Substance Prohibitance (day/month/year) | 10/01/2014 |
| shape of the installation opening | round |
| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
