Actuators and indicators, 22 mm, round, plastic, black Parts
Compare Actuators and indicators, 22 mm, round, plastic, black
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | design of the actuating element | color of the actuating element | outer diameter of the actuating element | mechanical service life (operating cycles) typical | Net Weight |
|---|---|---|---|---|---|
| 3SU1100-0AB60-1FA0-Z Y12 | Button, flat | white | 29.45 mm | 10 000 000 | 55.5 g |
| 3SU1100-0AB60-1FA0-Z Y11 | Button, flat | white | 29.45 mm | 10 000 000 | 55.5 g |
| 3SU1100-0AB60-1FA0-Z Y10 | Button, flat | white | 29.45 mm | 10 000 000 | 55.5 g |
| 3SU1100-0AB60-1FA0-Z X90 | Button, flat | white | 29.45 mm | 10 000 000 | 55.5 g |
| 3SU1100-0AB60-1FA0 | Button, flat | white | 29.45 mm | 10 000 000 | 55.5 g |
| 3SU1100-0AB60-1BA0-Z Y19 | Button, flat | white | 29.45 mm | 10 000 000 | 45.5 g |
| 3SU1100-2BM60-1LA0-Z Y12 | Selector, short | white | 32.3 mm | 1 000 000 | 76.5 g |
| 3SU1100-2BM60-1LA0-Z Y11 | Selector, short | white | 32.3 mm | 1 000 000 | 76.5 g |
| 3SU1100-2BM60-1LA0-Z Y10 | Selector, short | white | 32.3 mm | 1 000 000 | 76.5 g |
| 3SU1100-2BM60-1LA0-Z X90 | Selector, short | white | 32.3 mm | 1 000 000 | 76.5 g |
| 3SU1100-2BL60-1LA0-Z Y12 | Selector, short | white | 32.3 mm | 1 000 000 | 77.5 g |
| 3SU1100-2BL60-1LA0-Z Y11 | Selector, short | white | 32.3 mm | 1 000 000 | 77.5 g |
| 3SU1100-2BL60-1LA0-Z Y10 | Selector, short | white | 32.3 mm | 1 000 000 | 77.5 g |
| 3SU1100-2BL60-1LA0-Z X90 | Selector, short | white | 32.3 mm | 1 000 000 | 77.5 g |
| 3SU1100-2BL60-1LA0 | Selector, short | white | 32.3 mm | 1 000 000 | 77.5 g |
| 3SU1100-2BL10-1NA0 | Selector, short | black | 32.3 mm | 1 000 000 | 60.5 g |
| 3SU1100-2BF60-3MA0-Z Y19 | Selector, short | white | 32.3 mm | 1 000 000 | 60.5 g |
| 3SU1001-1AA40-0AA0-Z Y12 | illuminated | green | 30 mm | 500 000 | 0.026 kg |
| 3SU1001-1AA40-0AA0-Z Y11 | illuminated | green | 30 mm | 500 000 | 0.026 kg |
| 3SU1001-1AA40-0AA0-Z Y10 | illuminated | green | 30 mm | 500 000 | 0.026 kg |
| 3SU1001-1AA40-0AA0-Z X90 | illuminated | green | 30 mm | 500 000 | 0.026 kg |
| 3SU1001-0DB50-0AA0-Z Y19 | Flat button | blue | 29.5 mm | 3 000 000 | 20 g |
| 3SU1001-0DB50-0AA0-Z Y15 | Flat button | blue | 29.5 mm | 3 000 000 | 20 g |

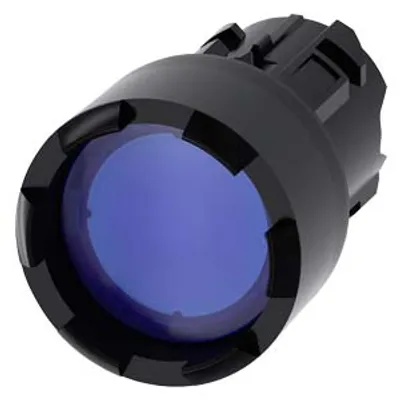

| 3SU1001-0DB50-0AA0-Z Y13 | Flat button | blue | 29.5 mm | 3 000 000 | 20 g |
Common to all listed parts
| material of the actuating element | plastic |
| shape of the actuating element | round |
| product component front ring | Yes |
| material of the front ring | plastic |
| color of the front ring | black |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| reference code according to IEC 81346-2 | S |
