Actuators and indicators, 22 mm, round, plastic, black Parts
Compare Actuators and indicators, 22 mm, round, plastic, black
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | design of the actuating element | mechanical service life (operating cycles) typical | Net Weight | mounting height | installation depth |
|---|---|---|---|---|---|
| 3SU1103-0AB30-3FA0-Z X90 | Button, flat | 3 000 000 | 59.5 g | 11 mm | 71.7 mm |
| 3SU1103-0AB30-3FA0 | Button, flat | 3 000 000 | 59.5 g | 11 mm | 71.7 mm |
| 3SU1103-0AB30-1FA0-Z Y19 | Button, flat | 3 000 000 | 62.5 g | 11 mm | 71.7 mm |
| 3SU1103-0AB30-1FA0-Z Y15 | Button, flat | 3 000 000 | 62.5 g | 11 mm | 71.7 mm |
| 3SU1000-0BB30-0AA0-Z X90 | Raised button | 10 000 000 | 19 g | 16.2 mm | 24.3 mm |
| 3SU1000-0BB30-0AA0 | Raised button | 10 000 000 | 19 g | 16.2 mm | 24.3 mm |
| 3SU1000-0BB20-0AA0-Z Y19 | Raised button | 10 000 000 | 0.016 kg | 16.2 mm | 24.3 mm |
| 3SU1000-0BB20-0AA0-Z Y15 | Raised button | 10 000 000 | 0.016 kg | 16.2 mm | 24.3 mm |
| 3SU1000-0BB20-0AA0-Z Y13 | Raised button | 10 000 000 | 0.016 kg | 16.2 mm | 24.3 mm |
| 3SU1000-0BB20-0AA0-Z Y12 | Raised button | 10 000 000 | 0.016 kg | 16.2 mm | 24.3 mm |
| 3SU1000-0BB20-0AA0-Z Y11 | Raised button | 10 000 000 | 0.016 kg | 16.2 mm | 24.3 mm |
| 3SU1103-0AB30-1FA0-Z Y13 | Button, flat | 3 000 000 | 62.5 g | 11 mm | 71.7 mm |
| 3SU1103-0AB30-1FA0-Z Y11 | Button, flat | 3 000 000 | 62.5 g | 11 mm | 71.7 mm |

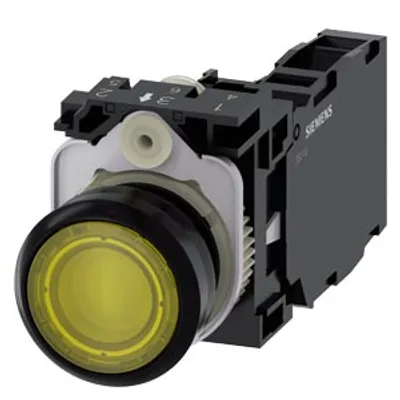

| 3SU1103-0AB30-1FA0-Z Y10 | Button, flat | 3 000 000 | 62.5 g | 11 mm | 71.7 mm |
| 3SU1103-0AB30-1FA0-Z X90 | Button, flat | 3 000 000 | 62.5 g | 11 mm | 71.7 mm |
| 3SU1103-0AB30-1FA0 | Button, flat | 3 000 000 | 62.5 g | 11 mm | 71.7 mm |
| 3SU1103-0AB30-1BA0-Z Y19 | Button, flat | 3 000 000 | 54.5 g | 11 mm | 49.7 mm |
| 3SU1000-0AA20-0AA0-Z Y15 | Flat button | 500 000 | 0.013 kg | 11 mm | 24.3 mm |
| 3SU1000-0AA20-0AA0-Z Y13 | Flat button | 500 000 | 0.013 kg | 11 mm | 24.3 mm |
| 3SU1000-0AA20-0AA0-Z Y12 | Flat button | 500 000 | 0.013 kg | 11 mm | 24.3 mm |
| 3SU1000-5PM01-0AA0-Z Y01+Y19 | — | 1 000 000 | 126.5 g | 56.3 mm | 25.4 mm |
| 3SU1000-5PM01-0AA0-Z Y01 | — | 1 000 000 | 126.5 g | 56.3 mm | 25.4 mm |
| 3SU1000-5PM01-0AA0-Z X90 | — | 1 000 000 | 126.5 g | 56.3 mm | 25.4 mm |
| 3SU1000-5PL41-0AA0-Z Y01+Y19 | — | 1 000 000 | 124.5 g | 56.3 mm | 25.4 mm |
Common to all listed parts
| product component front ring | Yes |
| design of the front ring | Standard |
| material of the front ring | plastic |
| color of the front ring | black |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| reference code according to IEC 81346-2 | S |
| Substance Prohibitance (day/month/year) | 10/01/2014 |
