SIVACON 8MF2, 8MF5 and 8MF6 System Cubicles Parts
Compare SIVACON 8MF2, 8MF5 and 8MF6 System Cubicles
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | product designation | design of the surface | depth | Net Weight | width |
|---|---|---|---|---|---|

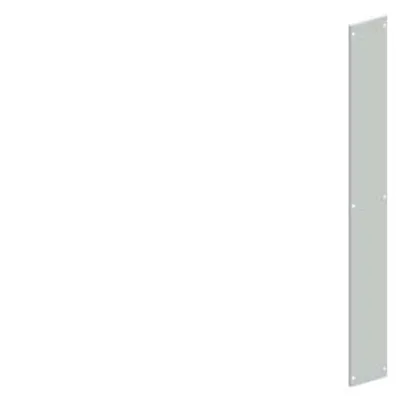

| 8MF4136 | side panel | Powder-coated | 600 mm | 28.165 kg | — |
| 8MF6086-4ES | EMC cubicle | powdered | 600 mm | 130 kg | 800 mm |
| 8MF6086-4E | standard system cubicle | powdered | 600 mm | 120 kg | 800 mm |
| 8MF6084-5R | standard system cubicle | powdered | 400 mm | 110 kg | 800 mm |
| 8MF6084-5E | standard system cubicle | powdered | 400 mm | 110 kg | 800 mm |
| 8MF6068-4E | standard system cubicle | powdered | 800 mm | 120 kg | 600 mm |
| 8MF6066-5R | standard system cubicle | powdered | 600 mm | 105 kg | 600 mm |
| 8MF6066-5E | standard system cubicle | powdered | 600 mm | 105 kg | 600 mm |

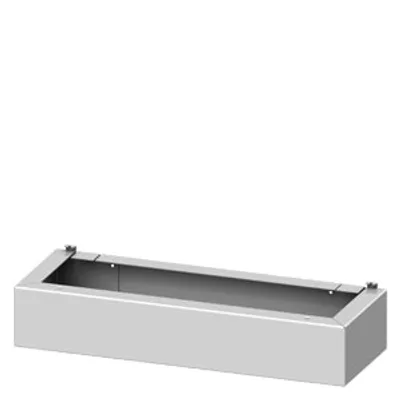

| 8MF4020 | Base | — | 400 mm | 8.2 kg | 900 mm |
| 8MF4086 | base plate with single subdivision | zinc plated | 600 mm | 7.054 kg | 800 mm |

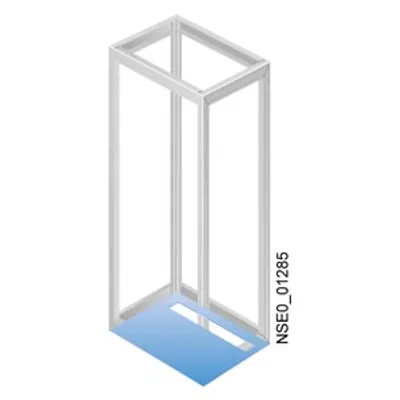

| 8MF4085 | base plate with single subdivision | zinc plated | 400 mm | 4.894 kg | 800 mm |

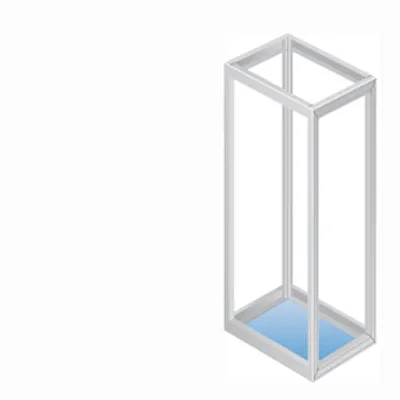

| 8MF4077 | one-piece base plate | zinc plated | 600 mm | 7.144 kg | 1 200 mm |
| 8MF6268-4ES | EMC cubicle | powdered | 800 mm | 155 kg | 600 mm |
| 8MF6268-4E | standard system cubicle | powdered | 800 mm | 145 kg | 600 mm |
| 8MF6266-5R | standard system cubicle | powdered | 600 mm | 135 kg | 600 mm |

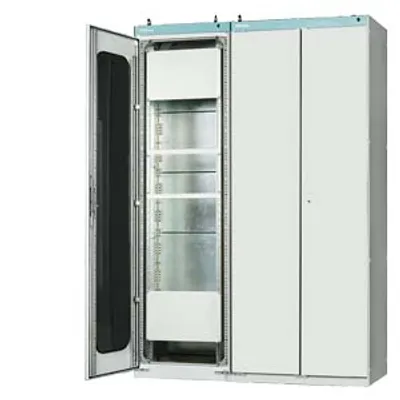

| 8MF6266-5KE | earthquake-resistant system cubicle | powdered | 600 mm | 155 kg | 600 mm |
| 8MF6266-5E | standard system cubicle | powdered | 600 mm | 135 kg | 600 mm |
| 8MF6266-4R | standard system cubicle | powdered | 600 mm | 135 kg | 600 mm |
| 8MF6266-4KE | earthquake-resistant system cubicle | powdered | 600 mm | 155 kg | 600 mm |
| 8MF6098-4R | standard system cubicle | powdered | 800 mm | 145 kg | 900 mm |
| 8MF6098-4E | standard system cubicle | powdered | 800 mm | 145 kg | 900 mm |
| 8MF6096-5R | standard system cubicle | powdered | 600 mm | 135 kg | 900 mm |
| 8MF6096-5E | standard system cubicle | powdered | 600 mm | 135 kg | 900 mm |

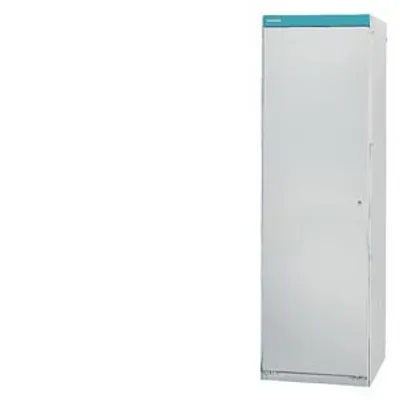

| 8MF6096-4R | standard system cubicle | powdered | 600 mm | 135 kg | 900 mm |
Common to all listed parts
| material | steel |
