SIVACON 8MF2, 8MF5 and 8MF6 System Cubicles Parts
Compare SIVACON 8MF2, 8MF5 and 8MF6 System Cubicles
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | product designation | design of the surface | width | depth | Net Weight |
|---|---|---|---|---|---|
| 8MF2264-5E | standard system cubicle | powdered | 600 mm | 400 mm | 130 kg |
| 8MF2098-4R | standard system cubicle | powdered | 900 mm | 800 mm | 145 kg |
| 8MF2098-4E | standard system cubicle | powdered | 900 mm | 800 mm | 145 kg |
| 8MF2096-5R | standard system cubicle | powdered | 900 mm | 600 mm | 135 kg |
| 8MF6266-4ES | EMC cubicle | powdered | 600 mm | 600 mm | 145 kg |
| 8MF6266-4E | standard system cubicle | powdered | 600 mm | 600 mm | 135 kg |
| 8MF6264-5R | standard system cubicle | powdered | 600 mm | 400 mm | 130 kg |
| 8MF6264-5E | standard system cubicle | powdered | 600 mm | 400 mm | 130 kg |
| 8MF6264-4R | standard system cubicle | powdered | 600 mm | 400 mm | 130 kg |
| 8MF6264-4ES | EMC cubicle | powdered | 600 mm | 400 mm | 140 kg |

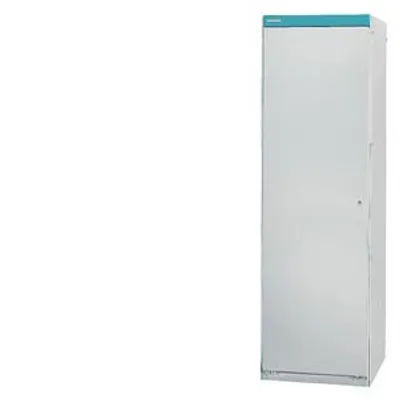

| 8MF6264-4E | standard system cubicle | powdered | 600 mm | 400 mm | 130 kg |
| 8MF6096-4E | standard system cubicle | powdered | 900 mm | 600 mm | 135 kg |
| 8MF6094-5R | standard system cubicle | powdered | 900 mm | 400 mm | 125 kg |
| 8MF6094-5E | standard system cubicle | powdered | 900 mm | 400 mm | 125 kg |
| 8MF6094-4R | standard system cubicle | powdered | 900 mm | 400 mm | 125 kg |
| 8MF6094-4ES | EMC cubicle | powdered | 900 mm | 400 mm | 135 kg |
| 8MF6094-4E | standard system cubicle | powdered | 900 mm | 400 mm | 125 kg |
| 8MF6088-5R | standard system cubicle | powdered | 800 mm | 800 mm | 165 kg |
| 8MF4146 | side panel | Powder-coated | — | 600 mm | 30.967 kg |
| 8MF4145 | side panel | Powder-coated | — | 400 mm | 20.629 kg |

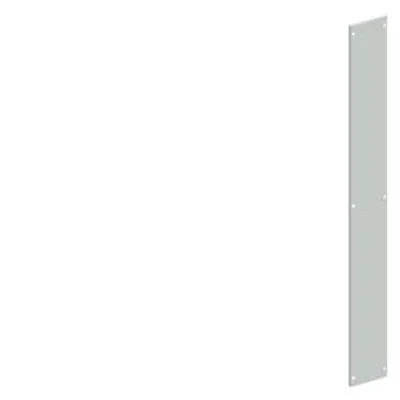

| 8MF4142 | side panel | Powder-coated | — | 800 mm | 41.151 kg |
| 8MF4141 | side panel | Powder-coated | — | 600 mm | 16.7 kg |
| 8MF4140 | side panel | Powder-coated | — | 400 mm | 20.473 kg |
| 8MF4137 | side panel | Powder-coated | — | 800 mm | 18.886 kg |
Common to all listed parts
| RAL color number | 7 035 |
| color | pebble grey |
| material | steel |
