SIVACON 8MF2, 8MF5 and 8MF6 System Cubicles Parts
Compare SIVACON 8MF2, 8MF5 and 8MF6 System Cubicles
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | product designation | height | width | depth | Net Weight |
|---|---|---|---|---|---|
| 8MF2224-4R | standard system cubicle | 2 200 mm | 1 200 mm | 400 mm | 185 kg |
| 8MF2224-4E | standard system cubicle | 2 200 mm | 1 200 mm | 400 mm | 185 kg |
| 8MF5864-4ES | EMC cubicle | 1 800 mm | 600 mm | 400 mm | 90 kg |
| 8MF5864-4E | standard system cubicle | 1 800 mm | 600 mm | 400 mm | 85 kg |
| 8MF5828-5R | standard system cubicle | 1 800 mm | 1 200 mm | 800 mm | 135 kg |
| 8MF5828-5E | standard system cubicle | 1 800 mm | 1 200 mm | 800 mm | 135 kg |
| 8MF5828-4R | standard system cubicle | 1 800 mm | 1 200 mm | 800 mm | 135 kg |
| 8MF5828-4E | standard system cubicle | 1 800 mm | 1 200 mm | 800 mm | 135 kg |
| 8MF5826-5R | standard system cubicle | 1 800 mm | 1 200 mm | 600 mm | 125 kg |
| 8MF4613 | mounting panel | 200 mm | 1 000 mm | — | 11.833 kg |
| 8MF4612 | mounting panel | 200 mm | 900 mm | — | 10 kg |
| 8MF4611 | mounting panel | 200 mm | 800 mm | — | 8.167 kg |

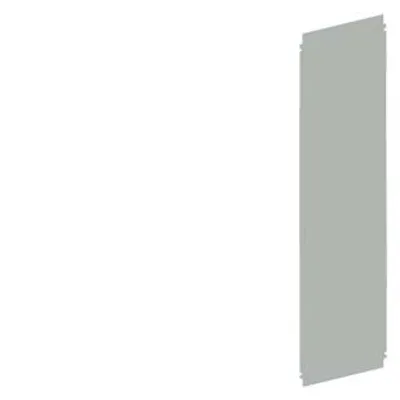

| 8MF4610 | mounting panel | 200 mm | 600 mm | — | 4.5 kg |
| 8MF4604 | mounting panel | 100 mm | 1 200 mm | — | 13.5 kg |
| 8MF4603 | mounting panel | 100 mm | 1 000 mm | — | 9.833 kg |
| 8MF4602 | mounting panel | 100 mm | 900 mm | — | 8 kg |
| 8MF2888-5E | standard system cubicle | 1 800 mm | 800 mm | 800 mm | 110 kg |
| 8MF2888-4R | standard system cubicle | 1 800 mm | 800 mm | 800 mm | 110 kg |
| 8MF2888-4E | standard system cubicle | 1 800 mm | 800 mm | 800 mm | 110 kg |
| 8MF2064-4R | standard system cubicle | 2 000 mm | 600 mm | 400 mm | 105 kg |

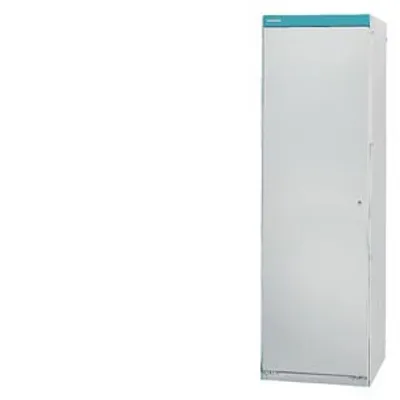

| 8MF2064-4E | standard system cubicle | 2 000 mm | 600 mm | 400 mm | 105 kg |
| 8MF2028-5R | standard system cubicle | 2 000 mm | 1 200 mm | 800 mm | 165 kg |
| 8MF2266-4E | standard system cubicle | 2 200 mm | 600 mm | 600 mm | 135 kg |
| 8MF2264-5R | standard system cubicle | 2 200 mm | 600 mm | 400 mm | 130 kg |
