3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC Parts
Compare 3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | product designation / according to UL file | design of the overcurrent release | power loss [W] / maximum | power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | Net Weight |
|---|---|---|---|---|---|
| 3VA6610-5HL46-0AA0 | MMNAE | ETU320 | 330 W | 110 W | 23.298 kg |

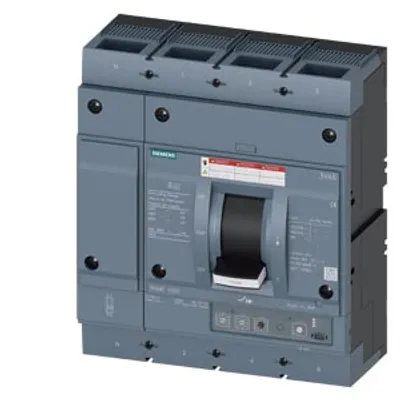

| 3VA6610-5HL42-0AA0 | MMNAE | ETU320 | 330 W | 110 W | 18.3 kg |

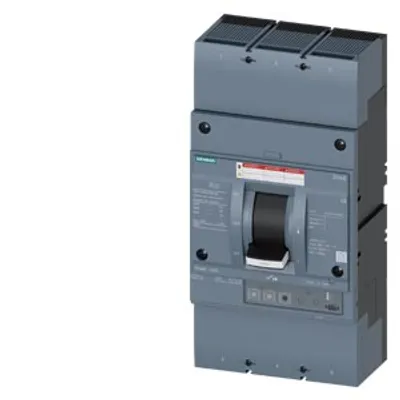

| 3VA6610-5HL36-0AA0 | MMNAE | ETU320 | 330 W | 110 W | 17.755 kg |

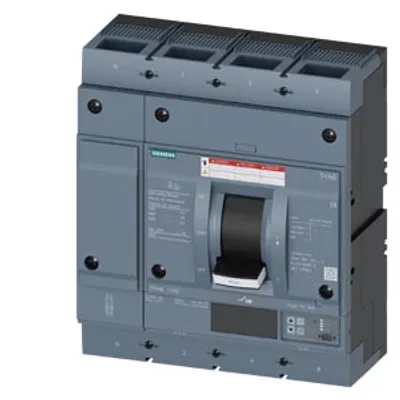

| 3VA6580-7JQ42-2AA0 | CMAE | ETU560 | 231 W | 77 W | 17.01 kg |
| 3VA6580-7JQ32-0AA0 | CMAE | ETU560 | 231 W | 77 W | 13.3 kg |
| 3VA6580-7JP46-2AA0 | CMAE | ETU550 | 231 W | 77 W | 23.298 kg |
| 3VA6580-7JP46-0AA0 | CMAE | ETU550 | 231 W | 77 W | 23.298 kg |
| 3VA6460-0KQ31-0AA0 | ELAE | ETU860 | 151 W | 50.33 W | 5.3 kg |

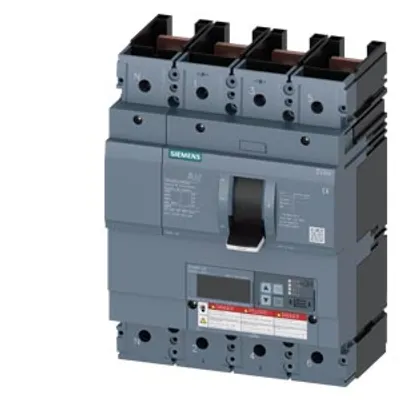

| 3VA6325-8KP41-2AA0 | LJAE | ETU850 | 27 W | 9 W | 6.9 kg |

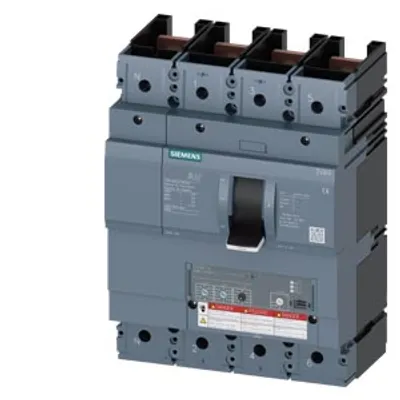

| 3VA6340-8HL41-0AA0 | LJAE | ETU320 | 70 W | 23.33 W | 6.9 kg |
| 3VA6325-5KT31-0AA0 | MJAE | ETU856 | 27 W | 9 W | 5.3 kg |

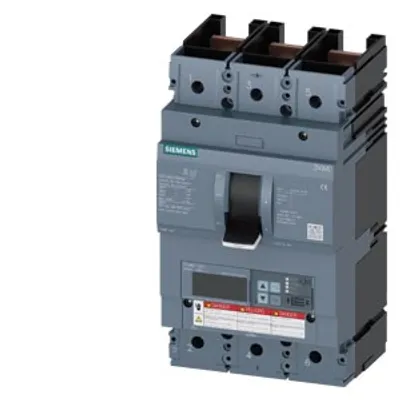

| 3VA6325-5KQ31-2AA0 | MJAE | ETU860 | 27 W | 9 W | 5.3 kg |
| 3VA6225-6KQ31-0AA0 | HFAE | ETU860 | 42 W | 14 W | 2.171 kg |

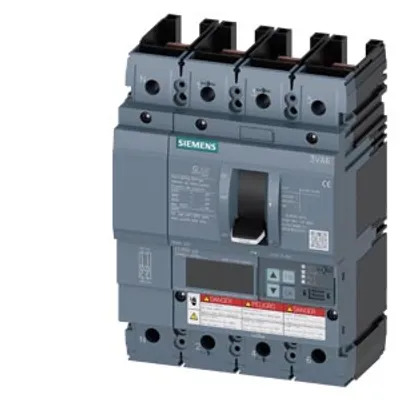

| 3VA6225-6KP41-2AA0 | HFAE | ETU850 | 42 W | 14 W | 2.9 kg |
| 3VA6225-6KP41-0AA0 | HFAE | ETU850 | 42 W | 14 W | 3.2 kg |
| 3VA6225-5KT31-2AA0 | MFAE | ETU856 | 42 W | 14 W | 2.3 kg |

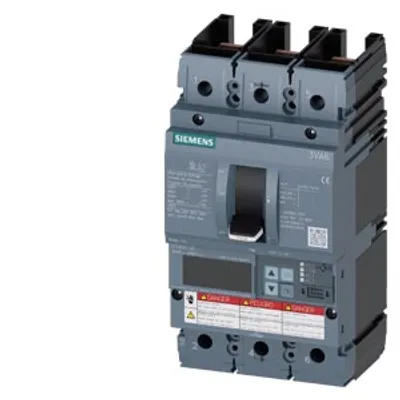

| 3VA6110-8KM31-2AA0 | LDAE | ETU830 | 13 W | 4.33 W | 2.3 kg |
| 3VA6110-8JP31-2AA0 | LDAE | ETU550 | 13 W | 4.33 W | 2.3 kg |
| 3VA6110-8JP31-0AA0 | LDAE | ETU550 | 13 W | 4.33 W | 2.5 kg |

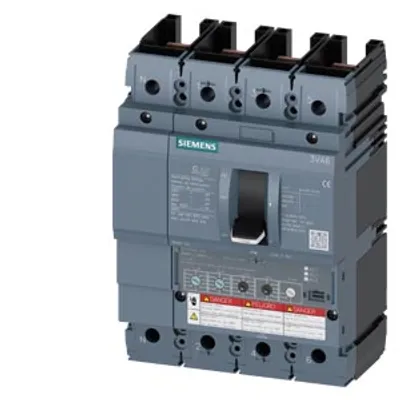

| 3VA6110-8HN41-2AA0 | LDAE | ETU350 | 13 W | 4.33 W | 2.9 kg |
| 3VA6110-8HN41-0AA0 | LDAE | ETU350 | 13 W | 4.33 W | 3.2 kg |
| 3VA5160-4EC31-1AA0 | SEAM | TM230 | 15.4 W | 5.13 W | 942 g |

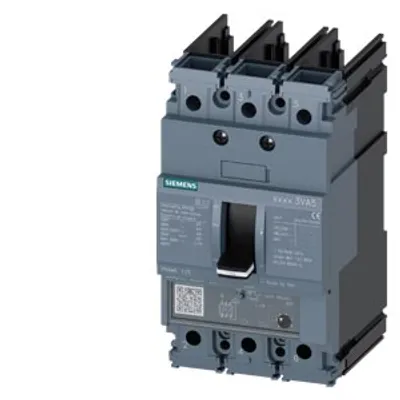

| 3VA5160-4EC31-0AA0 | SEAS | TM230 | 15.4 W | 5.13 W | 942 g |
| 3VA5150-6EF41-0AA0 | HEAS | TM240 | 12 W | 4 W | 1.2 kg |
Common to all listed parts
| product designation | Molded-case circuit breaker |
| design of the product | System protection |
| design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type) | Yes |
| operating voltage / at AC / rated value | 690 V |
| number of CO contacts / for auxiliary contacts | 0 |
| protection class IP / on the front | IP40 |
| reference code / according to IEC 81346-2 | Q |
