Industrial valves Parts
Compare Industrial valves
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Model Code 1 | Product height in | Product height mm | Product length in | Product length mm |
|---|---|---|---|---|---|

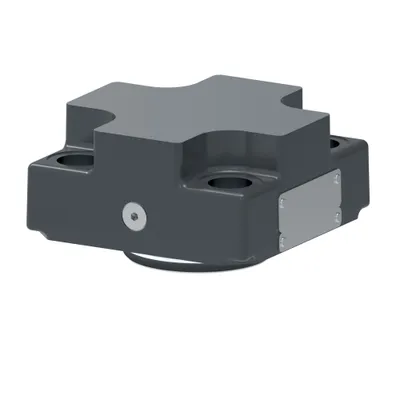

| 846AN00066A | CVCS50N20 | 4.530 | 115.062 | 5.510 | 139.954 |
| 846AN00065A | CVCS40PC20 | 3.260 | 82.804 | 5.080 | 129.032 |

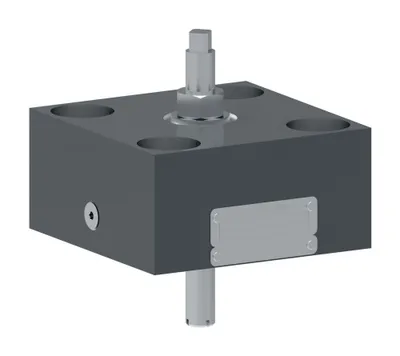

| 846AN00064A | CVCS32AW20 | 3.940 | 100.076 | 3.390 | 86.106 |
| 846AN00063A | CVCS50D320 | 3.190 | 81.026 | 5.510 | 139.954 |
| 846AN00062A | CVCS63D320 | 3.580 | 90.932 | 7.090 | 180.086 |
| 846AN00061A | CVCS63N20 | 5.270 | 133.858 | 7.090 | 180.086 |
| 846AN00060A | CVCS50N20X99 | 4.530 | 115.062 | 5.510 | 139.954 |
| 846AN00059A | CVCS32W1320 | 3.340 | 84.836 | 4.000 | 101.600 |
| 846AN00057A | CVCS16B20 | 2.080 | 52.832 | 2.600 | 66.040 |

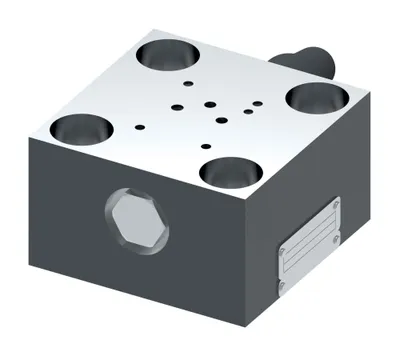

| 846AN00056A | CVCS16UW25020 | 2.440 | 61.976 | 5.930 | 150.622 |

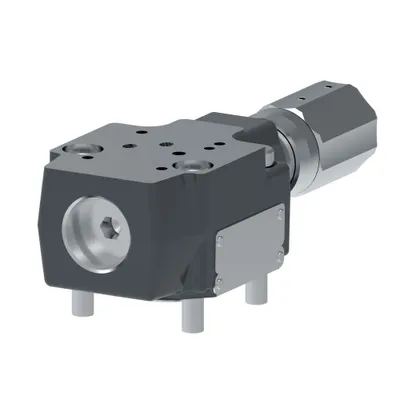

| 846AN00055A | CVCS16CK12520 | 2.440 | 61.976 | 6.560 | 166.624 |
| 846AN00054A | CVCS32C3W25020 | 3.340 | 84.836 | 6.130 | 155.702 |
| 846AN00053A | CVCS40W20 | 3.260 | 82.804 | 5.080 | 129.032 |
| 846AN00052A | CVCS40C3W12520 | 3.220 | 81.788 | 7.090 | 180.086 |

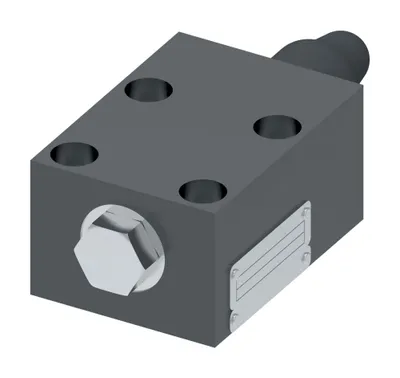

| 846AN00051A | CVCS25XW25020 | 2.480 | 62.992 | 5.990 | 152.146 |
| 846AN00050A | CVCS16UW35020 | 2.440 | 61.976 | 5.930 | 150.622 |

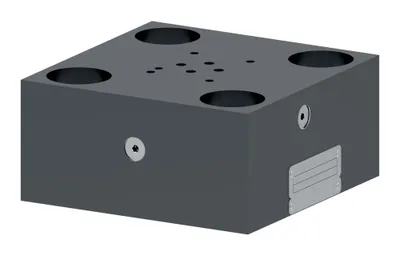

| 846AN00049A | CVCS32W20 | 3.340 | 84.836 | 4.120 | 104.648 |
| 846AN00048A | CVCS16PC20 | 2.320 | 58.928 | 2.720 | 69.088 |

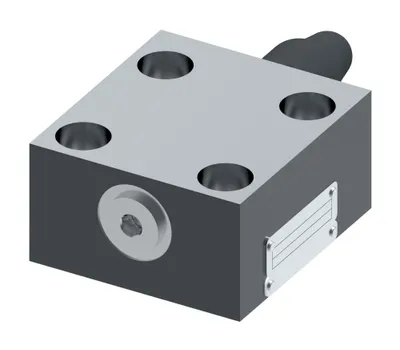

| 846AN00047A | F3CVCS25C3W25020 | 2.480 | 62.992 | 5.790 | 147.066 |

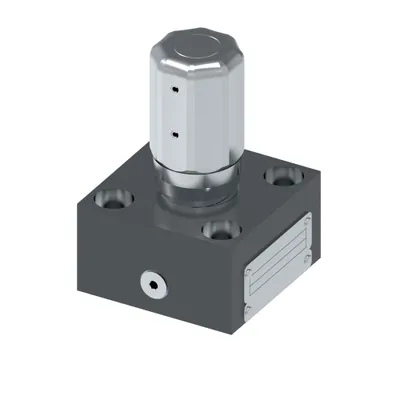

| 846AN00045A | CVCS16AM20 | 2.570 | 65.278 | 4.390 | 111.506 |
| 846AN00044A | CVCS16CW25020 | 2.440 | 61.976 | 5.750 | 146.050 |
| 846AN00043A | CVCS16CW12520 | 2.440 | 61.976 | 5.750 | 146.050 |
| 846AN00042A | F3CVCS16N20 | 2.080 | 52.832 | 2.600 | 66.040 |
| 846AN00041A | CVCS16W20 | 2.320 | 58.928 | 2.720 | 69.088 |
Common to all listed parts
| Design Series | 20 Design |
| Fluid Cleanliness | 18/16/13 micron |
| Valve type | Cartridge valve cover |
