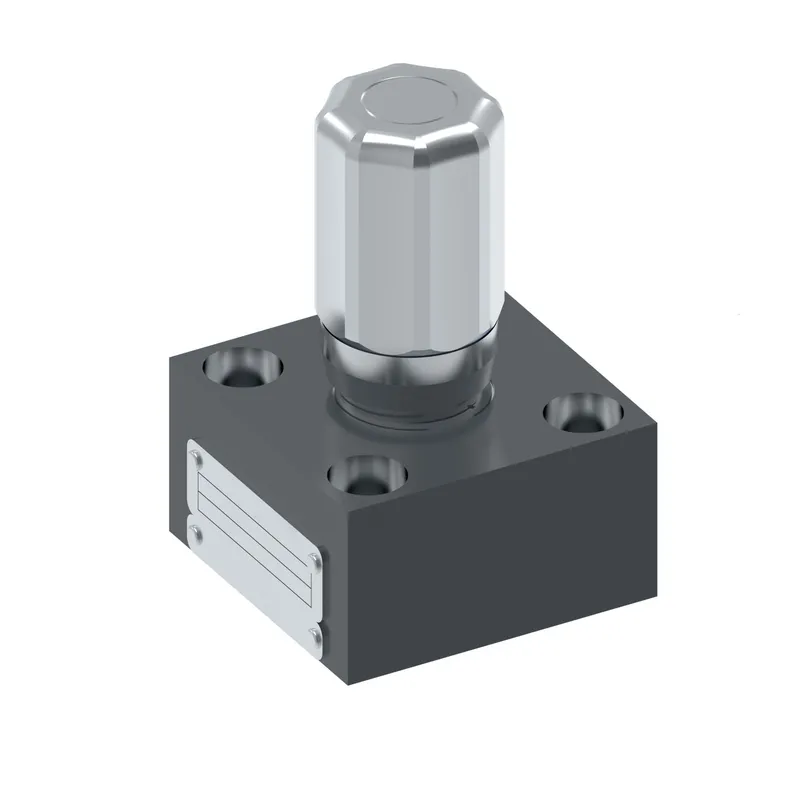

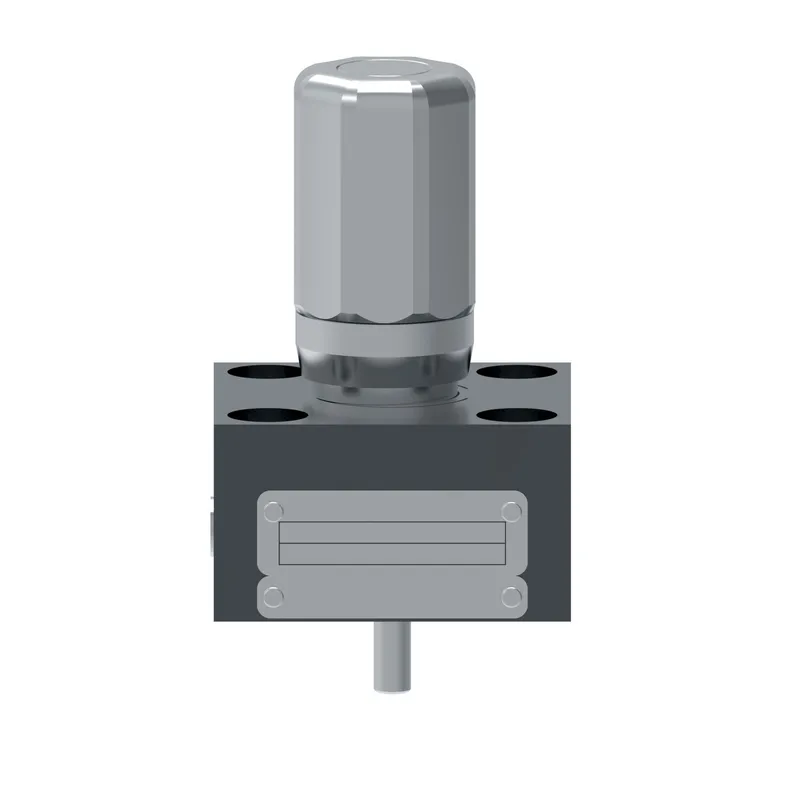

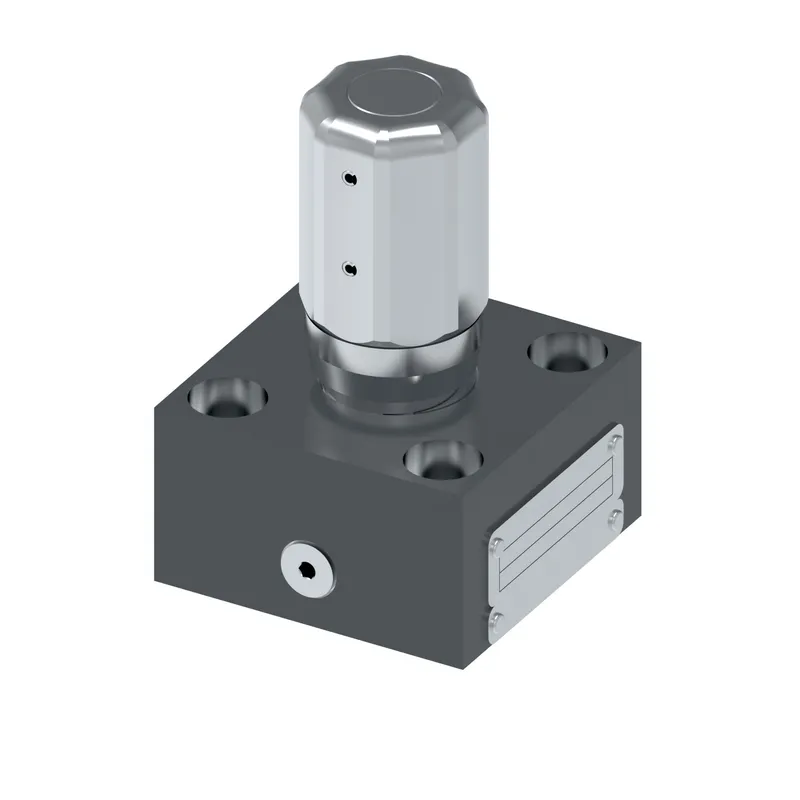

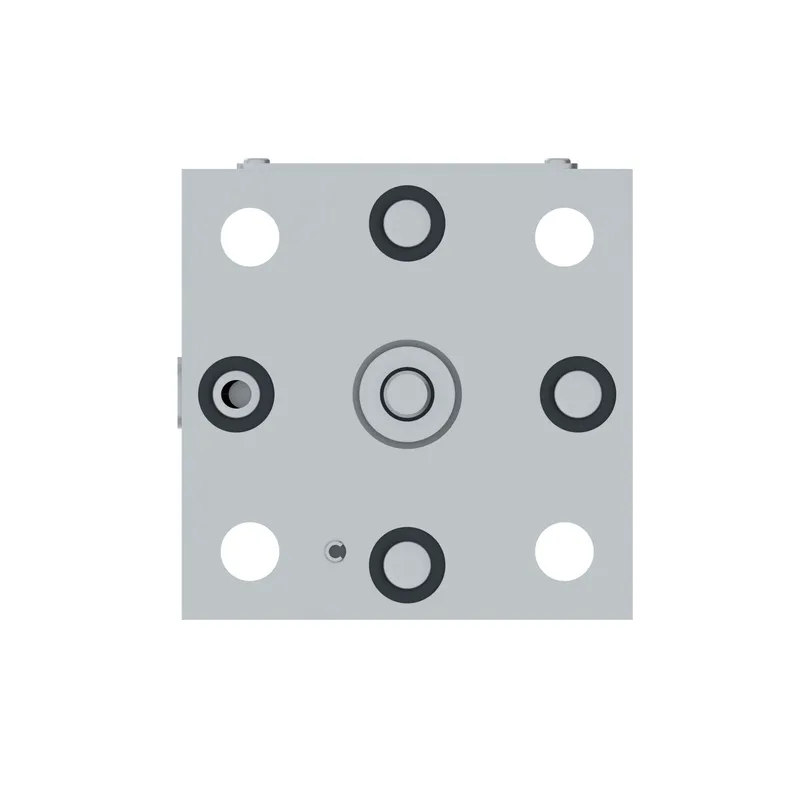

Danfoss 846AN00045A

CVCS-16-A-M-20, CVCS16AM20

MPN: 846AN00045A
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 846AN00045A?

Danfoss CVCS-16-A-M-20, CVCS16AM20, manufacturer part number 846AN00045A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment	Yes
Adjustment type	Micrometer without keylock
Brand	Vickers by Danfoss
Cover type	Stroke adjuster
Design Series	20 Design
Flow rate LPM	255
Flow rate USGPM	67.0
Fluid Cleanliness	18/16/13 micron
Fluid compatibility	Water Glycol, Water-in-Oil Emulsions and Petroleum Oil
Gauge port thread	SAE
Insert ratio	1:1.5
Insert type	Flow control
Interface	No
Leakage	Standard
Model Code 1	CVCS16AM20
Normal function	Normally open
Pilot port orientation	ISO
Pressure rating BAR	350
Pressure rating PSI	5000
Product height in	2.570
Product height mm	65.278
Product length in	4.390
Product length mm	111.506
Product width in	2.720
Product width mm	69.088
Seal material	Buna-N
Size	NG 16
Special feature	None
Spool position sensor	No
Valve type	Cartridge valve cover
Valvistor	No
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4

846AN00045A: frequently asked questions

When can 846AN00045A be shipped?

846AN00045A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 846AN00045A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 846AN00045A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 846AN00045A, subject to availability and destination.
