Industrial valves Parts
Compare Industrial valves
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Model Code 1 | Product height in | Product height mm | Product length in | Product length mm |
|---|---|---|---|---|---|
| 846AN00191A | CVCS25C3W12520Z108 | 2.480 | 62.992 | 5.790 | 147.066 |
| 846AN00190A | CVCS25D320AP199A13 | 2.160 | 54.864 | 3.390 | 86.106 |
| 846AN00189A | CVCS25D320AP110Z108A10 | 2.160 | 54.864 | 3.390 | 86.106 |
| 846AN00187A | CVCS25W1320A00B12 | 2.560 | 65.024 | 3.390 | 86.106 |
| 846AN00186A | F3CVCS25D320 | 2.160 | 54.864 | 3.390 | 86.106 |

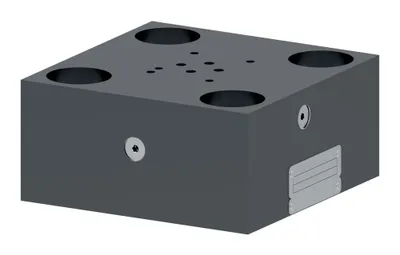

| 846AN00185A | CVCS25D320AP199A10 | 2.160 | 54.864 | 3.390 | 86.106 |
| 846AN00183A | CVCS25U3W25020Z108 | 2.480 | 62.992 | 5.990 | 152.146 |
| 846AN00178A | CVCS40W3320 | 2.950 | 74.930 | 4.960 | 125.984 |

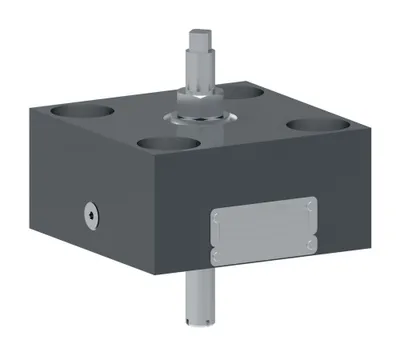

| 846AN00177A | CVCS63AW20 | 7.210 | 183.134 | 6.140 | 155.956 |

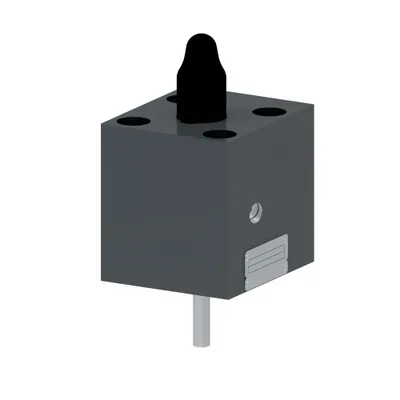

| 846AN00176A | CVCS25A3M20NC | 5.470 | 138.938 | 6.670 | 169.418 |

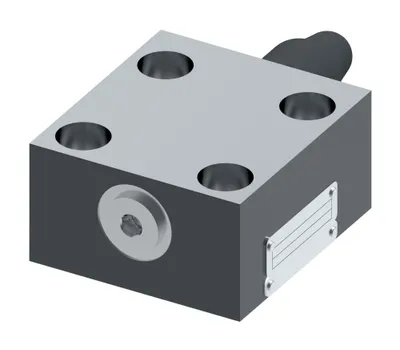

| 846AN00175A | F3CVCS25C3W35020 | 2.480 | 62.992 | 5.790 | 147.066 |
| 846AN00174A | CVCS16C3W35020AP08X00 | 2.440 | 61.976 | 5.750 | 146.050 |

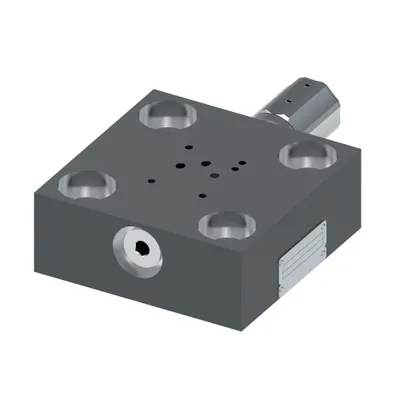

| 846AN00172A | CVCS25XK12520 | 2.480 | 62.992 | 6.790 | 172.466 |
| 846AN00170A | CVCS32W3320 | 2.950 | 74.930 | 4.000 | 101.600 |
| 846AN00169A | CVCS63W1320 | 4.010 | 101.854 | 7.090 | 180.086 |
| 846AN00168A | CVCS25D320AP108 | 2.160 | 54.864 | 3.390 | 86.106 |
| 846AN00167A | CVCS25D320AP110 | 2.160 | 54.864 | 3.390 | 86.106 |

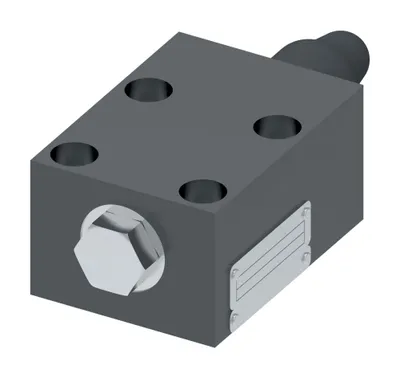

| 846AN00166A | CVCS32XW12520 | 3.030 | 76.962 | 6.330 | 160.782 |
| 846AN00165A | CVCS16C3K25020 | 2.440 | 61.976 | 6.560 | 166.624 |

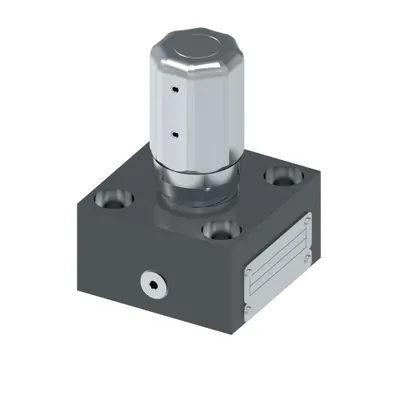

| 846AN00161A | CVCS16AK20 | 2.570 | 65.278 | 4.390 | 111.506 |
| 846AN00159A | CVCS25SC3W25020 | 2.480 | 62.992 | 5.790 | 147.066 |
| 846AN00158A | CVCS63A3W20 | 8.660 | 219.964 | 5.350 | 135.890 |
| 846AN00157A | CVCS40A3W20NC | 7.120 | 180.848 | 5.350 | 135.890 |

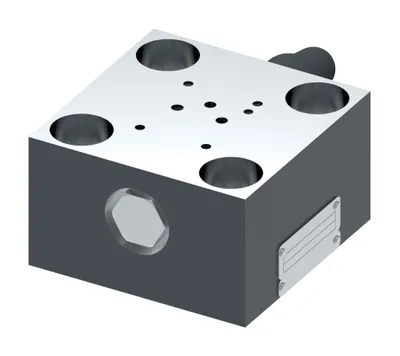

| 846AN00156A | CVCS16U3W12520 | 2.440 | 61.976 | 5.950 | 151.130 |
Common to all listed parts
| Design Series | 20 Design |
| Fluid Cleanliness | 18/16/13 micron |
| Valve type | Cartridge valve cover |
