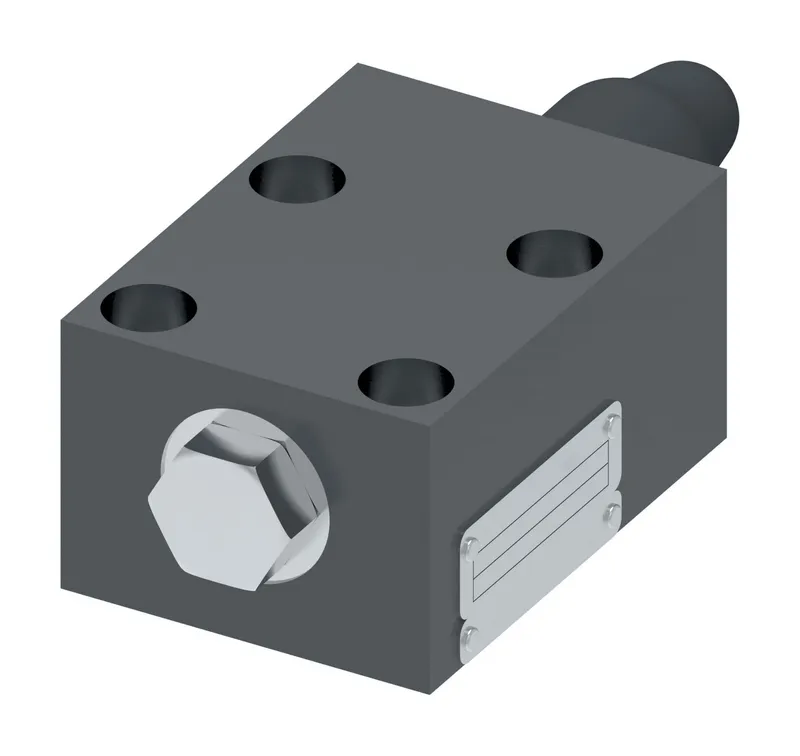

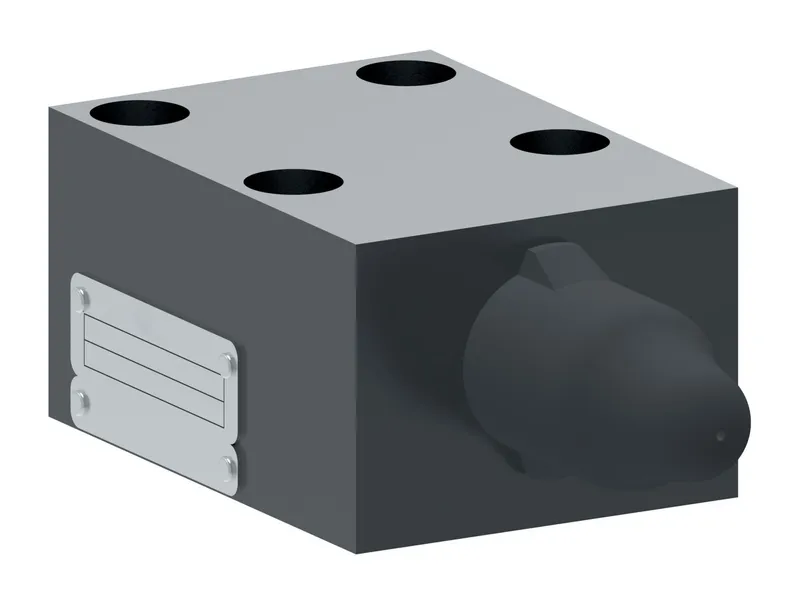

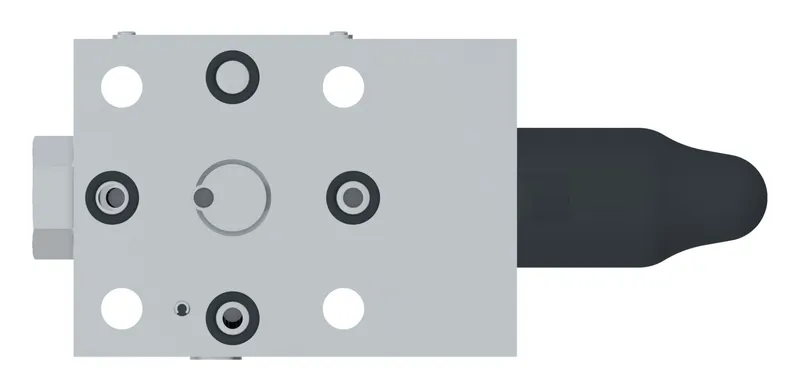

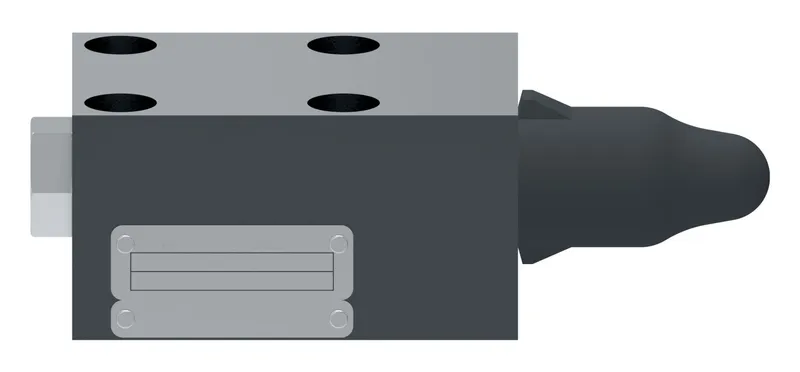

Danfoss 846AN00166A

CVCS-32-X-W-125-20, CVCS32XW12520

MPN: 846AN00166A
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 846AN00166A?

Danfoss CVCS-32-X-W-125-20, CVCS32XW12520, manufacturer part number 846AN00166A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment	Yes
Adjustment type	Wrench with hex locknut
Brand	Vickers by Danfoss
Cover type	Pressure reducer
Cracking pressure BAR	1.50
Cracking pressure PSI	22.0
Design Series	20 Design
Flow rate LPM	630
Flow rate USGPM	145.0
Fluid Cleanliness	18/16/13 micron
Fluid compatibility	Water Glycol, Water-in-Oil Emulsions and Petroleum Oil
Gauge port thread	SAE
Insert ratio	1:1
Insert type	Pressure Reducer
Interface	No
Leakage	Standard
Model Code 1	CVCS32XW12520
Normal function	Normally closed
Pilot port orientation	ISO
Pressure rating BAR	350
Pressure rating PSI	5000
Product height in	3.030
Product height mm	76.962
Product length in	6.330
Product length mm	160.782
Product width in	4.120
Product width mm	104.648
Seal material	Buna-N
Size	NG 32
Special feature	None
Spool position sensor	No
Valve type	Cartridge valve cover
Valvistor	No
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
