Industrial valves Parts
Compare Industrial valves
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Model Code 1 | Product height in | Product height mm | Product length in | Product length mm |
|---|---|---|---|---|---|
| 847AN00012A | CVI32D20M50 | 2.360 | 59.944 | 3.340 | 84.836 |
| 847AN00011A | CVI25C10FH50 | 1.770 | 44.958 | 2.440 | 61.976 |
| 847AN00010A | CVI16D15M50 | 1.250 | 31.750 | 2.200 | 55.880 |

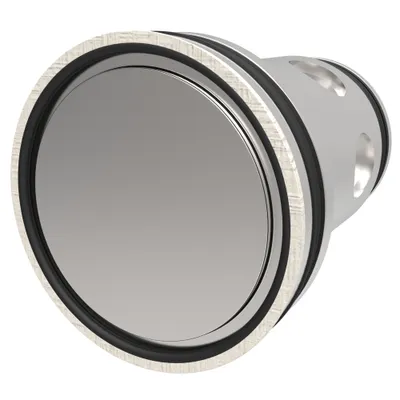

| 847AN00009A | CVI16R15M50 | 1.250 | 31.750 | 2.200 | 55.880 |
| 847AN00008A | CVI32D15M50 | 2.360 | 59.944 | 3.340 | 84.836 |
| 847AN00007A | CVI25D10H50 | 1.770 | 44.958 | 2.830 | 71.882 |
| 847AN00006A | CVI25D20M50 | 1.770 | 44.958 | 2.830 | 71.882 |
| 847AN00005A | CVI25D10L50 | 1.770 | 44.958 | 2.830 | 71.882 |
| 847AN00004A | CVI40R15M50 | 2.950 | 74.930 | 4.130 | 104.902 |
| 847AN00003A | CVI25D20L50 | 1.770 | 44.958 | 2.830 | 71.882 |
| 847AN00002A | CVI40D15ZM50 | 2.950 | 74.930 | 4.130 | 104.902 |
| 847AN00001A | CVI32D10H50 | 2.360 | 59.944 | 3.340 | 84.836 |
| 846AN00409A | CVCS40D320AP212X10 | 2.400 | 60.960 | 4.960 | 125.984 |
| 846AN00395A | CVCS40D320AP100AP213 | 2.400 | 60.960 | 4.960 | 125.984 |

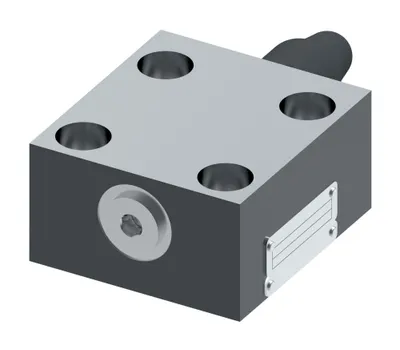

| 846AN00387A | CVCS32C3W25020AP14B00 | 3.340 | 84.836 | 6.130 | 155.702 |

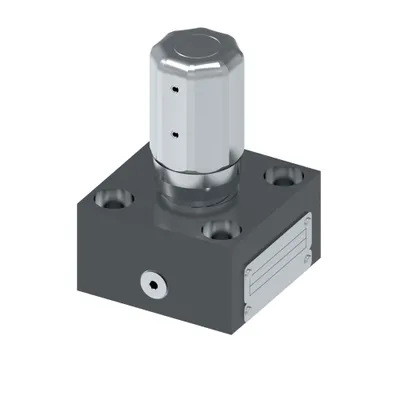

| 846AN00386A | CVCS16AM20X08 | 5.490 | 139.446 | 2.600 | 66.040 |
| 846AN00383A | CVCS32W1320A10 | 3.340 | 84.836 | 4.000 | 101.600 |
| 846AN00382A | CVCS25U3W25020AP22 | 2.480 | 62.992 | 5.990 | 152.146 |
| 846AN00381A | CVCS25U3W12520AP22 | 2.480 | 62.992 | 5.990 | 152.146 |

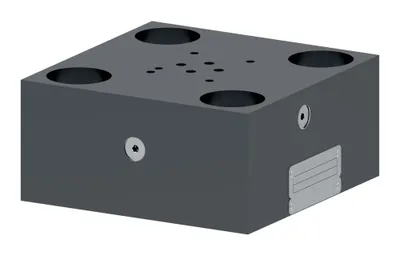

| 846AN00375A | CVCS50W1320 | 3.780 | 96.012 | 5.510 | 139.954 |

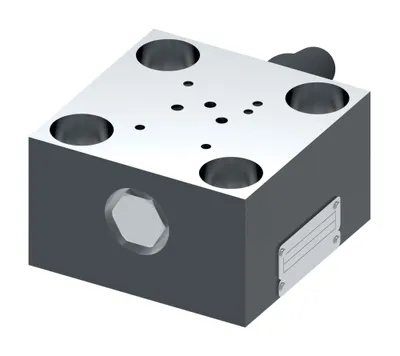

| 846AN00374A | CVCS32UM12520 | 3.030 | 76.962 | 7.130 | 181.102 |
| 846AN00369A | CVCS16D320AP100AP299 | 2.440 | 61.976 | 2.600 | 66.040 |

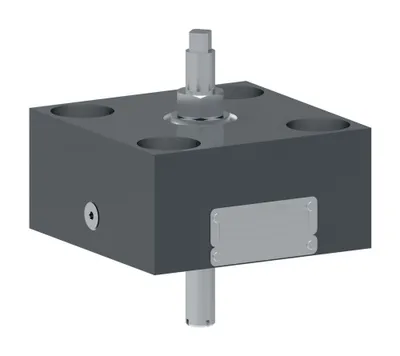

| 846AN00359A | CVCS32AW20X12 | 3.940 | 100.076 | 3.390 | 86.106 |

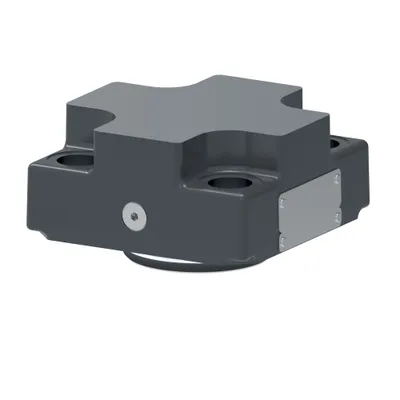

| 846AN00356A | CVCS16N20X08 | 2.080 | 52.832 | 2.600 | 66.040 |
Common to all listed parts
| Fluid Cleanliness | 18/16/13 micron |
| Seal material | Buna-N |
