What is the Danfoss 847AN00004A?

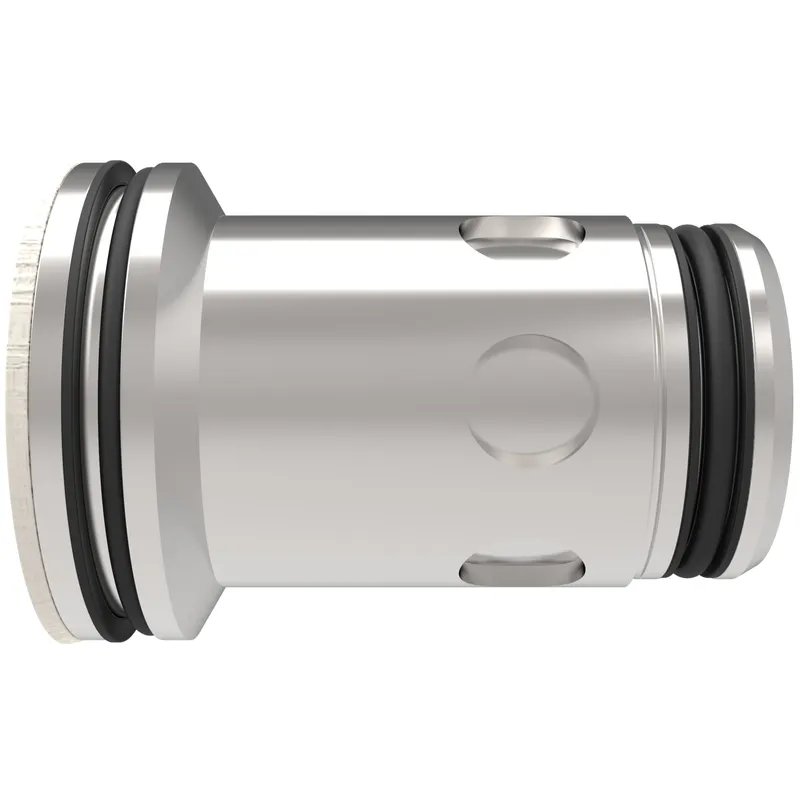

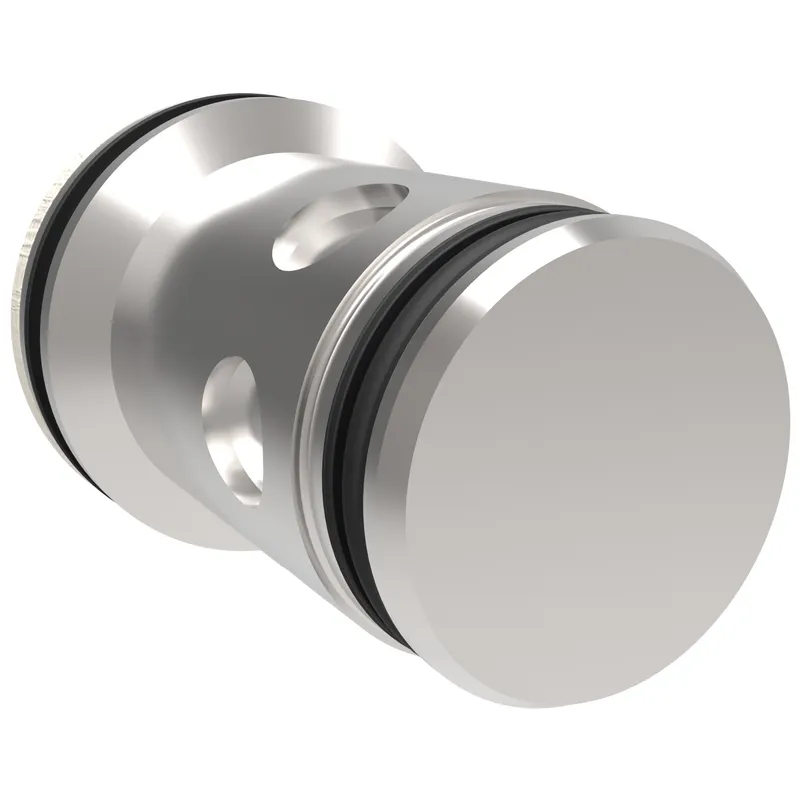

Danfoss CVI-40-R15-M-50, CVI40R15M50, manufacturer part number 847AN00004A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment	No
Brand	Vickers by Danfoss
Design Series	50 Design
Flow rate LPM	1700
Flow rate USGPM	450.0
Fluid Cleanliness	18/16/13 micron
Fluid compatibility	Water Glycol, Water-in-Oil Emulsions and Petroleum Oil
Gauge port thread	SAE
Insert ratio	1:1.5
Insert type	Damping
Interface	No
Leakage	Standard
Model Code 1	CVI40R15M50
Normal function	Normally open
Pilot port orientation	ISO
Pressure rating BAR	350
Pressure rating PSI	5000
Product height in	2.950
Product height mm	74.930
Product length in	4.130
Product length mm	104.902
Product width in	2.950
Product width mm	74.93
Seal material	Buna-N
Size	NG 40
Special feature	None
Spool position sensor	No
Valve type	Cartridge valve insert
Valvistor	No
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
