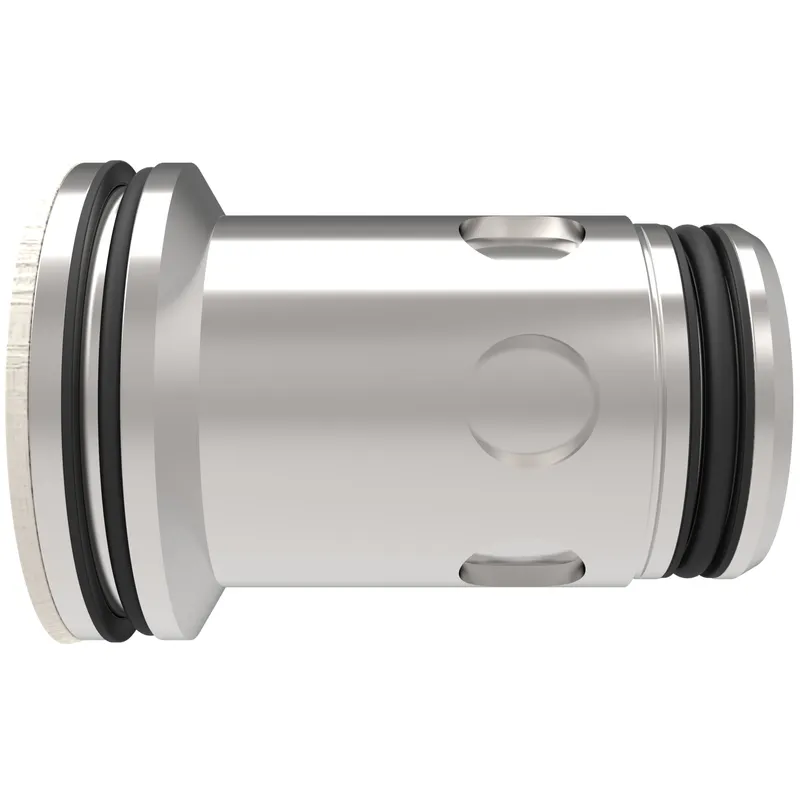

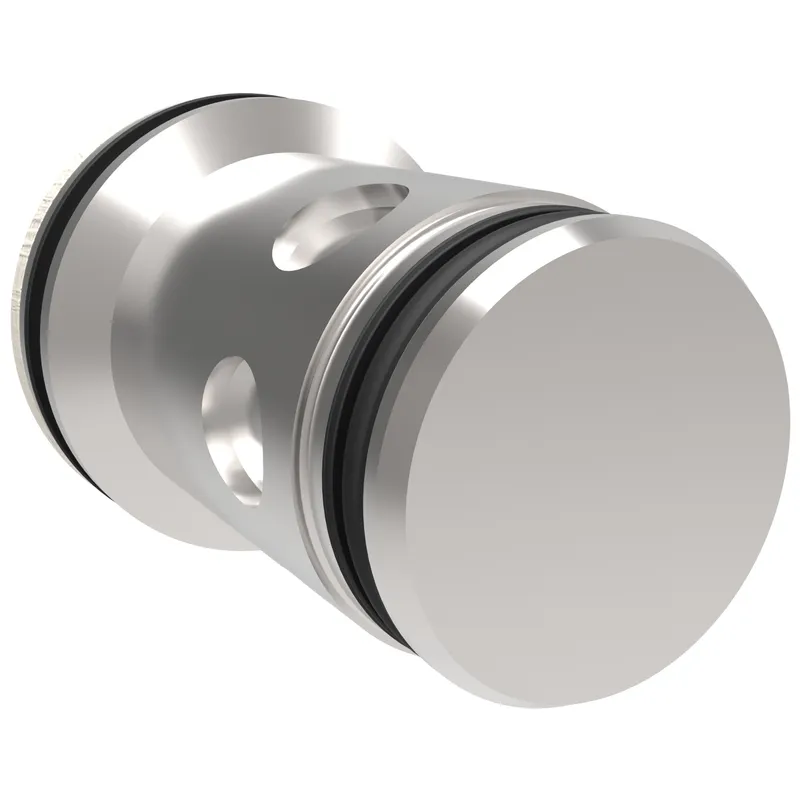

Danfoss 847AN00007A

CVI-25-D10-H-50, CVI25D10H50

MPN: 847AN00007A
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 847AN00007A?

Danfoss CVI-25-D10-H-50, CVI25D10H50, manufacturer part number 847AN00007A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment	No
Brand	Vickers by Danfoss
Design Series	50 Design
Flow rate LPM	590
Flow rate USGPM	155.0
Fluid Cleanliness	18/16/13 micron
Fluid compatibility	Water Glycol, Water-in-Oil Emulsions and Petroleum Oil
Gauge port thread	SAE
Insert ratio	1:1
Insert type	Relief
Interface	No
Leakage	Standard
Model Code 1	CVI25D10H50
Normal function	Normally closed
Pilot port orientation	ISO
Pressure rating BAR	350
Pressure rating PSI	5000
Product height in	1.770
Product height mm	44.958
Product length in	2.830
Product length mm	71.882
Product width in	1.770
Product width mm	44.958
Seal material	Buna-N
Size	NG 25
Special feature	None
Spool position sensor	No
Valve type	Cartridge valve insert
Valvistor	No
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4

847AN00007A: frequently asked questions

When can 847AN00007A be shipped?

847AN00007A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 847AN00007A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 847AN00007A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 847AN00007A, subject to availability and destination.
