Industrial valves Parts
Compare Industrial valves
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | A Port flow LPM | A Port flow USGPM | B Port flow LPM | B Port flow USGPM | Model Code 1 |
|---|---|---|---|---|---|
| 857AN00070A | 330.00 | 88.00 | 330.00 | 88.00 | KBDG5V833C330NTM1PE7H111 |
| 857AN00068A | 330.00 | 88.00 | 330.00 | 88.00 | KBDG5V82C330NTM1PE7H111 |

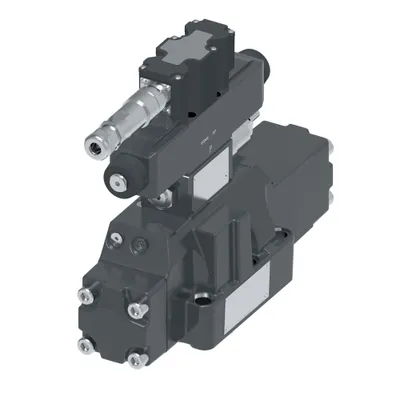

| 857AN00067A | 330.00 | 88.00 | 200.00 | 52.00 | KBDG5V833C330N200XM1PE7H111 |
| 857AN00064A | 80.00 | 21.00 | 80.00 | 21.00 | KBDG5V533C80NXHM1PE7H111 |
| 857AN00062A | 60.00 | 15.90 | 35.00 | 9.25 | KBDG5V533C60N35XHM1PE7H111 |
| 857AN00060A | 90.00 | 24.00 | 90.00 | 24.00 | KBDG5V52C90NXTM1PE7H111 |
| 857AN00059A | 80.00 | 21.00 | 80.00 | 21.00 | KBDG5V533C80NTM1PE7H111 |

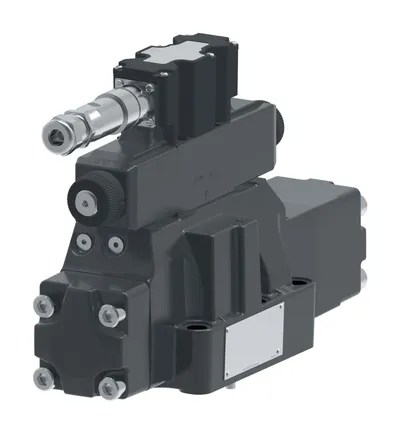

| 857AN00057A | 90.00 | 24.00 | 90.00 | 24.00 | KBDG5V52C90NM2PE7H111 |
| 857AN00056A | 80.00 | 21.00 | 80.00 | 21.00 | KBDG5V533C80NEXM2PE7H111 |
| 857AN00053A | 90.00 | 24.00 | 90.00 | 24.00 | KBDG5V52C90NHM1PE7H111 |
| 857AN00051A | 80.00 | 21.00 | 80.00 | 21.00 | KBDG5V533C80NM1PE7H111 |
| 857AN00050A | 80.00 | 21.00 | 80.00 | 21.00 | KBDG5V533C80NXTHM1PE7H111_X001 |
| 857AN00049A | 80.00 | 21.00 | 80.00 | 21.00 | KBDG5V533C80NXTM1PE7H111 |
| 857AN00048A | 80.00 | 21.00 | 80.00 | 21.00 | KBDG5V533C80NXM1PE7H111 |
| 857AN00046A | 80.00 | 21.00 | 80.00 | 21.00 | KBDG5V533C80NXTM2PE7H111 |
| 857AN00045A | 90.00 | 24.00 | 90.00 | 24.00 | KBDG5V52C90NTHM1PE7H111 |
| 857AN00043A | 90.00 | 24.00 | 90.00 | 24.00 | KBDG5V52C90NTM1PE7H111 |
| 857AN00042A | 80.00 | 21.00 | 80.00 | 21.00 | KBDG5V533C80NXHM1PC7H111 |
| 857AN00041A | 90.00 | 24.00 | 90.00 | 24.00 | KBDG5V52C90NTM2PE7H111 |

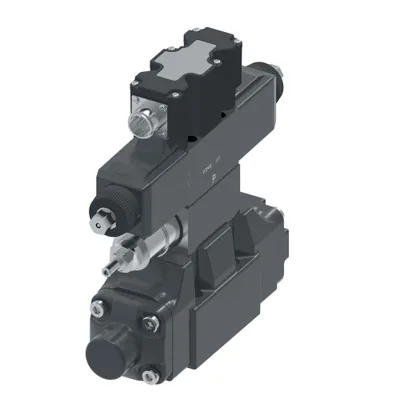

| 857AN00039A | 60.00 | 15.90 | 35.00 | 9.25 | KBDG5V533C60N35XTHM1PE7H111 |
| 857AN00038A | 80.00 | 21.00 | 80.00 | 21.00 | KBDG5V533C80NM2PE7H111 |
| 857AN00037A | 90.00 | 24.00 | 90.00 | 24.00 | KBDG5V52C90NM1PE7H111 |

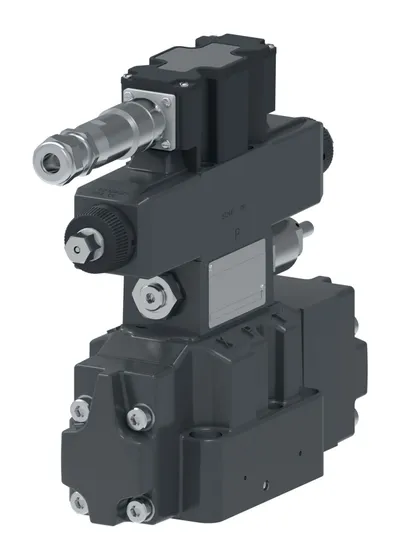

| 857AN00029A | 170.00 | 45.00 | 170.00 | 45.00 | KBDG5V733C170NXTHM1PE7H111 |

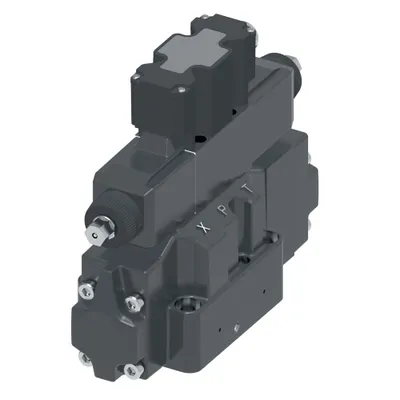

| 857AN00015A | 180.00 | 48.00 | 180.00 | 48.00 | KBDG5V72C180NTM1PE7H111 |
Common to all listed parts
| Actuation Type | Solenoid controlled pilot operated |
| Build orientation | Solenoid 'B' at port 'A' end of valve and solenoid 'A' at port 'B' end of valve |
| Build type | Spring centered |
| Coil voltage | 24 Volt DC |
| Communication protocol | None |
| Current | 1.6 amp |
| Design Series | 11 Series |
| Feedback sensor | No |
