Danfoss 857AN00039A

KBDG5V-5-33C60N35-X-T-H-M1-PE7-H1-11, KBDG5V533C60N35XTHM1PE7H111

MPN
857AN00039A
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

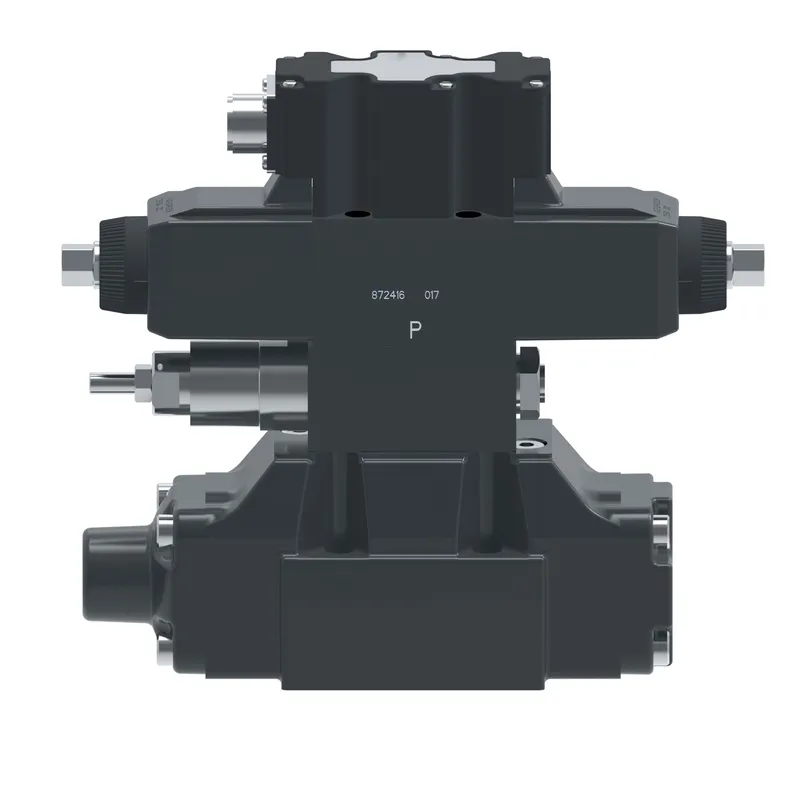

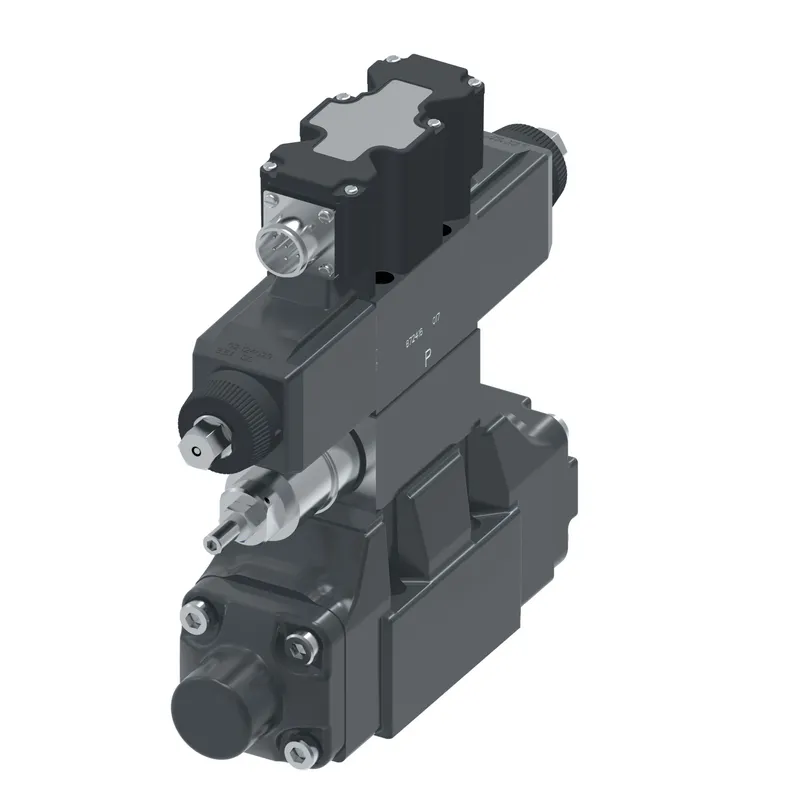

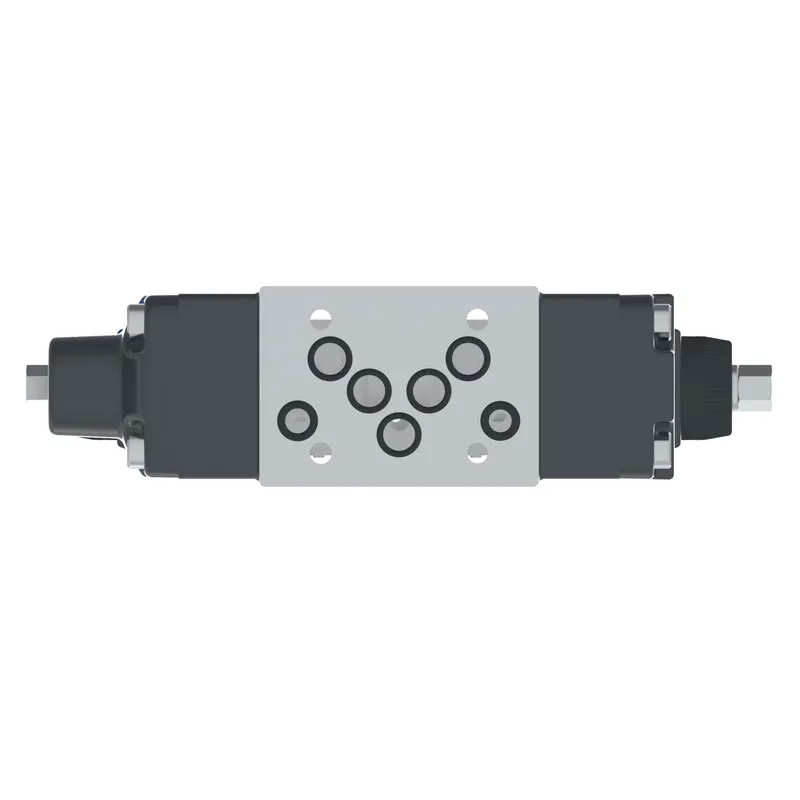

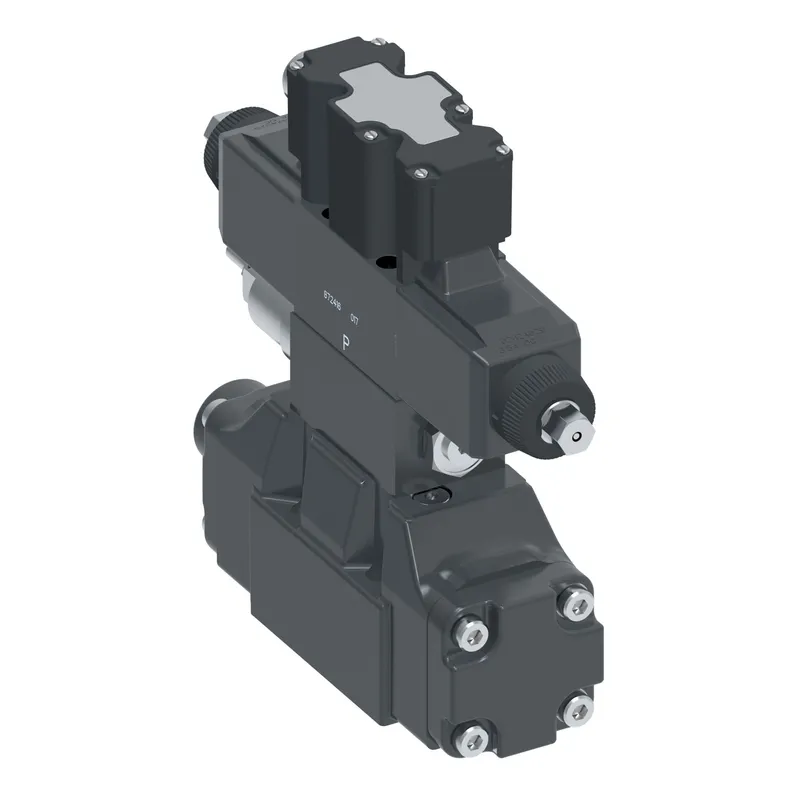

What is the Danfoss 857AN00039A?

Danfoss KBDG5V-5-33C60N35-X-T-H-M1-PE7-H1-11, KBDG5V533C60N35XTHM1PE7H111, manufacturer part number 857AN00039A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A Port flow LPM60.00
A Port flow USGPM15.90
Actuation TypeSolenoid controlled pilot operated
B Port flow LPM35.00
B Port flow USGPM9.25
BrandVickers by Danfoss
Build orientationSolenoid 'B' at port 'A' end of valve and solenoid 'A' at port 'B' end of valve
Build typeSpring centered
Coil voltage24 Volt DC
Command input+/- 10V control signal
Communication protocolNone
Current1.6 amp
Design Series11 Series
Electrical ConnectionElectrical (PE7) 7 pin electrical plug with mating half
Feedback sensorNo
Fluid Cleanliness17/15/12 micron
Fluid compatibilityAntiwear hydraulic oils and non alkyl-based Phosphate Esters
InterfaceISO4401-05/NFPA D05/CETOP 5/NG10
Manual overrideWater-resistant
MeteringMeter in / meter out
Model Code 1KBDG5V533C60N35XTHM1PE7H111
On board electronicsYes
PerformanceStandard
Pilot drainInternal
Pilot supplyInternal
Pressure drop rated flow BAR5
Pressure drop rated flow PSI72
Pressure rating BAR315
Pressure rating PSI4500
Product height in9.200
Product height mm233.680
Product length in10.900
Product length mm276.860
Product width in2.770
Product width mm70.358
ProFX compatibleNo
Reducer moduleYes
Seal typeFluorocarbon
Special featuresNone
Spool TypeP blocked, A & B to tank
StageTwo stage
Symmetric flowNo
Tank port rating BAR210
Tank port rating PSI3000
Valve Mount TypeSubplate
Valve typeProportional directional
Working temp max C70
Working temp max F158
Working temp min C-20
Working temp min F-4

857AN00039A: frequently asked questions

When can 857AN00039A be shipped?

857AN00039A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 857AN00039A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 857AN00039A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 857AN00039A, subject to availability and destination.
