Industrial valves Parts
Compare Industrial valves
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Build orientation | Command input | Model Code 1 | Pressure range | Ramp |
|---|---|---|---|---|---|
| 856AN00037A | Right hand | 4-20mA Control signal | KBCG340DZM22APE7H111 | 2-40 bar (29-580 psi) | Standard ramp (typically 65ms) |
| 856AN00036A | Right hand | +/- 10V control signal | KBCG3250DZM12APC7H111 | 5-250 bar (73-3625 psi) | Standard ramp (typically 65ms) |
| 856AN00032A | Right hand | +/- 10V control signal | KBCG3100DZM11APE7H111 | 3-100 bar (44-1450 psi) | No ramp |
| 856AN00031A | Left hand | +/- 10V control signal | KBCG3L350DZM13APE7H111P15T10 | 6-350 bar (87-5000 psi) | Long ramp (typically 80 ms) |
| 856AN00030A | Right hand | +/- 10V control signal | KBCG3160DZM12APH7H111 | 4-160 bar (58-2300 psi) | Standard ramp (typically 65ms) |
| 856AN00026A | Left hand | +/- 10V control signal | KBCG3L160DZM12APE7H111 | 4-160 bar (58-2300 psi) | Standard ramp (typically 65ms) |
| 856AN00025A | Right hand | +/- 10V control signal | KBCG3250DZM12APH7H111 | 5-250 bar (73-3625 psi) | Standard ramp (typically 65ms) |
| 856AN00024A | Left hand | +/- 10V control signal | KBCG3L100DZM13APE7H111P15T14 | 3-100 bar (44-1450 psi) | Long ramp (typically 80 ms) |
| 856AN00023A | Left hand | 4-20mA Control signal | KBCG3L160DZM23APE7H111P15T14 | 4-160 bar (58-2300 psi) | Long ramp (typically 80 ms) |
| 856AN00022A | Right hand | +/- 10V control signal | KBCG3250DZM11APE7H111 | 5-250 bar (73-3625 psi) | No ramp |

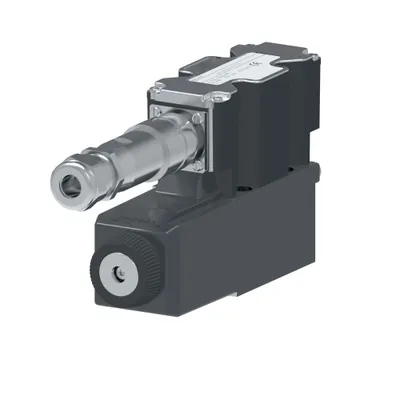

| 856AN00021A | Left hand | +/- 10V control signal | KBCG3L160DZM13APE7H111P15T14 | 4-160 bar (58-2300 psi) | Long ramp (typically 80 ms) |
| 856AN00020A | Right hand | 4-20mA Control signal | KBCG3350DZM21APE7H111 | 6-350 bar (87-5000 psi) | No ramp |
| 856AN00018A | Right hand | +/- 10V control signal | KBCG3350DZM13APE7H111P15T10 | 6-350 bar (87-5000 psi) | Long ramp (typically 80 ms) |
| 856AN00017A | Left hand | +/- 10V control signal | KBCG3L250DZM13APE7H111P15T13 | 5-250 bar (73-3625 psi) | Long ramp (typically 80 ms) |
| 856AN00016A | Left hand | +/- 10V control signal | KBCG3L350DZM12APE7H111P15T10 | 6-350 bar (87-5000 psi) | Standard ramp (typically 65ms) |
| 856AN00015A | Left hand | 4-20mA Control signal | KBCG3L100DZM23APE7H111P15T14 | 3-100 bar (44-1450 psi) | Long ramp (typically 80 ms) |
| 856AN00014A | Right hand | 4-20mA Control signal | KBCG3100DZM22APE7H111 | 3-100 bar (44-1450 psi) | Standard ramp (typically 65ms) |
| 856AN00013A | Left hand | +/- 10V control signal | KBCG3L250DZM12APE7H111P15T13 | 5-250 bar (73-3625 psi) | Standard ramp (typically 65ms) |
| 856AN00011A | Right hand | +/- 10V control signal | KBCG3350DZM11APE7H111 | 6-350 bar (87-5000 psi) | No ramp |
| 856AN00010A | Right hand | 4-20mA Control signal | KBCG3160DZM21APE7H111 | 4-160 bar (58-2300 psi) | No ramp |
| 856AN00009A | Right hand | 4-20mA Control signal | KBCG3160DZM22APE7H111 | 4-160 bar (58-2300 psi) | Standard ramp (typically 65ms) |
| 856AN00008A | Right hand | +/- 10V control signal | KBCG340DZM12APE7H111 | 2-40 bar (29-580 psi) | Standard ramp (typically 65ms) |
| 856AN00007A | Right hand | 4-20mA Control signal | KBCG3350DZM22APE7H111 | 6-350 bar (87-5000 psi) | Standard ramp (typically 65ms) |
| 856AN00006A | Left hand | +/- 10V control signal | KBCG3L100DZM12APE7H111 | 3-100 bar (44-1450 psi) | Standard ramp (typically 65ms) |
Common to all listed parts
| Actuation Type | Solenoid controlled |
| Coil voltage | 24 Volt DC |
| Communication protocol | None |
| Design Series | 11 Series |
| Feedback sensor | No |
| Fluid Cleanliness | 17/15/12 micron |
| Fluid compatibility | Antiwear hydraulic oils and non alkyl-based Phosphate Esters |
| Interface | ISO4401-03/NFPA D03/CETOP 3/NG06 |
