What is the Danfoss 864AN00009A?

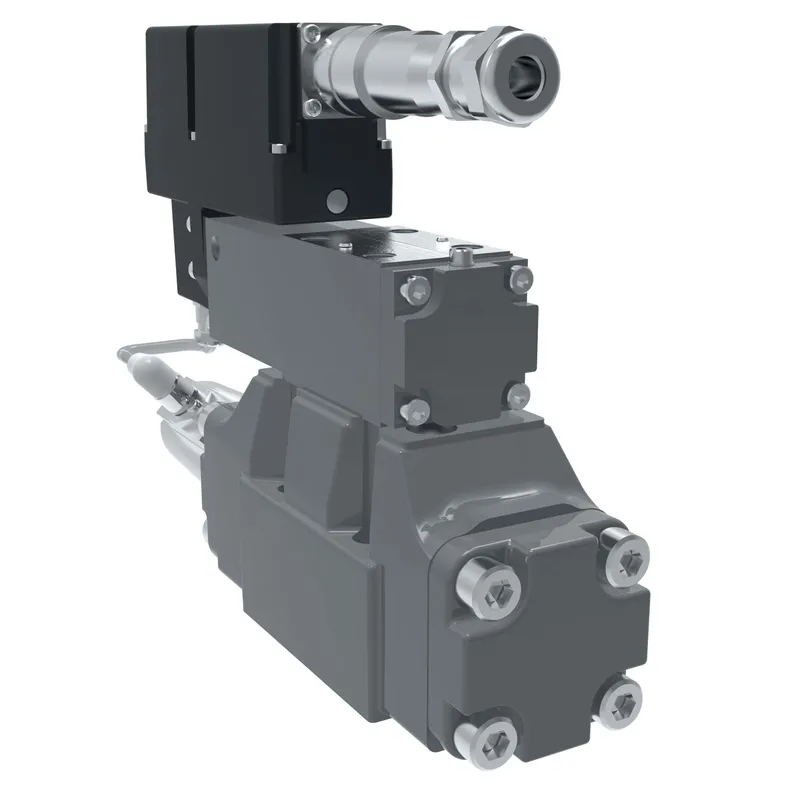

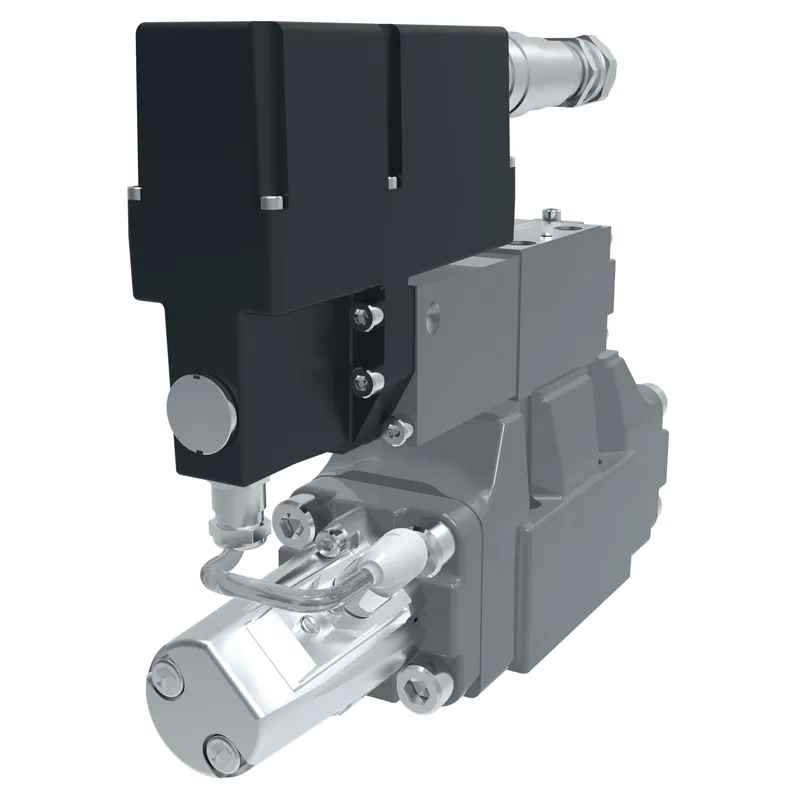

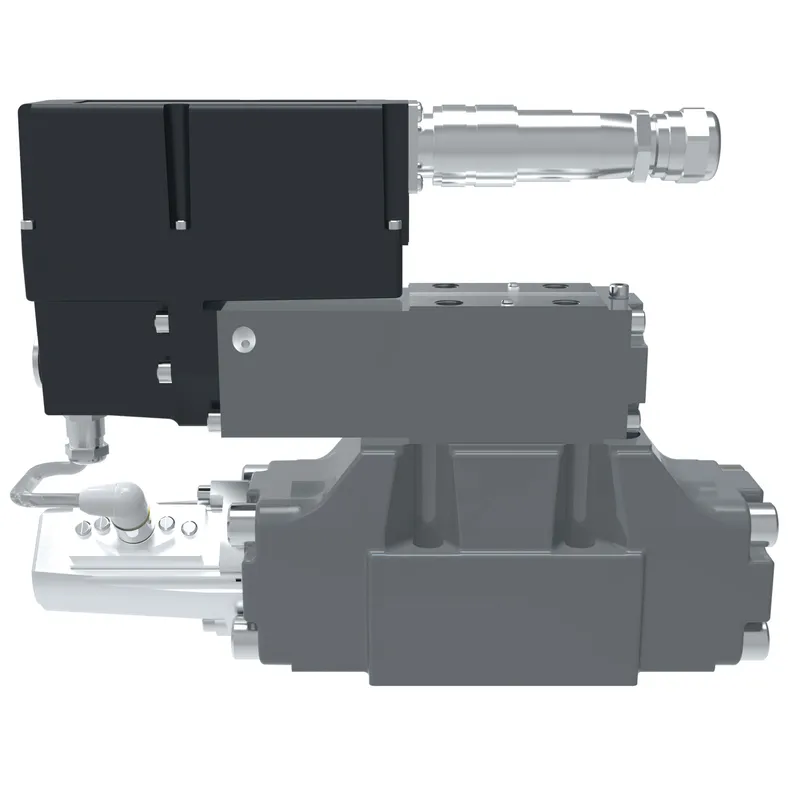

Danfoss KBHDG5V-5-33C85N-T-M1-PE7-H4-12-EN037, KBHDG5V533C85NTM1PE7H412EN037, manufacturer part number 864AN00009A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A Port flow LPM85.00
A Port flow USGPM22.50
Actuation TypeSolenoid controlled pilot operated
B Port flow LPM85.00
B Port flow USGPM22.50
BrandVickers by Danfoss
Build orientationSolenoid at B port end
Build typeSpring centered
Coil voltage24 Volt DC
Command input+/-10V Command +/-10V feedback
Communication protocolNone
Current3 amp
Design Series12 Series
Electrical ConnectionElectrical (PE7) 7 pin electrical plug with mating half
Feedback sensorYes
Fluid Cleanliness17/15/12 micron
Fluid compatibilityAntiwear hydraulic oils and non alkyl-based Phosphate Esters
InterfaceISO4401-05/NFPA D05/CETOP 5/NG10
Manual overrideNone
Maximum pressure BAR315
Maximum pressure PSI4500
MeteringMeter in / meter out
Model Code 1KBHDG5V533C85NTM1PE7H412EN037
On board electronicsYes
PerformanceServo
Pilot drainInternal
Pilot supplyInternal
Product height in7.990
Product height mm202.946
Product length in10.420
Product length mm264.668
Product width in2.760
Product width mm70.104
ProFX compatibleNo
Reducer moduleNo
Reverse flow checkNo
Seal typeViton
Special featuresSpecial for Van Dorn
Spool TypeBleed A and B to T
StageTwo stage
Symmetric flowYes
Tank port rating BAR50
Tank port rating PSI700
Valve Mount TypeSubplate
Valve typeProportional directional
Working temp max C70
Working temp max F158
Working temp min C-40
Working temp min F-40
