Danfoss 02-177086

Cartridge valve

MPN: 02-177086
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-177086?

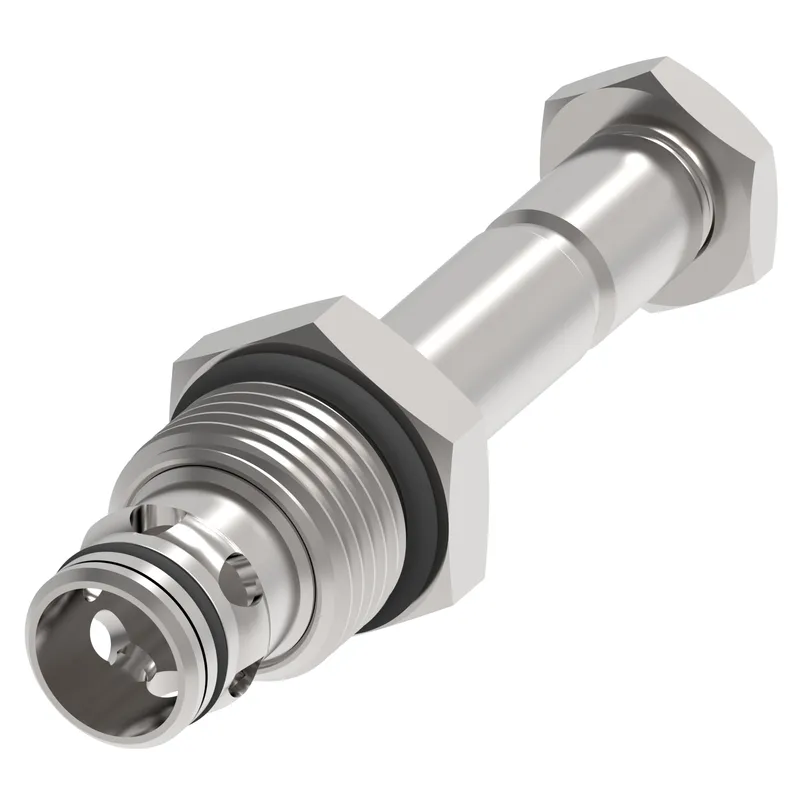

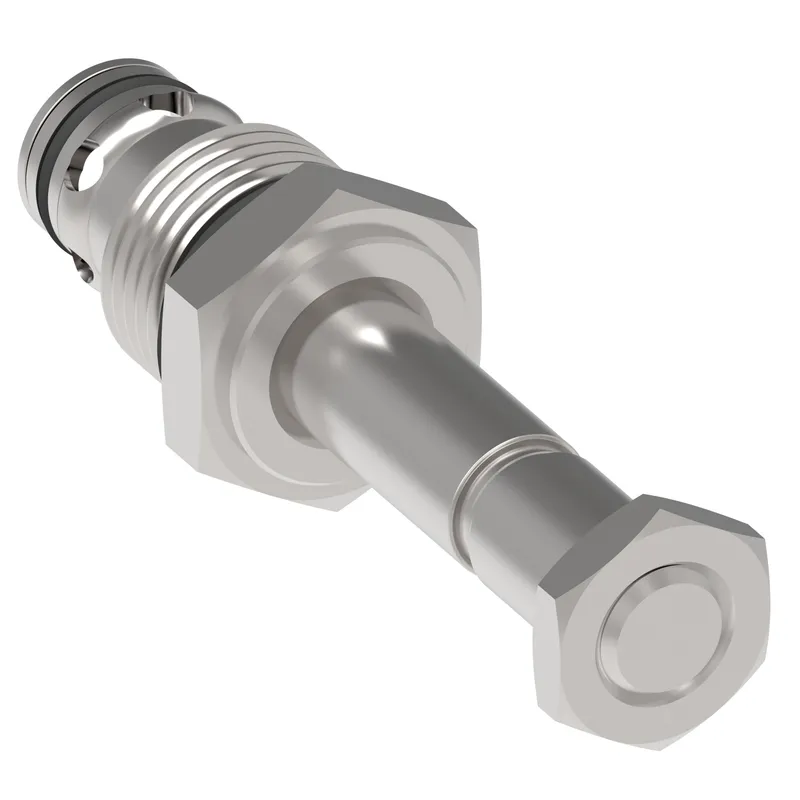

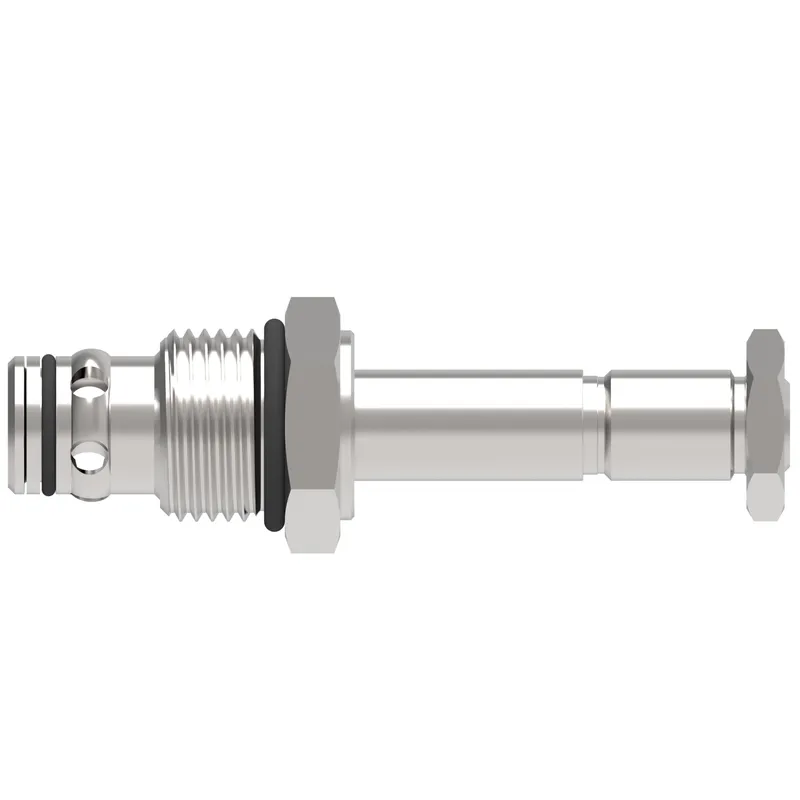

Danfoss SV13-20-O-P-0-00, SV13-20-O-P-0-00, manufacturer part number 02-177086. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Brand	Vickers by Danfoss
Cavity	C-20-2
Coil series	H Series
Coil termination	None
Diode	No
Flow rate GPM	60.00
Flow rate LPM	230.000
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Solenoid Valve
Housing	No
Installation type	Screw-in Cartridge
Leakage	5 drops/min
Model Code 1	SV13-20-O-P-0-00
Number of valve ports	2
Operating temperature	-40 C to 120 C (-40 to 248 F)
Operation	Electrically operated
Override type	Push Type
Port type	Cartridge Only
Pressure rating BAR	350.00
Pressure rating PSI	5000.00
Product height in	1.920
Product height mm	48.768
Product length in	4.770
Product length mm	121.158
Product width in	1.530
Product width mm	38.862 mm
Recommended filtration level	18/16/13
Seal type	Buna-N
Special features	None
Style	2-Way, 2-Position, Poppet, NO, Poppet
Torque into aluminium cavity	128-155 Nm
Torque into steel cavity	163-183 NM
Working pressure max BAR	350.00
Working pressure max PSI	5000.00
