Cartridge valves Parts
Browse Subcategories
Compare Cartridge valves
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Model Code 1 | Product height in | Product length in | Product length mm | Product width in |
|---|---|---|---|---|---|

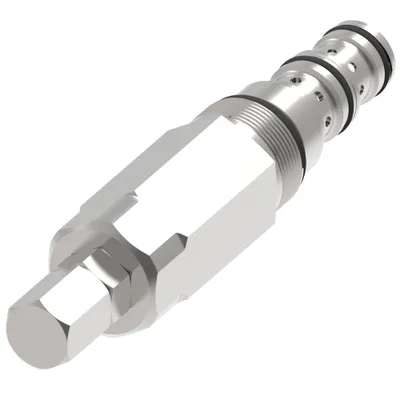

| 02-200198 | PSV2-8-C-0-13-13 | 0.870 | 4.630 | 117.602 | 0.870 |

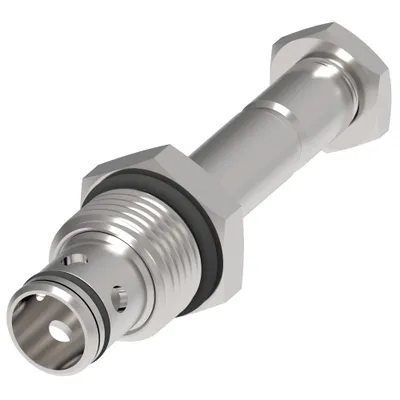

| 02-200192 | SV4B-12-3P-0-00 | 1.400 | 6.000 | 152.400 | 1.410 |

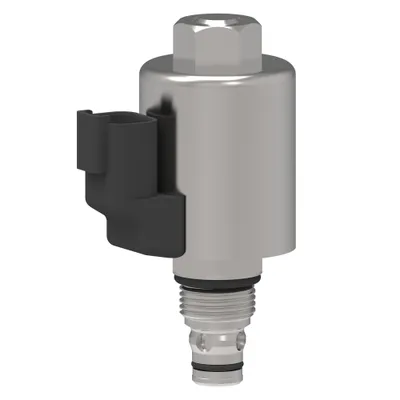

| 02-200163 | SV5-8-O-P-0-12B-N-S | 1.640 | 3.090 | 78.486 | 1.250 |

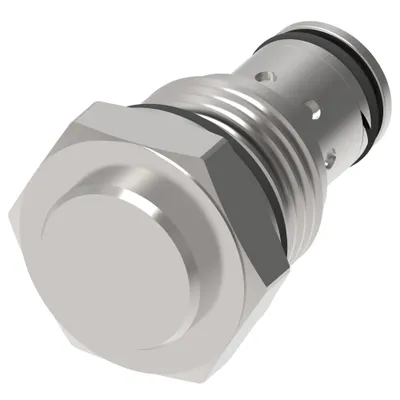

| 02-200151 | CV11-16-P-0-50 | 1.500 | 2.260 | 57.404 | 1.500 |

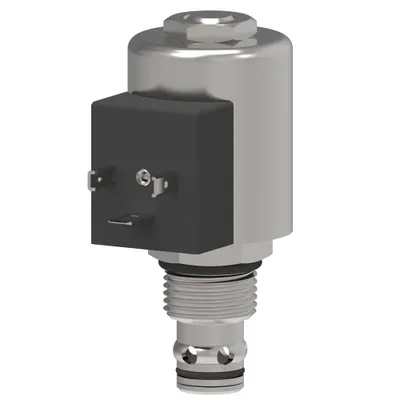

| 02-200110 | SV13-16-V-C-0-24D-G-H | 1.920 | 4.280 | 108.712 | 1.530 |

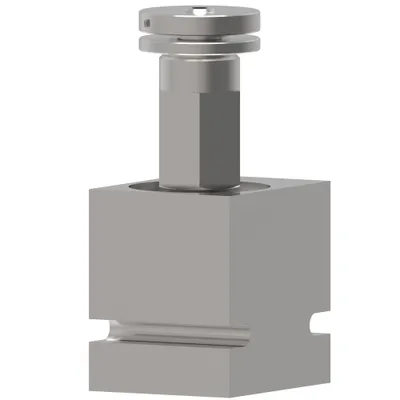

| 02-200102 | FAR1-12-K-A-12T | 6.150 | 3.500 | 88.900 | 2.000 |

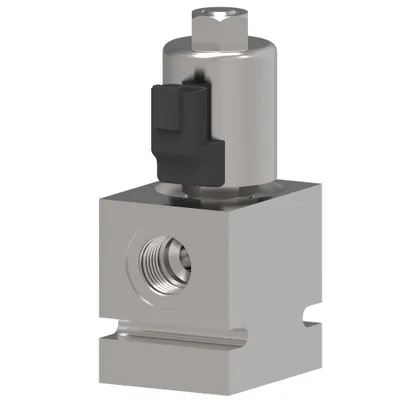

| 02-200090 | SV1-10-4-6T-12B-N | 5.750 | 3.000 | 76.200 | 2.000 |

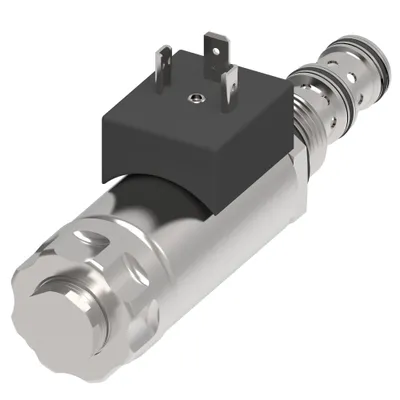

| 02-200087 | EFV1-12-N-C-B-0-0-24D-G-E | 2.630 | 6.000 | 152.400 | 1.740 |

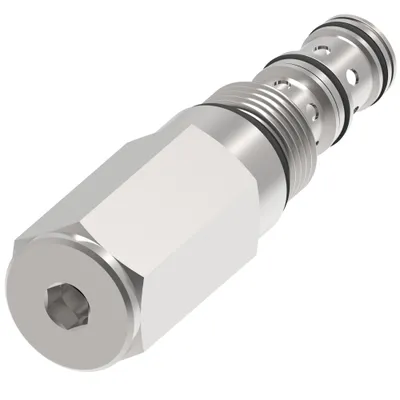

| 02-200084 | PRV12-10-I-0-50-XXX | 1.000 | 3.870 | 98.298 | 1.000 |

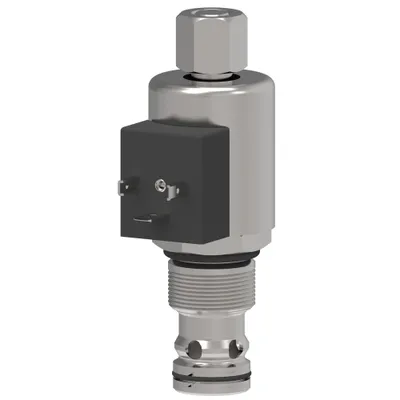

| 02-200069 | SV3-12-O-P-0-12D-G | 1.920 | 4.620 | 117.348 | 1.530 |
| 02-200063 | SV9-8-F-M-0-12D-G-P | 1.640 | 6.860 | 174.244 | 1.250 |

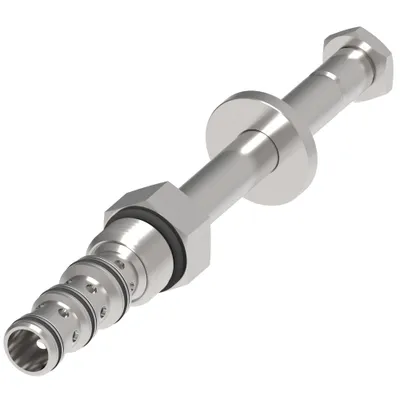

| 02-200059 | SV9-10-D-0-12B-F | 1.000 | 7.000 | 177.800 | 1.000 |

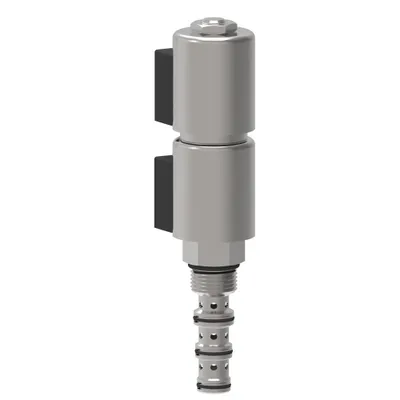

| 02-200058 | SV9-10-N-A-0-00-12D-Q-A | 1.000 | 7.000 | 177.800 | 1.000 |
| 02-200055 | SBV11-12-V-C-0-24D-G-H | 1.920 | 4.130 | 104.902 | 1.530 |

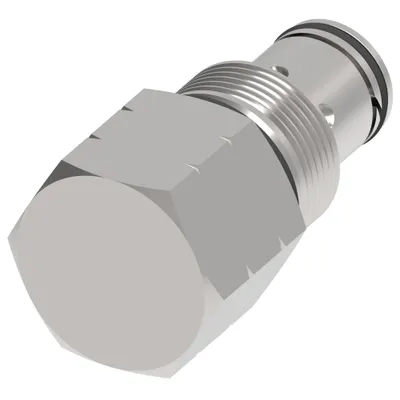

| 02-200043 | FR5-10-F-0-1.5 | 1.000 | 2.070 | 52.578 | 1.000 |

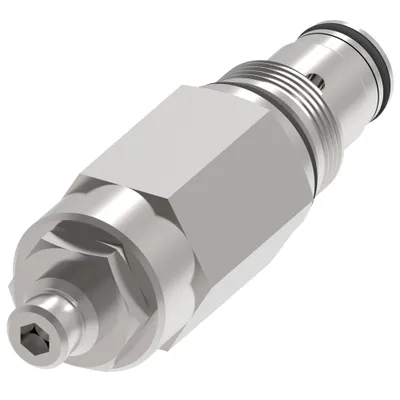

| 02-200039 | FAR1-16-V-S-0 | 1.500 | 4.940 | 125.476 | 1.500 |

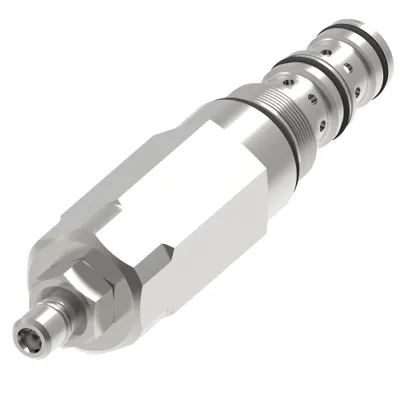

| 02-199996 | PSV2-8-S-0-13-13 | 0.870 | 4.630 | 117.602 | 0.870 |

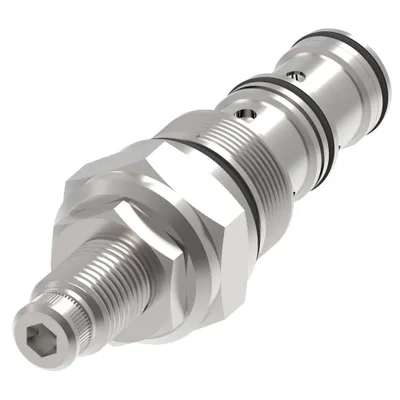

| 02-199977 | PUV3-10-S-0-75-30-23.5 | 1.000 | 3.340 | 84.836 | 1.000 |
| 02-199974 | SV9-8-V-E-M-0-00 | 1.640 | 6.860 | 174.244 | 1.250 |

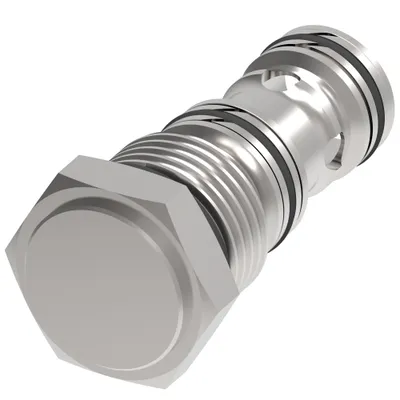

| 02-199941 | POC1-10-V-F-0-075 | 1.000 | 2.170 | 55.118 | 1.000 |

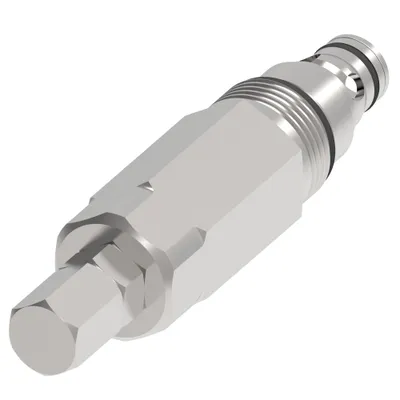

| 02-199940 | — | 0.870 | 4.110 | 104.394 | 0.870 |

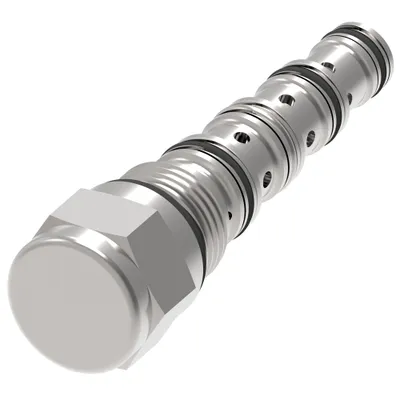

| 02-199935 | — | 1.870 | 4.710 | 119.634 | 1.870 |
| 02-199888 | SV2-20-C-R-0-24D-G | 1.930 | 4.750 | 120.650 | 1.530 |

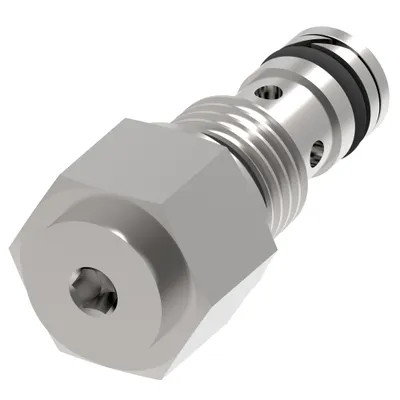

| 02-199885 | CV3-4-B-0-5 | 0.560 | 1.380 | 35.052 | 0.560 |
