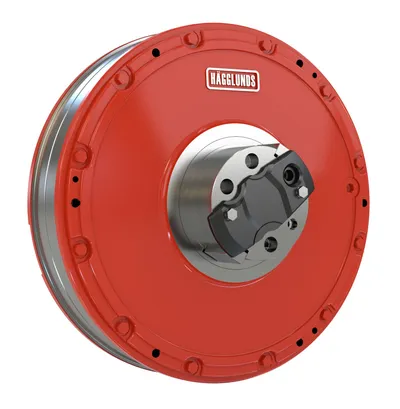

Hägglunds Viking Parts
























Compare Hägglunds Viking
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Displacement [cm³/rev] | Specific Torque [Nm/bar] | Max speed [rpm] | Distributor | Weight [kg] |
|---|---|---|---|---|---|
| R939000470 | 11080 | 176 | 120 | Severe temp-shocks | 750 |
| R939000472 | 11080 | 176 | 120 | Normal | 750 |
| R939000469 | 11080 | 176 | 120 | Normal | 710 |
| R939000255 | 9240 | 147 | 145 | Extremly low speed | 520.01 |
| R939000253 | 9240 | 147 | 145 | Extremly low speed | 520.01 |
| R939000261 | 9240 | 147 | 145 | Severe temp-shocks | 520.01 |
| R939000260 | 9240 | 147 | 145 | Severe temp-shocks | 585 |
| R939000254 | 9240 | 147 | 145 | Normal | 520.01 |
| R939000252 | 9240 | 147 | 145 | Normal | 585 |
| R939000279 | 6790 | 108 | 170 | Extremly low speed | 520.01 |
| R939000277 | 6790 | 108 | 170 | Extremly low speed | 583 |
| R939000285 | 6790 | 108 | 170 | Severe temp-shocks | 520.01 |
| R939000278 | 6790 | 108 | 170 | Normal | 585 |
| R939000276 | 6790 | 108 | 170 | Normal | 585 |
| R939000291 | 4710 | 75 | 200 | Extremly low speed | 520.01 |
| R939000289 | 4710 | 75 | 200 | Extremly low speed | 520.01 |
| R939000297 | 4710 | 75 | 200 | Severe temp-shocks | 520.01 |
| R939000296 | 4710 | 75 | 200 | Severe temp-shocks | 520.01 |
| R939000290 | 4710 | 75 | 200 | Normal | 520.01 |
| R939000288 | 4710 | 75 | 200 | Normal | 585 |
| R939000267 | 3325 | 53 | 200 | Extremly low speed | 520.01 |
| R939000265 | 3325 | 53 | 200 | Extremly low speed | 520.01 |
| R939000273 | 3325 | 53 | 200 | Severe temp-shocks | 520.01 |
| R939000272 | 3325 | 53 | 200 | Severe temp-shocks | 520.01 |
Common to all listed parts
| Product family | Hägglunds Viking |
| Max pressure [bar] | 320 |
| Mounting alternative (rotating part) | Metric |
| Mounitng alternative (stationary part) | Key (44/64-series) |
| Internal displacement shift valve | No valve |
| Direction of rotation | Clockwise/Counter-clockwise |
