Thermoplastic hydraulic hose and fittings Parts

Danfoss

3TR7-04-M0076

HOSE-SYN, 3TR7, -4, 76M, RL, R7,BK

Danfoss

3TR7-04-BULK

HOSE-SYN, 3TR7, -4, R7,BK

Danfoss

3TR7-04-500RL

HOSE,THERMO 100R7 BLACK

Danfoss

3TR7-04-4-250R

Hose thermo 100R7 250Ft QUAD CONTD Reel

Danfoss

3TR7-04-250BX

HOSE-SYN, 3TR7, -4, 250FT, BX, R7,BK

Danfoss

3TR7-04-250BC

Danfoss

3TR7-04-2-250BX

HOSE-SYN, 3TR7, -4, 250FT, BX, R7,BK

Danfoss

3TR7-04-050BX

HOSE,THERMO 100R7 BLACK

Danfoss

3TR7-03-M0076C

HOSE-SYN, 3TR7, -3, 76M, RL, R7,BK

Danfoss

3TR7-03-M0076

HOSE-SYN, 3TR7, -3, 76M, RL, R7,BK

Danfoss

3TR7-03-500RL

HOSE,THERMO 100R7 BLACK 500' REEL

Danfoss

3TR7-03-500R

HOSE THERMO 100R7 500FT Reel Cont

Danfoss

3TR7-03-250BX

HOSE-SYN, 3TR7, -3, 250FT, BX, R7,BK

Danfoss

3TR7-03-250BC

Danfoss

3TR7-03-050BX

HOSE,THERMO 100R7 BLACK 50 BOX CONTINU

Danfoss

3TR7-03-050BC

HOSE, THERMO, SYNFLEX 100R7 50 FT BOX

Danfoss

3TR7-03

HOSE,THERMO 100R7 BLACK

Danfoss

3TR7-02-M0076C

HOSE-SYN, 3TR7, -2, 76M, RL, R7,BK

Danfoss

3TR7-02-M0076

HOSE-SYN, 3TR7, -2, 76M, RL, R7,BK

Danfoss

3TR7-02-500RL

Hose, thermo, Synflex 100R7 500 FT Reel

Danfoss

3TR7-02-500R

HOSE,THERMO 100R7 BLACK 500'REEL

Danfoss

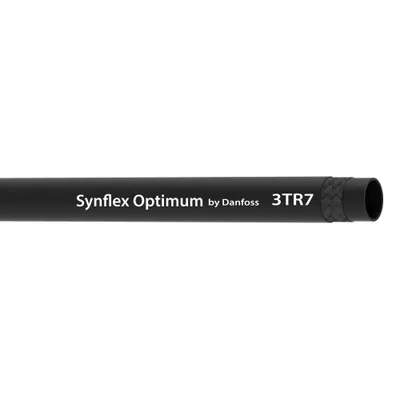

3TR7-02-250BX

HOSE-SYN, 3TR7, -2, 250FT, BX, R7,BK

Danfoss

3TR7-02-250BC

Danfoss

3TR7-02-1000RC

HOSE THERMO 100R7 BLACK 1000 PER RL

Compare Thermoplastic hydraulic hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Bend radius min (inch)	Bend radius min (mm)	Inside diameter (inch)	Inside diameter (mm)	Outside diameter (mm)
3TR7-04-M0076	1.250	31.800	0.25	6.40	12.50
3TR7-04-BULK	1.250	31.800	0.25	6.40	12.50
3TR7-04-500RL	1.250	31.800	0.25	6.40	—
3TR7-04-4-250R	1.250	31.800	0.25	6.40	—
3TR7-04-250BX	1.250	31.800	0.25	6.40	12.50
3TR7-04-250BC	1.250	31.800	0.25	6.40	12.45
3TR7-04-2-250BX	1.250	31.800	0.25	6.40	12.50
3TR7-04-050BX	1.250	31.800	0.25	6.40	—
3TR7-03-M0076C	0.750	19.000	0.19	4.80	10.80
3TR7-03-M0076	0.750	19.000	0.19	4.80	10.80
3TR7-03-500RL	0.750	19.000	0.19	4.80	10.80
3TR7-03-500R	0.750	19.000	0.19	4.80	10.80
3TR7-03-250BX	0.750	19.000	0.19	4.80	10.80
3TR7-03-250BC	0.750	19.000	0.19	4.80	9.70
3TR7-03-050BX	0.750	19.000	0.19	4.80	10.80
3TR7-03-050BC	0.750	19.000	0.19	4.80	—
3TR7-03	0.750	19.000	0.19	4.80	—
3TR7-02-M0076C	0.500	12.700	0.12	3.20	8.50
3TR7-02-M0076	0.500	12.700	0.12	3.20	8.50
3TR7-02-500RL	0.500	12.700	0.12	3.20	8.38
3TR7-02-500R	0.500	12.700	0.12	3.20	8.38
3TR7-02-250BX	0.500	12.700	0.12	3.20	8.50
3TR7-02-250BC	0.500	12.700	0.12	3.20	8.20
3TR7-02-1000RC	0.500	12.700	0.12	3.20	—

Common to all listed parts

Abrasion resistance	Standard
Color	Black
Cover material	Polyurethane (TPU)
Impulse cycle (cycles)	150000
Reinforcement material	Fabric
Series	3TR7 Series
Working pressure max (bar)	210
Working pressure max (psi)	3050
