Thermoplastic hydraulic hose and fittings Parts

Danfoss

3TR7-16-M0061C

HOSE-SYN, 3TR7, -16, 61M, RL, R7,BK

Danfoss

3TR7-16-M0061

HOSE-SYN, 3TR7, -16, 61M, RL, R7,BK

Danfoss

3TR7-16-500RL

HOSE,THERMO 100R7 BLACK

Danfoss

3TR7-16-300R

HOSETherm 100R7 BLK CONT LENGTH ON REEL

Danfoss

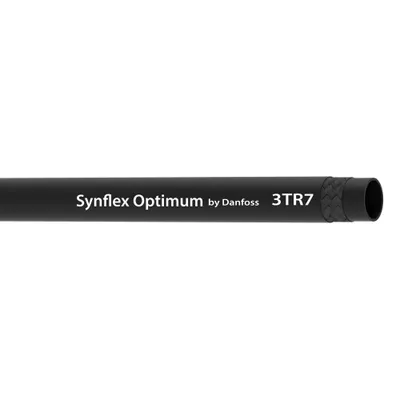

3TR7-16-200BX

HOSE-SYN, 3TR7, -16, 200FT, BX, R7,BK

Danfoss

3TR7-16-200BC

Danfoss

3TR7-16-050BX

Hose, Thermo, Synflex 100R7, 50 FT Box

Danfoss

3TR7-12-M0061C

HOSE-SYN, 3TR7, -12, 61M, RL, R7,BK

Danfoss

3TR7-12-M0061

HOSE-SYN, 3TR7, -12, 61M, RL, R7,BK

Danfoss

3TR7-12-500RL

HOSE,THERMO 100R7 BLACK

Danfoss

3TR7-12-250BX

HOSE,THERMO 100R7 BLACK 250 FT

Danfoss

3TR7-12-200BX

HOSE-SYN, 3TR7, -12, 200FT, BX, R7,BK

Danfoss

3TR7-12-200BC

Danfoss

3TR7-12-050BX

Hose, Thermo, Synflex 100R7, 50 FT Box

Danfoss

3TR7-10-M0076C

HOSE-SYN, 3TR7, -10, 76M, RL, R7,BK

Danfoss

3TR7-10-M0076

HOSE-SYN, 3TR7, -10, 76M, RL, R7,BK

Danfoss

3TR7-10-500RL

HOSE,THERMO 100R7 BLACK

Danfoss

3TR7-10-250BX

HOSE-SYN, 3TR7, -10, 250FT, BX, R7,BK

Danfoss

3TR7-10-250BC

Danfoss

3TR7-10-050BX

Hose, Thermo, Synflex 100R7, 50 FT Box

Danfoss

3TR7-10

Hose Thermo R7 Synflex Internal Use Only

Danfoss

3TR7-08-M0076C

HOSE-SYN, 3TR7, -8, 76M, RL, R7,BK

Danfoss

3TR7-08-M0076

HOSE-SYN, 3TR7, -8, 76M, RL, R7,BK

Danfoss

3TR7-08-C3

HOSE, THERMO Sample Hose Program

Compare Thermoplastic hydraulic hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Bend radius min (inch)	Bend radius min (mm)	Burst pressure (bar)	Burst pressure (psi)	Outside diameter (mm)
3TR7-16-M0061C	7.500	190.500	280	4000	33.70
3TR7-16-M0061	7.500	190.500	280	4000	33.70
3TR7-16-500RL	7.500	190.500	280	4000	33.78
3TR7-16-300R	7.500	190.500	280	4000	33.78
3TR7-16-200BX	7.500	190.500	280	4000	33.70
3TR7-16-200BC	7.500	190.500	280	4000	33.78
3TR7-16-050BX	7.500	190.500	280	4000	33.78
3TR7-12-M0061C	5.000	127.000	348	5000	26.40
3TR7-12-M0061	5.000	127.000	348	5000	26.40
3TR7-12-500RL	5.000	127.000	348	5000	26.42
3TR7-12-250BX	5.000	127.000	348	5000	26.42
3TR7-12-200BX	5.000	127.000	348	5000	26.40
3TR7-12-200BC	5.000	127.000	348	5000	26.42
3TR7-12-050BX	5.000	127.000	348	5000	—
3TR7-10-M0076C	4.000	101.600	421	6100	23.60
3TR7-10-M0076	4.000	101.600	421	6100	23.60
3TR7-10-500RL	4.000	101.600	421	6100	23.62
3TR7-10-250BX	4.000	101.600	421	6100	23.60
3TR7-10-250BC	4.000	101.600	421	6100	23.62
3TR7-10-050BX	4.000	101.600	421	6100	23.62
3TR7-10	4.000	101.600	421	6100	—
3TR7-08-M0076C	2.750	69.900	621	9000	20.80
3TR7-08-M0076	2.750	69.900	621	9000	20.80
3TR7-08-C3	2.750	69.900	621	9000	—

Common to all listed parts

Abrasion resistance	Standard
Color	Black
Conductivity	Conductive
Cover material	Polyurethane (TPU)
Impulse cycle (cycles)	150000
Reinforcement material	Fabric
Series	3TR7 Series
Working temperature max (C)	100
