Thermoplastic hydraulic hose and fittings Parts
Compare Thermoplastic hydraulic hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | EAN/UPC | Bend radius min (mm) | Inside diameter (mm) | Outside diameter (mm) | Tube wall thickness (inch) |
|---|---|---|---|---|---|
| 3TR7-02-050BX | 810075331349 | 12.700 | 3.20 | — | — |
| 3TR7-02-050BC | 810075331332 | 12.700 | 3.20 | 8.38 | 0.21 |
| 3TR7-02 | 810075331325 | 12.700 | 3.20 | 8.38 | 0.21 |
| 3TR18CT-10-500RL | — | 101.600 | 15.75 | 26.92 | 0.44 |

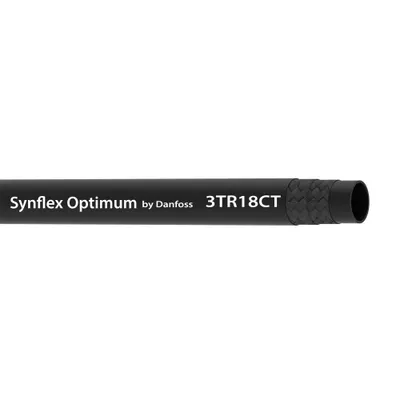

| 3TR18CT-10-250BX | 810903034220 | 101.600 | 15.90 | 26.80 | 0.16 |
| 3TR18CT-10-250BC | 810075330427 | 101.600 | 15.75 | 26.92 | 0.44 |
| 3TR18CT-10-050BX | — | 101.600 | 15.75 | 26.92 | 0.44 |
| 3TR18CT-08-C3 | 810903037948 | 69.850 | 12.70 | 21.59 | 0.35 |
| 3TR18CT-08-500RL | 810075330373 | 69.850 | 12.70 | 21.59 | 0.35 |
| 3TR18CT-08-3-500R | 810903034213 | 69.850 | 12.70 | 21.59 | 0.16 |
| 3TR18CT-08-3-250BX | 810903035722 | 69.900 | 12.70 | 21.60 | 0.16 |
| 3TR18CT-08-266R | 810075333763 | 69.850 | 12.70 | 21.59 | — |
| 3TR18CT-08-250BX | 810903033476 | 69.900 | 12.70 | 21.60 | — |
| 3TR18CT-08-250BC | 810903034206 | 69.850 | 12.70 | 21.59 | 0.16 |
| 3TR18CT-08-050BX | 810903039393 | 69.850 | 12.70 | 21.59 | 0.35 |
| 3TR18CT-06-500RL | 810903034183 | 50.800 | 9.65 | 16.76 | 0.16 |
| 3TR18CT-06-250BX | 810903034169 | 50.800 | 9.50 | 16.80 | — |
| 3TR18CT-06-250BC | 810903034152 | 50.800 | 9.65 | 16.76 | 0.16 |
| 3TR18CT-06-2-M076C | — | 50.800 | 9.50 | 16.80 | — |
| 3TR18CT-06-050BX | 810903039386 | 50.800 | 9.65 | 16.76 | 0.28 |
Common to all listed parts
| Burst pressure (psi) | 12200 |
| Color | Black |
| Working pressure max (bar) | 210 |
| Working pressure max (psi) | 3050 |
