Thermoplastic hydraulic hose and fittings Parts
Compare Thermoplastic hydraulic hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

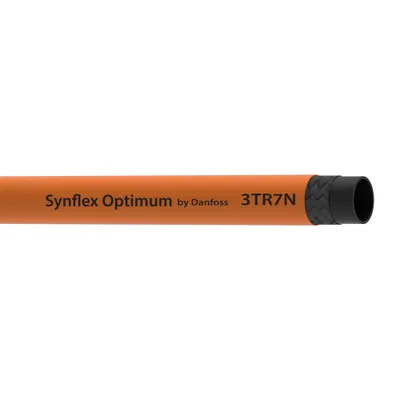

| MPN | Bend radius min (inch) | Bend radius min (mm) | Inside diameter (mm) | Outside diameter (mm) | Working pressure max (bar) |
|---|---|---|---|---|---|
| 3TR7N-12-2500R | 5.000 | 127.000 | 19.05 | 26.42 | 86 |
| 3TR7N-12-200BX | 5.000 | 127.000 | 19.00 | 26.40 | 87 |
| 3TR7N-12-200BC | 5.000 | 127.000 | 19.05 | 26.42 | 86 |
| 3TR7N-10-M0076C | 4.000 | 101.600 | 16.00 | 23.60 | 105 |
| 3TR7N-10-M0076 | 4.000 | 101.600 | 16.00 | 23.60 | 105 |
| 3TR7N-10-500RL | 4.000 | 101.600 | 16.00 | 23.62 | 105 |
| 3TR7N-10-250BX | 4.000 | 101.600 | 16.00 | 23.60 | 105 |
| 3TR7N-10-250BC | 4.000 | 101.600 | 16.00 | 23.62 | 105 |
| 3TR7N-10-050BX | 4.000 | 101.600 | 16.00 | 23.62 | 105 |
| 3TR7N-08-M0076C | 2.750 | 69.900 | 12.70 | 20.80 | 140 |
| 3TR7N-08-M0076 | 2.750 | 69.900 | 12.70 | 20.80 | 140 |
| 3TR7N-08-C3 | 2.750 | 69.850 | 12.70 | 20.83 | 141 |
| 3TR7N-08-BULK | 2.750 | 69.900 | 12.70 | 20.80 | 140 |
| 3TR7N-08-250BX | 2.750 | 69.900 | 12.70 | 20.80 | 140 |
| 3TR7N-08-250BC | 2.750 | 69.900 | 12.70 | 20.80 | 140 |
| 3TR7N-06-M0076 | 2.000 | 50.800 | 9.80 | 16.50 | 157 |
| 3TR7N-06-3-250R | 0.100 | 2.540 | 9.91 | 16.51 | 159 |
| 3TR7N-06-250BXVW | 2.000 | 50.800 | 9.80 | 16.50 | 157 |
| 3TR7N-06-250BX | 2.000 | 50.800 | 9.80 | 16.50 | 157 |
Common to all listed parts
| Construction | 1 Ply braid |
| Cover material | Polyurethane (TPU) |
| Series | 3TR7N Series |
| Working temperature max (C) | 100 |
| Working temperature max (F) | 212.0 |
| Working temperature min (C) | -40 |
| Working temperature min (F) | -40.0 |
