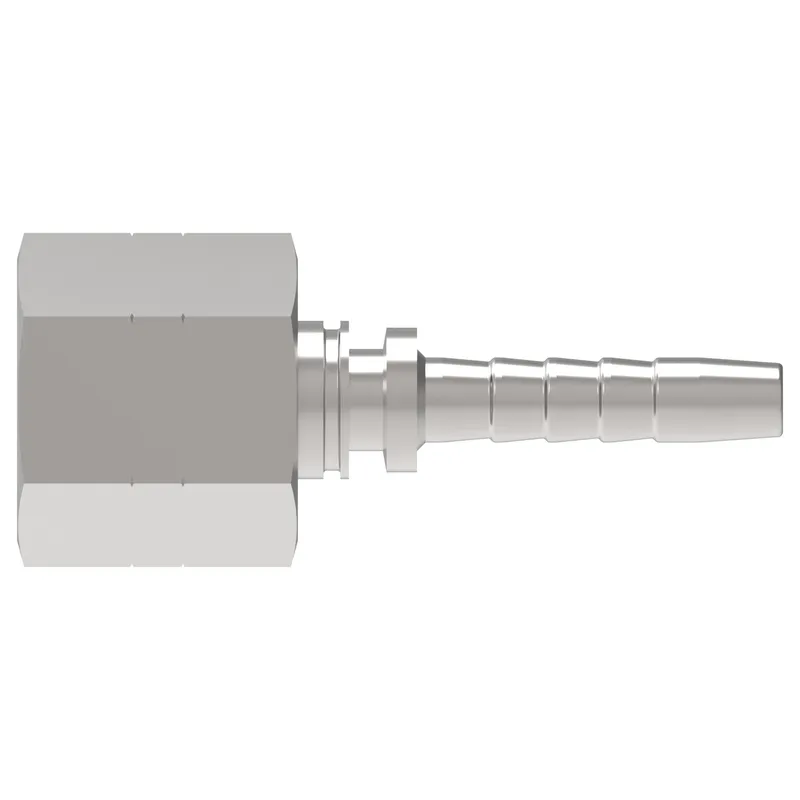

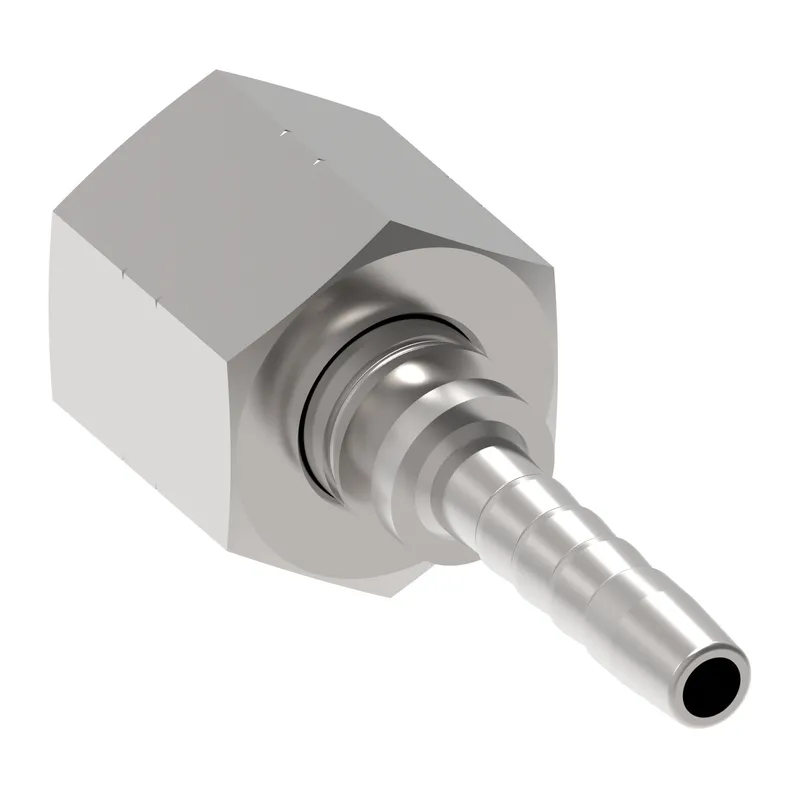

HOSE NIPPLE ASSY,2P/28,JIC-F/32,CS,STR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 26711-32-28TZ be shipped?
26711-32-28TZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 26711-32-28TZ in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 26711-32-28TZ and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 26711-32-28TZ, subject to availability and destination.
Danfoss HOSE NIPPLE ASSY,2P/28,JIC-F/32,CS,STR, manufacturer part number 26711-32-28TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 3.740 |
| A dimension MM | 95.000 |
| Angle shape | Straight |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 1.750 |
| Compatible hose ID MM | 44.500 |
| Construction Style | Crimp |
| End Type 1 | Female 37 degree swivel |
| Finish plating | Zinc plating |
| Hex size 2 IN | 2.950 |
| Hex size 2 MM | 74.930 |
| Hose cut off factor IN | 1.062 |
| Hose cut off factor MM | 27.000 |
| Hose size | -32 |
| Inside diameter IN | 1.535 |
| Inside diameter MM | 39.000 |
| Product height in | 3.400 |
| Product height mm | 86.360 |
| Product length in | 4.665 |
| Product length mm | 118.491 |
| Product material | Carbon steel |
| Product width in | 2.950 |
| Product width mm | 74.93 |
| Series | Winner 2-Piece |
| Thread sealant | No |
| Working temperature max C | 100 |
| Working temperature max F | 212 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
More Danfoss (Drives) parts

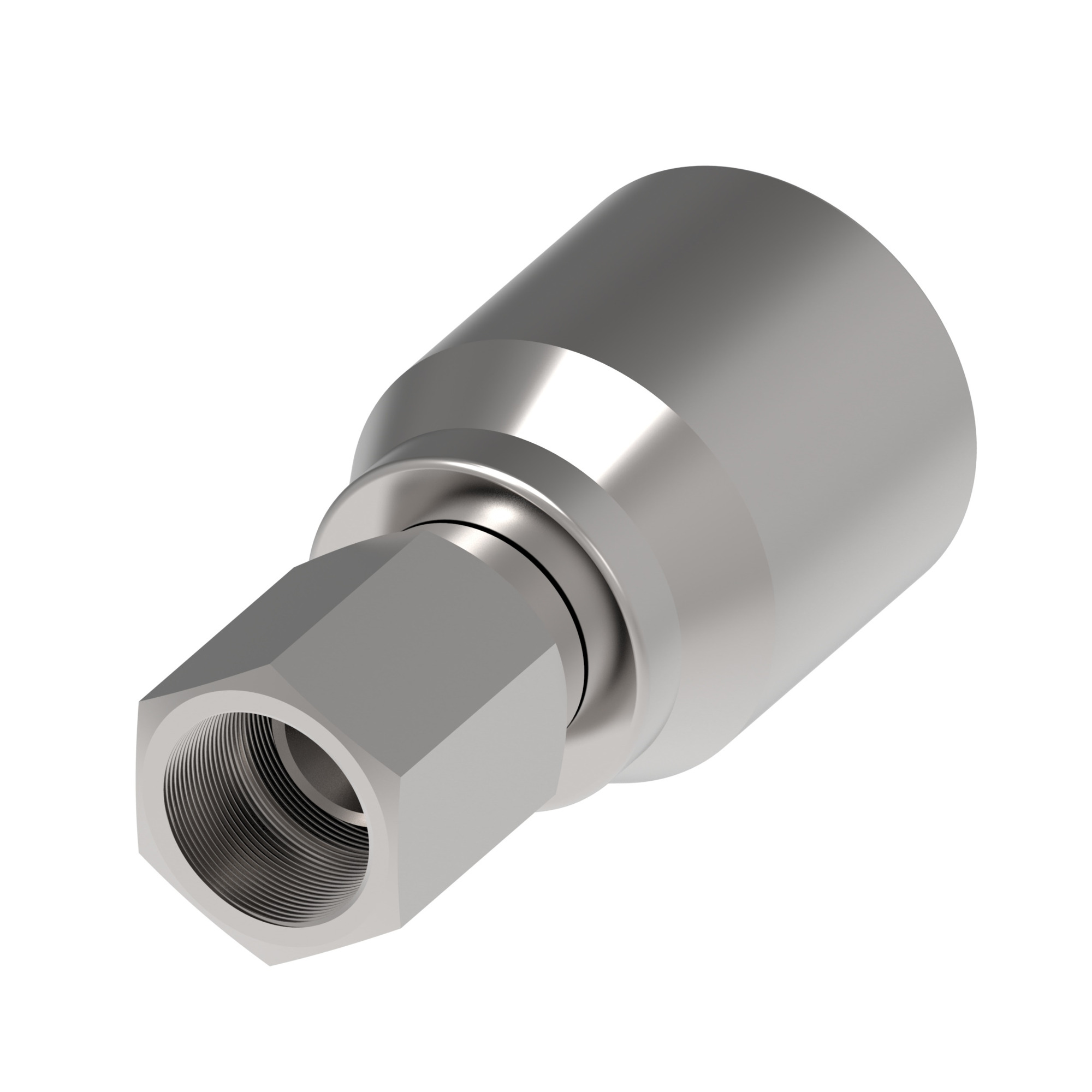

Available on requestHOSE NIPPLE ASSY,2P/24,JIC-F/24,CS,STR
Available on requestHOSE NIPPLE ASSY,2P/24,JIC-F/24,AN,STR
Available on requestHOSE NIPPLE ASSY,2P/24,JIC-F/24,AN,STR
Available on requestHOSE NIPPLE ASSY,2P/24,JIC-F/32,CS,STR
Available on requestHOSE NIPPLE ASSY,2P/29,JIC-F/32,CS,STR
Available on requestHOSE NIPPLE ASSY,2P/32,JIC-F/32,AN,STR

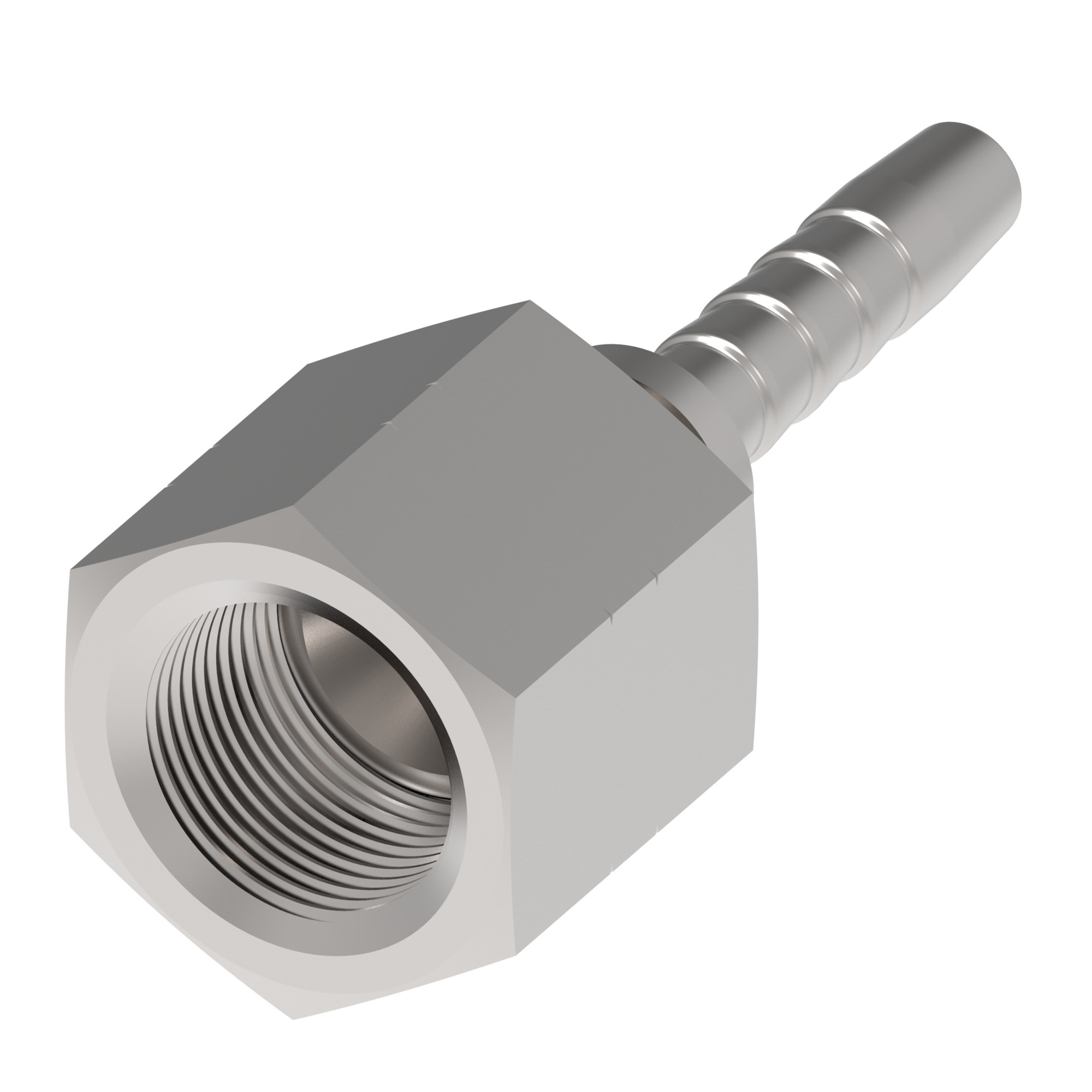

Available on requestHOSE NIPPLE ASSY,2P/32,JIC-F/32,CS,STR
