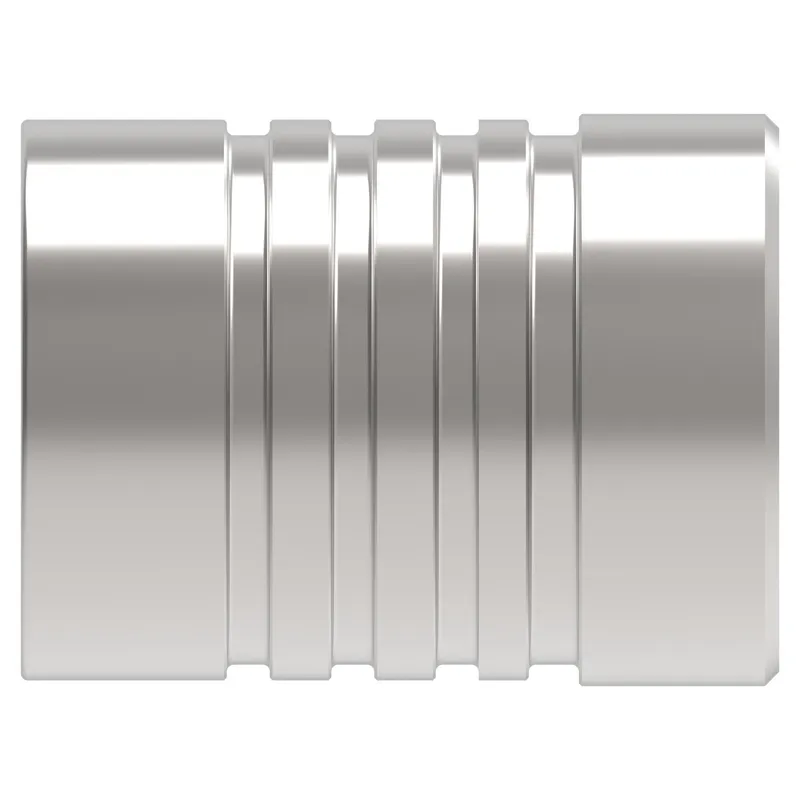

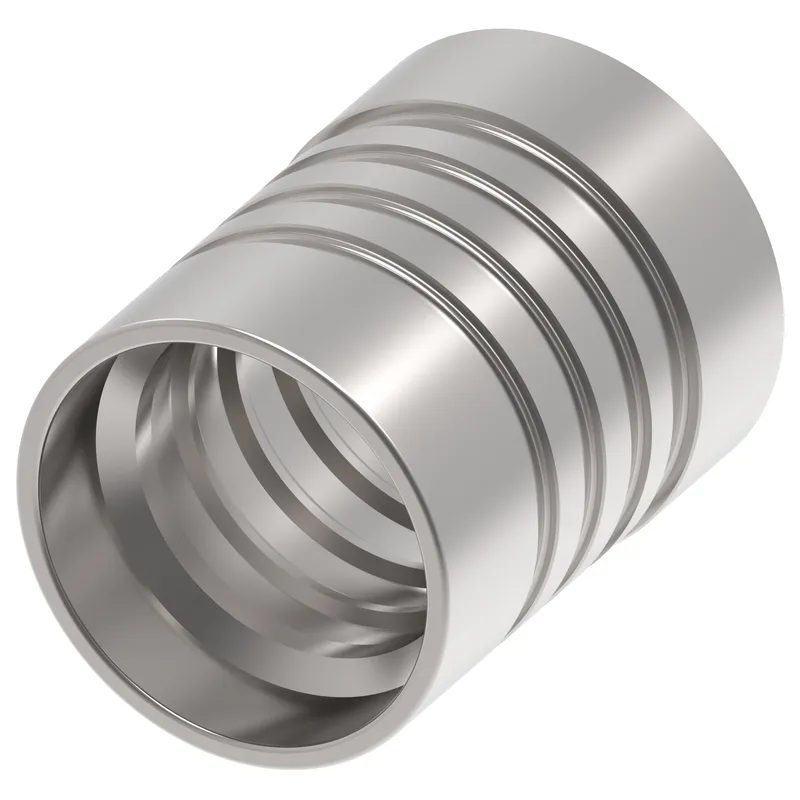

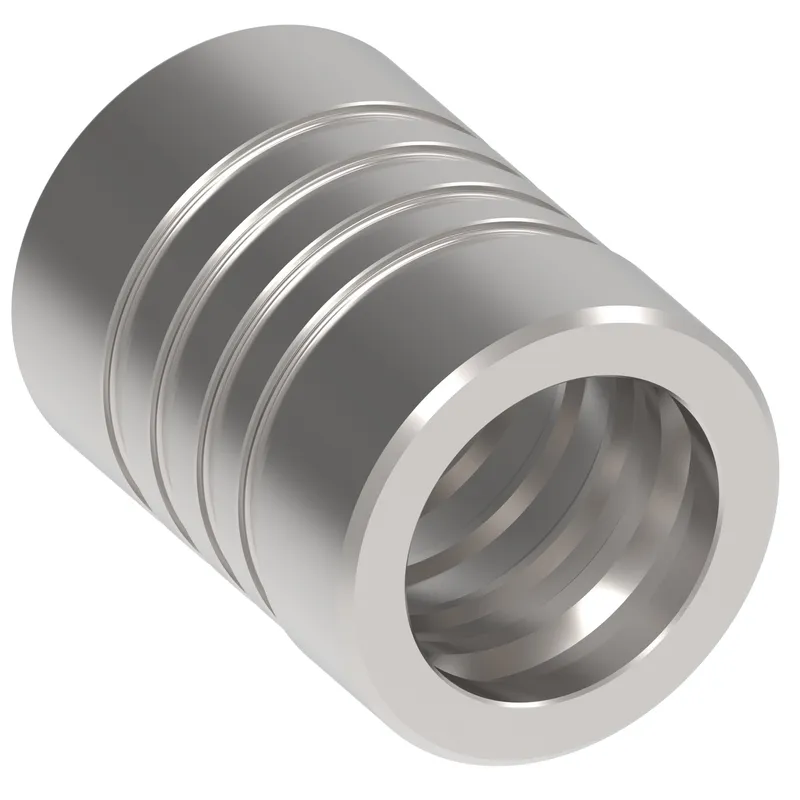

Danfoss 00621-20Z

SOCKET-PERM, 2P/20, CS

MPN: 00621-20Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 00621-20Z?

Danfoss SOCKET-PERM, 2P/20, CS, manufacturer part number 00621-20Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.480
A dimension MM	88.500
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	1.250
Compatible hose ID MM	31.800
Construction Style	Crimp
Finish plating	Zinc plating
Hex size 1 IN	0.000
Hex size 1 MM	0.000
Hex size 2 IN	0.000
Hose size	-20
Inside diameter IN	1.7000
Inside diameter MM	43.4000
Product height in	2.362
Product height mm	60.000
Product length in	3.484
Product length mm	88.500
Product material	Carbon steel
Product width in	2.362
Product width mm	60.000 mm
Series	Winner 2-Piece
Thread sealant	No
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
