Braided hose and fittings Parts

Danfoss

12211-08-08Z

HOSE NIPPLE ASSY,2P/08,BSPP-M/08,CS,STR

Danfoss

12211-06-06Z

HOSE NIPPLE ASSY,2P/06,BSPP-M/06,CS,STR

Danfoss

12211-04-04Z

HOSE NIPPLE ASSY,2P/04,BSPP-M/04,CS,STR

Danfoss

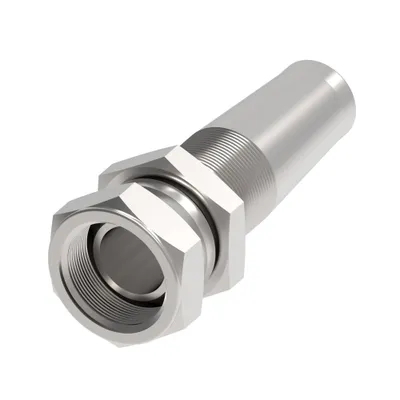

11.420-8-6

HOSE NIPPLE ASSY, SR/06, BF/08, CS, STR

Danfoss

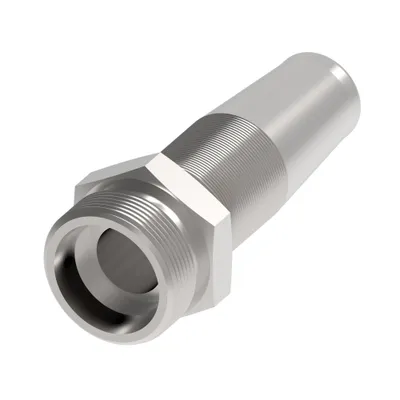

11.013-12-6

HOSE NIPPLE ASSY,SR/06,DKL-M/12,CS,STR

Danfoss

10411-22-08Z

HOSE NIPPLE ASSY,2P/08,DKOL/22,CS,STR

Danfoss

11.545-20-20

HOSE NIPPLE, SR/20, BSPT-M/20, CS, STR

Danfoss

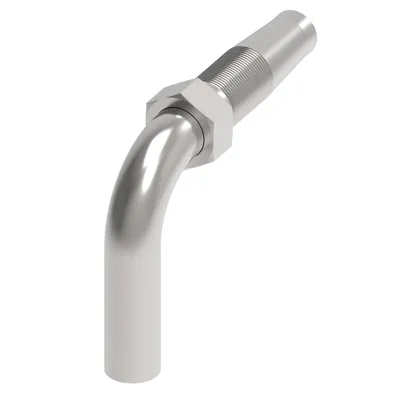

11.388-12-8

HOSE NIPPLE ASSY,SR/08,STPIPE/12,CS,90D

Danfoss

11.143-4-4

HOSE NIPPLE ASSY, SR/04, BF/04, CS, 45D

Danfoss

11.139-4-4

HOSE NIPPLE ASSY, SR/04, BF/04, CS, STR

Danfoss

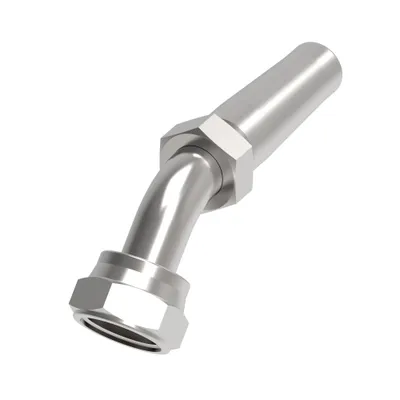

11.045-4-4

HOSE NIPPLE ASSY, SR/04, BF/04, CS, 45D

Danfoss

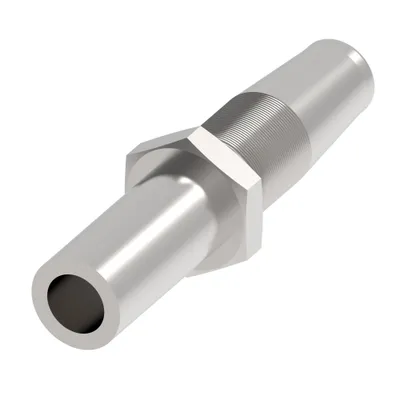

11.008-8-4

HOSE NIPPLE ASSY,SR/04,STPIPE/08,CS,STR

Danfoss

11.005-10-4

HOSE NIPPLE ASSY,SR/04,STPIPE/10,CS,STR

Danfoss

10ZR-610

Hose End (perm) StainlessStrF SAE37 Swvl

Danfoss

10Z-S72-BG

Hose End (perm) 1S/1R

Danfoss

10Z-S72

Hose End (perm) 1S/1R Str F. ORS Swvl

Danfoss

10Z-S70-BG

Hose End (perm) 1S/1R

Danfoss

10Z-S68-BG

Hose End (perm) 1S/1R

Danfoss

10Z-S68

Hose End (perm) 1S/1R Str F. ORS Swvl

Danfoss

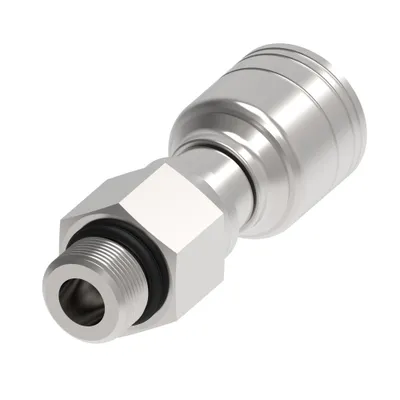

10Z-R08-BG

Ftng (perm), SAE ORB

Danfoss

10Z-R08

Ftng (perm), SAE ORB STR MALE SWIVEL

Danfoss

10Z-P60

Ftng (perm), BSPP MALE RIGID

Danfoss

10Z-P12-BG

Hose End (perm) 1S/1R

Danfoss

10Z-P10-BG

Ftng (perm),SAE M ORB

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Hex size 1 IN	Hex size 1 MM	Hose cut off factor IN	Hose cut off factor MM	Inside diameter IN
12211-08-08Z	1.063	27.000	1.279	32.500	0.393
12211-06-06Z	0.945	24.000	1.023	26.000	0.275
12211-04-04Z	0.748	19.000	0.984	25.000	0.157
11.420-8-6	1.060	26.924	1.318	33.500	0.314
11.013-12-6	0.870	22.098	1.920	48.900	0.310
10411-22-08Z	—	—	1.020	26.000	0.390
11.545-20-20	1.811	46.000	1.921	48.810	1.042
11.388-12-8	—	—	1.654	42.000	0.221
11.143-4-4	0.550	13.970	2.066	52.500	0.157
11.139-4-4	0.669	17.000	1.791	45.500	0.157
11.045-4-4	0.669	17.000	1.437	36.500	0.126
11.008-8-4	0.470	11.938	1.680	42.900	0.150
11.005-10-4	0.750	19.050	1.680	42.900	0.230
10ZR-610	1.000	25.4	1.610	40.894	0.500
10Z-S72-BG	1.380	35.1	1.630	41.402	0.500
10Z-S72	1.380	35.1	1.630	41.402	0.500
10Z-S70-BG	0.940	23.9	1.610	40.894	0.480
10Z-S68-BG	0.940	23.9	1.510	38.354	0.380
10Z-S68	0.940	23.9	1.510	38.354	0.380
10Z-R08-BG	1.000	25.4	1.860	47.244	0.500
10Z-R08	1.000	25.4	1.860	47.244	0.500
10Z-P60	—	—	1.250	31.750	0.500
10Z-P12-BG	1.250	31.8	1.230	31.242	0.500
10Z-P10-BG	1.000	25.4	1.320	33.528	0.500
